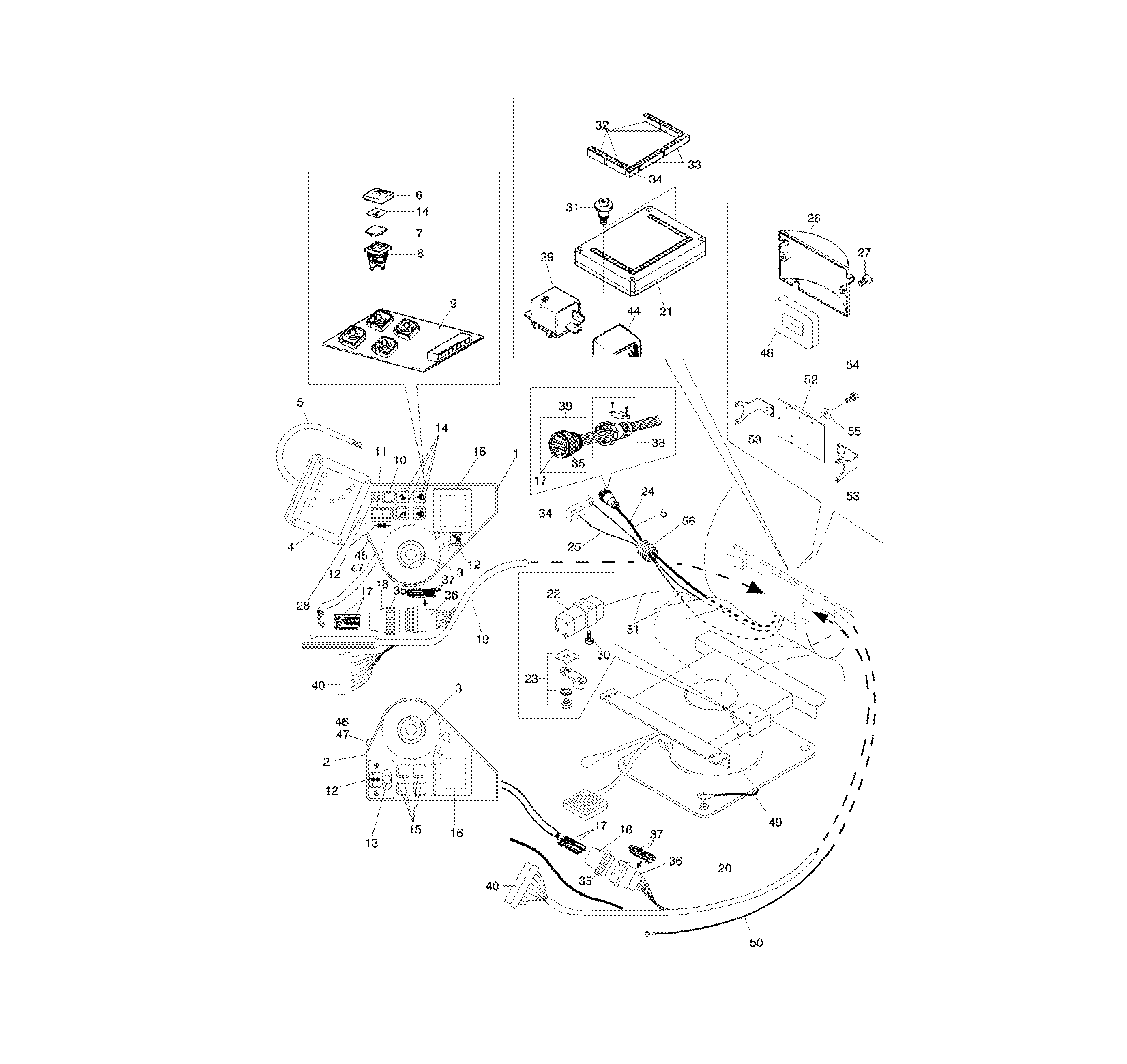

ELECTRICAL SYSTEM SEAT ELECTRICALS F054236 31 8 902452 [902452]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F024913	1	HOUSING	-
2	F024912	1	HOUSING	-
3	F054619	2	JOYSTICK	-
4	F056673	1	DISPLAY	-
5	F043711	1	CABLE	-
6	F025502	4	HOSE GUARD	-
7	F025504	4	PLATE	-
8	F025503	4	FRAME	-
9	F024923	1	CIRCUIT BOARD	-
10	F025501	1	PUSH BUTTON	-
11	F008086	1	SWITCH	-
12	F040115	1	TAPE KIT	-
13	F044833	1	MINI CONTROL	-
14	F039083	1	TAPE KIT	-
15	F025752	4	COVER	-
16	F013126	2	SUPPORT	-
17	F025253	1	CONNECTOR	-
18	F015262	2	Electrical Connector Assy	-
19	F038939	1	CABLE H, LEVER RIGHT	-
20	F024965	1	CABLE	-
21	F024101	1	CHAIR MODULE	-
22	F002820	1	SWITCH-LIMIT	-
23	F025751	1	GUIDE LEVER	-
24	F038948	1	CABLE, SEAT	-
25	F043799	1	CABLE, CAN-BUS	-
26	F025933	1	COVER	-
27	F003715	2	SCREW	-
28	F025934	1	BRACKET	-
29	F005313	1	Audible Warning Alarm	-
30	F003709	2	SCREW	-
31	F026187	2	BRACKET	-
32	F025214	4	CONNECTOR	-
33	F025215	2	CONNECTOR	-
34	F025213	2	CONNECTOR	-
35	F033457	3	COUPLING NUT	-
36	F016409	2	CONNECTOR HOUSING	-
37	F017790	1	CONNECTOR PIN	-
38	F035440	1	CABLE CLAMP	-
39	F015261	1	CONNECTOR HOUSING	-
40	F034536	2	CONNECTOR	-
44	F038979	1	CABLE HARNESS	-
45	F045629	1	BOTTOM PLATE	-
46	F045627	1	BOTTOM PLATE	-
47	F003711	4	SCREW	-
48	F047482	1	RUBBER PLATE	-
49	F038984	1	CABLE	-
50	F040823	2	CABLE	-
51	F038982	1	CABLE	-
52	F025932	1	BRACKET	-
53	F028108	2	BRACKET	-
54	F003518	3	SCREW	-
55	F044882	3	WASHER	-
56	F040725	1	PROTECTION TUBE	-
-	F028058	1	CONTROL UNIT KIT	-

ELECTRICAL SYSTEM SEAT ELECTRICALS F054236 31 8 902452 [902452]
