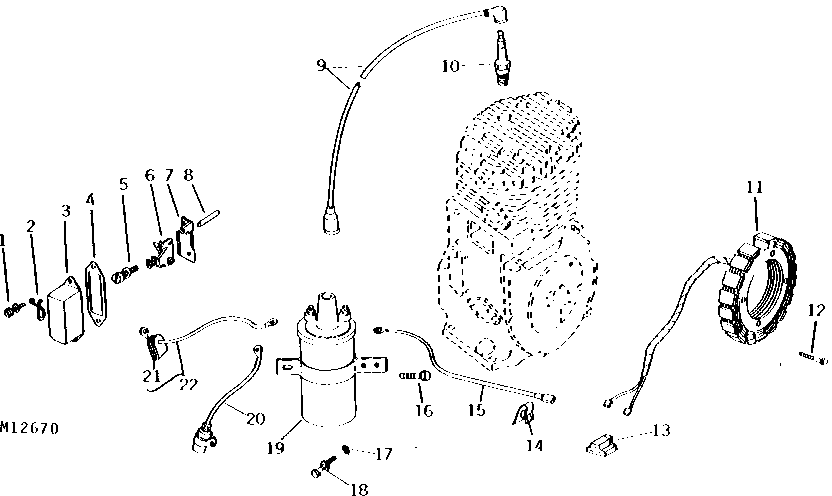

IGNITION SYSTEM AND ALTERNATOR [B01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H295	4	Lock Washer	0.190"
1	21H1300	4	SCREW	0.190" X 3/8"
2	M46763	1	CLIP	-
3	M43560	1	COVER	-
4	M84723	1	GASKET	(SUB FOR M42007)
5	21H1292	1	SCREW	0.164" X 1/4"
5	12H290	1	Washer	0.164"
6	AM31140	1	BREAKER POINTS	(SUB AM35000)
7	M42009	1	BRACKET	(SUB AM35000)
8	M81481	1	ROD	(SUB FOR M43161)
9	HE167-1602	1	CABLE	(SUB FOR AM35889 AND AM32072)
10	AM514T	1	SPARK PLUG	(CHAMPION H-10)
10	AT17208	1	SPARK PLUG	(PRESTOLITE 14-L7B)
10	AM1535T	1	SPARK PLUG	(AC 45L)
11	AM33426	1	Stator	(15 AMP)
11	AM32334	1	STATOR	(10 AMP)
12	21H1312	4	SCREW	0.190" X 1"
12	12H295	4	Lock Washer	0.190"
13	M44148	1	ELECTRICAL CONNECTOR ASSY	(THREE WIRE)
14	M45700	1	Clip	-
15	AM37239	1	KIT	(SUB FOR AM33094 AND AM35875)
16	21H997	1	Screw	0.190" X 1-1/2"
16	14H631	1	Nut	0.190"
17	24H1287	2	Washer	9/32" X 5/8" X 0.065"
18	19H1227	2	Cap Screw	1/4" X 1/2"
18	19H1948	2	Cap Screw	1/4" X 3/4"
18	12H302	2	Lock Washer	1/4"
19	AM38411	1	ELECTRICAL COIL	(SUB FOR AM37031)
20	AM31029	1	CAPACITOR	-
21	M43162	1	GROMMET	-
22	AM37239	1	KIT	(COIL TO BREAKER) (SUB FOR AM34153 AND AM35875)

IGNITION SYSTEM AND ALTERNATOR [B01]

Нет текстового описания
