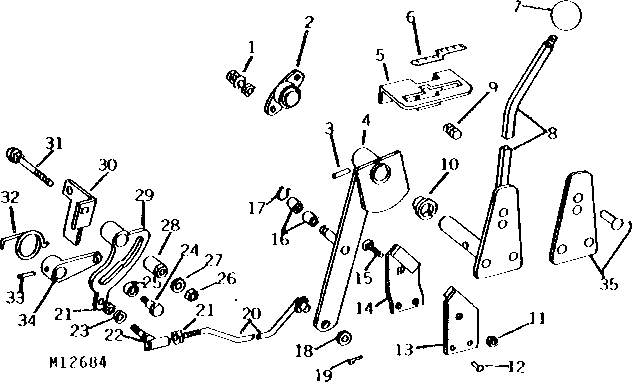

HYDROSTATIC TRANSMISSION CONTROL LEVER AND CAM [B24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	2	Lock Washer	3/8"
1	03H1519	2	Bolt	3/8" X 1"
1	14H1076	2	Nut	3/8"
2	AM30774	1	Bearing	-
3	25H97	1	Groove Pin	1/4" X 1-1/4", (SUB FOR M41530)
4	AM31828	1	ARM	(NO LONGER AVAILABLE)
5	AM31967	1	QUADRANT	(WITH DECAL)
6	M43635	1	LABEL	-
7	M40005	1	Knob	-
8	AM34835	1	LEVER	(SUB FOR AM31834)
9	12H302	2	Lock Washer	1/4"
9	14H786	2	Nut	1/4"
9	19H1227	2	Cap Screw	1/4" X 1/2"
10	T27083	1	BUSHING	(SUB FOR M42564)
11	T16464	1	Lock Nut	(SUB FOR M40699)
12	16H246	2	Rivet	3/16" X 3/8"
13	AM31264	1	PLATE	-
14	AM31266	1	PLATE	-
15	03H2126	1	BOLT	5/16" X 1-1/8"
16	M80533	2	Washer	-
17	R11026	1	Snap Ring	-
18	24H1305	1	Washer	13/32" X 13/16" X 0.065"
19	11M7059	1	Cotter Pin	3.200 X 20 MM
20	AM32566	1	ROD	(NO LONGER AVAILABLE)
21	14H774	2	Nut	3/8"
22	AM33710	1	BALL JOINT	(SUB FOR AM30754)
23	12H304	1	Lock Washer	3/8"
24	M42370	1	BOLT	-
25	M80533	1	Washer	-
26	14H785	1	Nut	5/16"
27	12H303	1	Lock Washer	5/16"
28	M78733	1	Bearing	(SUB FOR M42371)
29	M44384	1	CAM	-
30	M44385	1	BRACKET	(NO LONGER AVAILABLE)
31	03H1551	1	Bolt	5/16" X 2-1/2"
32	M44422	1	TORSION SPRING	-
33	34H386	1	Spring Pin	1/4" X 2"
34	M44383	1	ARM	-
35	AM34839	1	PLATE	(SUB FOR AM34642)

HYDROSTATIC TRANSMISSION CONTROL LEVER AND CAM [B24]
