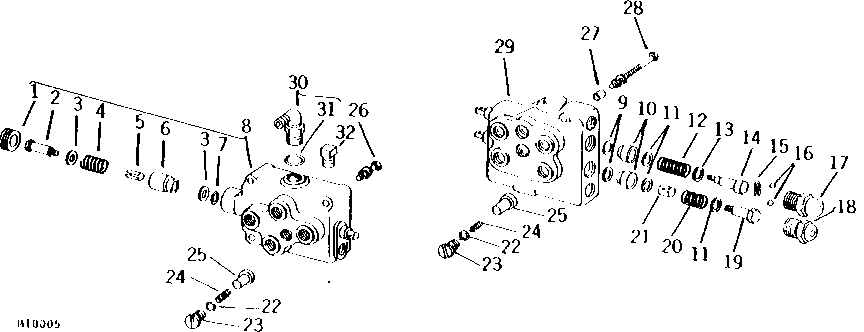

PRIMARY AND SECONDARY CONTROL VALVES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E40790	1	Plug	NLA (SUB FOR M42843)
2	E40785	1	Screw	NLA (SUB FOR M42839)
3	E40792	2	Washer	-
4	E40784	1	Spring	NLA
5	E40791	1	Bushing	NLA (SUB FOR M42844)
6	E40789	1	Bushing	NLA (SUB FOR M42842)
7	R394R	4	O-Ring	-
8	AM31242	1	Control Valve	(H-1 ONLY)
8	AM31811	1	Control Valve	(H-3 ONLY) (NO LONGER AVAILABLE)
9	R394R	8	O-Ring	(A)
10	N150470	1	Bushing	(A) (SUB FOR M42849)
11	M42855	1	Washer	(A)
12	M42852	1	COMPRESSION SPRING	(A)
13	M42856	1	WASHER	(A)
14	M42850	1	SCREW	(A)
15	E41822	1	Spring	(A) (SUB FOR M42853)
16	A4742R	2	Ball	(A) (SUB FOR M42854 OR 32241)
17	AM31421	1	DETENT	(A), NLA
18	AH78780	1	CAP	(SUB FOR AM31420)
19	N150468	1	SCREW	(A)
20	N150471	1	Spring	(A)
21	N150469	1	BUSHING	(A)
22	T42789	3	O-Ring	-
23	AN150266	2	Fitting Plug	(SUB FOR AM31418)
24	N150467	1	Spring	(SUB FOR M42841)
25	N150466	1	Plunger	(SUB FOR M42840)
26	14H786	3	Nut	1/4"
26	12H302	3	Lock Washer	1/4"
26	19H1966	3	Cap Screw	5/8" X 5-1/2"
27	28H1519	2	Washer	0.493" X 0.675" X 3/8"
28	19H2334	2	Cap Screw	1/4" X 2-1/2"
28	12H297	2	Lock Washer	1/4"
28	14H786	2	Nut	1/4"
29	AM31243	1	Control Valve	NLA (INCLUDES PARTS MARKED (A))
30	AT35121	1	Elbow Fitting	(H-3 ONLY) (SUB FOR AM31412)
31	R26448	1	O-Ring	-
32	M42918	1	Pipe Plug	NLA

PRIMARY AND SECONDARY CONTROL VALVES
