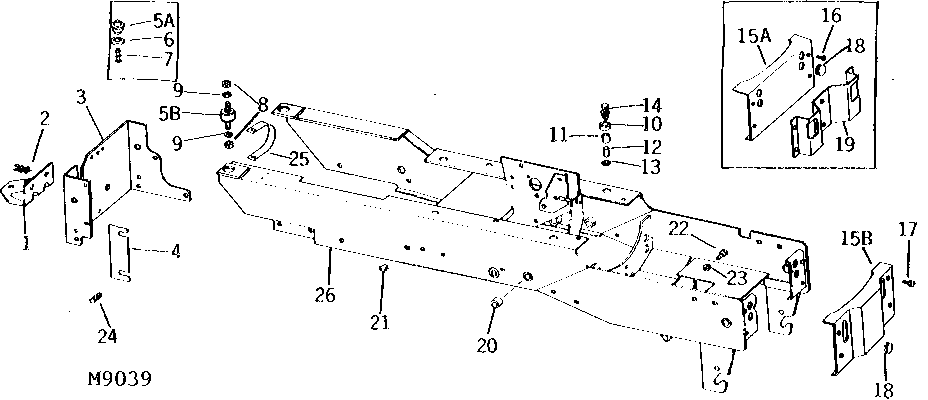

Frame Assembly, Hitch Plate and Bumper Plate

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M42357	1	HITCH	NLA
2	19H1833	2	Cap Screw	5/8" X 1-1/4"
2	14H760	2	Nut	5/8"
2	12H294	2	Lock Washer	5/8"
3	M42627	1	Hitch Plate	NLA
4	M42468	1	Shim	(NO LONGER AVAILABLE)
6	24H1191	2	Washer	1/2" X 1-1/2" X 0.105"
7	19H1899	2	Cap Screw	7/16" X 2"
7	12H293	2	Lock Washer	7/16"
7	14H813	2	Nut	7/16"
8	14H785	4	Nut	5/16"
9	12H303	4	Lock Washer	5/16"
10	M42814	2	BUSHING	-
11	M42813	2	Bushing	-
12	M42812	2	Spacer	-
13	24H1294	2	Washer	11/32" X 1-1/8" X 1/16"
14	14H1076	2	Nut	3/8"
14	12H304	2	Lock Washer	3/8"
14	03H1825	2	Bolt	5/16" X 1-1/2"
16	37H55	4	CAP SCREW	5/16" X 1/2"
17	19H2020	4	Cap Screw	5/16" X 1/2"
18	M2291T	4	PLUG	-
19	M43217	1	Guard	(NO LONGER AVAILABLE)
20	N71208	1	BUSHING	-
21	M40683	1	STOP	-
22	19H2791	2	Cap Screw	3/8" X 1-3/4", NLA
23	14H732	2	Nut	3/8"
24	14H813	2	Nut	7/16"
24	19H1821	2	CAP SCREW	7/16" X 1-1/4"
24	12H293	2	Lock Washer	7/16"
25	M42711	1	Strap	(FRAME TO DECK) (NO LONGER AVAILABLE)
26	AM31857	1	Frame	(NO LONGER AVAILABLE)
26	AM31288	1	Frame	(NO LONGER AVAILABLE)
5A	M42698	1	SUPPORT	-
5B	M73249	1	ISOLATOR	(SUB FOR M43832 OR M86638)
15A	M42343	1	Bumper	(NO LONGER AVAILABLE)
15B	M43641	1	BUMPER	-

Frame Assembly, Hitch Plate and Bumper Plate
