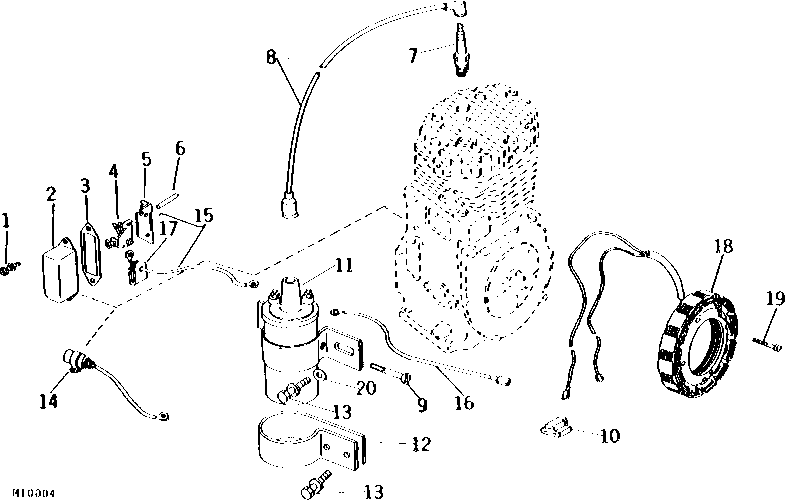

BATTERY-COIL IGNITION SYSTEM (KOHLER K321AS ENGINE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H295	4	Lock Washer	0.190"
1	21H1017	4	SCREW	0.190" X 3/8"
2	M43560	1	COVER	-
3	M84723	1	GASKET	(SUB FOR M42007)
4	AM35000	1	BREAKER POINTS	(SUB FOR AM31140)
5	M42009	1	BRACKET	(SUB AM35000)
6	M86474	1	ROD	(SUB FOR M43161 OR M81481)
7	AM514T	1	SPARK PLUG	(CHAMPION H-10)
7	TY21721	1	SPARK PLUG	(PRESTOLITE 14-L7B) (SUB FOR AT17208)
7	AM514T	1	SPARK PLUG	(AC 45L) (SUB FOR AM1535T)
8	AM35889	1	KIT	LEAD (SUB FOR AM32072)
9	21H997	1	Screw	0.190" X 1-1/2"
10	M44148	1	ELECTRICAL CONNECTOR ASSY	(THREE WIRE)
11	AM132453	1	FIELD WINDING COIL	(SUB FOR AM37031 OR AM38411)
12	M81511	1	BRACKET	(SUB FOR M44166)
13	19H1227	2	Cap Screw	1/4" X 1/2"
13	12H302	2	Lock Washer	1/4"
14	AM31029	1	CAPACITOR	-
15	AM32874	1	WIRING LEAD	NLA (COIL TO BREAKER POINTS)
16	AM37239	1	KIT	(10" LONG), LEAD (COIL TO HARNESS COUPLER) (SUB FOR AM35875 OR AM33094)
17	M43162	1	GROMMET	-
18	AM32334	1	STATOR	-
19	21H1312	4	SCREW	0.190" X 1"
20	24H1287	1	Washer	9/32" X 5/8" X 0.065"

BATTERY-COIL IGNITION SYSTEM (KOHLER K321AS ENGINE)

Нет текстового описания
