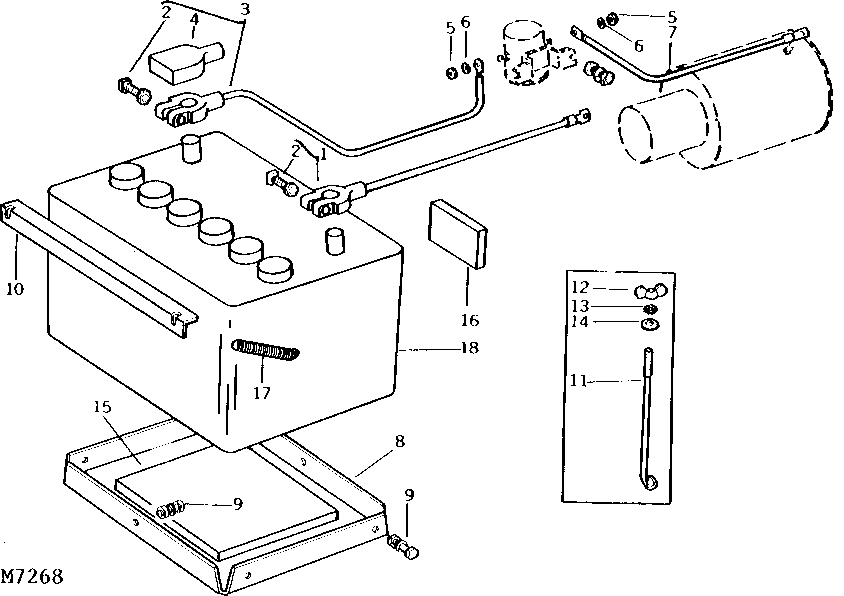

BATTERY AND STARTER CABLES AND BATTERY BASE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM102602	1	Ground Cable	16-1/2" LONG, (SUB FOR AM31405)
2	08H4316	2	Bolt	5/16" X 1-1/4"
2	14H785	2	Nut	5/16"
3	AM31404	1	BATTERY CABLE	15" LONG, (POSITIVE)
4	M86133	1	Cover	(POSITIVE) (SUB FOR M42372, M83639 OR M80633)
5	14H882	2	Nut	5/16"
6	12H291	2	Lock Washer	5/16"
7	AM31403	1	CABLE	NLA (SOLENOID TO STARTER)
8	M42549	1	BASE	-
9	14H786	5	Nut	1/4"
9	12H302	5	Lock Washer	1/4"
9	19H1227	5	Cap Screw	1/4" X 1/2"
10	AM101500	1	Battery Kit	BATTERY HOLD DOWN (INCLUDES POSITIVE BATTERY BOOT) (SUB FOR M42373)
11	M83518	2	BOLT	(SUB FOR M40004)
12	14H844	2	WING NUT	1/4"
13	12H297	2	Lock Washer	1/4"
14	24H1287	1	Washer	9/32" X 5/8" X 0.065"
15	M44311	1	PAD	BOTTOM (SUB FOR M44075)
16	M44074	1	PAD	FRONT, NLA
17	S337M	2	Extension Spring	-
18	TY6192	1	Dry Charged Battery	(SUB FOR AM31186 OR TY6181)
..	M82800	2	Cap	NLA (SUB FOR AM38003)

BATTERY AND STARTER CABLES AND BATTERY BASE
