Открытый узел

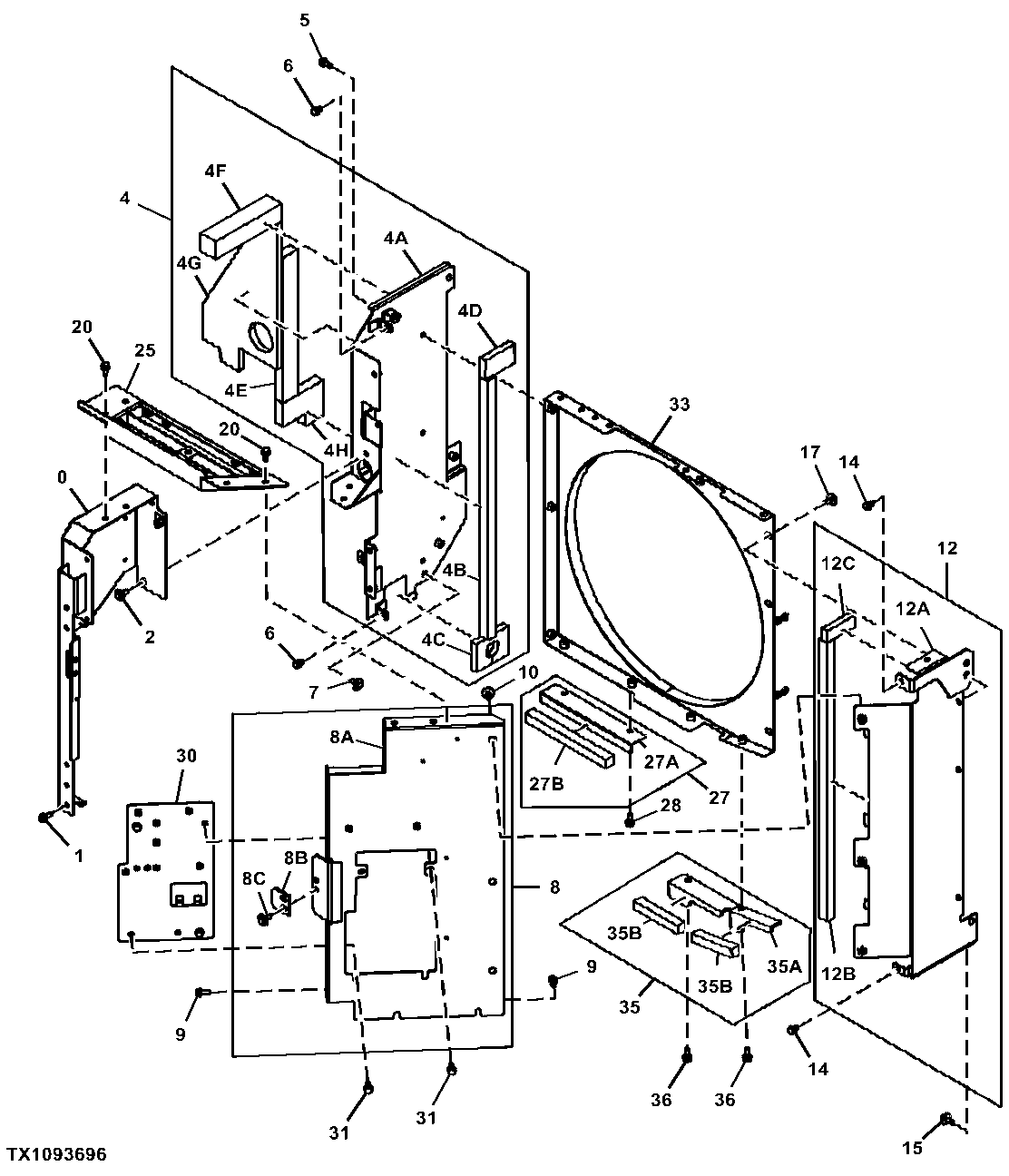

Cooling Package Compartment Panels (Units Built Before June 2009) ( - XXXXXX)

Cooling Package Compartment Panels (Units Built Before June 2009) ( - XXXXXX)

Cooling Package Compartment Panels (Units Built Before June 2009) ( - XXXXXX)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Cooling Package Compartment Panels (Units Built Before June 2009) ( - XXXXXX)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	FYA60047521	1	Cover	SUB FOR FYA60021095, ALSO ORDER FYA60047522
0	FYA60047522	1	Cover	SUB FOR FYA60021095, ALSO ORDER FYA60047521
0	4696733	1	Plate	SUB FOR FYA00022388
0	19M7881	4	Screw	M8 X 20
0	24M7055	4	Washer	8.400 X 16 X 1.600 mm
0	4443487	4	Clip	-
0	FYA40033110	1	Cover	SUB FOR 7052105, 7060760 AND FYA40016259, ALSO ORDER FYA60047521, FYA60047522, 4696733, (4) 19M7881, (4) 24M7055 AND (4) 4443487
1	-	1	Part 8	J271030 NLA, ORDER 19M7662 AND 24M7346
1	19M7662	1	Cap Screw	M10 X 30, SUB FOR J901030
1	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
2	-	2	Part 11	J281030 NLA, ORDER 19M7662 AND 4486055
2	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
2	4486055	2	Washer	-
4	8108476	1	Cover	-
5	-	3	Part 23	J271030 NLA, ORDER 19M7662 AND 24M7346
5	19M7662	3	Cap Screw	M10 X 30, SUB FOR J901030
5	24M7346	3	Washer	11 X 20 X 2 mm, SUB FOR J222010
6	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
6	-	2	Part 26	J271020 NLA, ORDER 19M7938 AND 24M7346
6	19M7938	2	Cap Screw	M10 X 20, SUB FOR J901020
7	4486055	1	Washer	-
7	19M7662	1	Cap Screw	M10 X 30, SUB FOR J901030
7	-	1	Part 29	J281030 NLA, ORDER 19M7662 AND 4486055
8	-	1	Part 32	Units Built Before June 2009, 9275404 NLA
9	24M7346	3	Washer	11 X 20 X 2 mm, SUB FOR J222010
9	19M7662	3	Cap Screw	M10 X 30, SUB FOR J901030
9	-	3	Part 38	J271030 NLA, ORDER 19M7662 AND 24M7346
10	-	3	Part 41	J281030 NLA, ORDER 19M7662 AND 4486055
10	19M7662	3	Cap Screw	M10 X 30, SUB FOR J901030
10	4486055	3	Washer	-
12	8108477	1	Cover	-
14	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
14	19M7938	2	Cap Screw	M10 X 20, SUB FOR J901020
14	-	2	Part 48	J271020 NLA, ORDER 19M7938 AND 24M7346
15	4486055	1	Washer	-
15	19M7662	1	Cap Screw	M10 X 30, SUB FOR J901030
15	-	1	Part 51	J281030 NLA, ORDER 19M7662 AND 4486055
17	4486055	3	Washer	-
17	19M7662	3	Cap Screw	M10 X 30, SUB FOR J901030
17	-	3	Part 54	J281030 NLA, ORDER 19M7662 AND 4486055
20	-	4	Part 57	J271030 NLA, ORDER 19M7662 AND 24M7346
20	19M7662	4	Cap Screw	M10 X 30, SUB FOR J901030
20	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
25	7053644	1	Cover	-
27	9769242	1	Cover	-
28	-	2	Part 64	J271030 NLA, ORDER 19M7662 AND 24M7346
28	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
28	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
30	8115593	1	Cover	Units Built Before June 2009
31	-	4	Part 68	Units Built Before June 2009, J271030 NLA, ORDER 19M7662 AND 24M7346
31	19M7662	4	Cap Screw	M10 X 30, Units Built Before June 2009, SUB FOR J901030
31	24M7346	4	Washer	11 X 20 X 2 mm, Units Built Before June 2009, SUB FOR J222010
33	6026090	1	Cover	-
35	9770489	1	Cover	-
36	-	2	Part 75	J271030 NLA, ORDER 19M7662 AND 24M7346
36	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
36	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
4A	-	1	Part 15	6025343 NSEP, ORDER 8108476
4B	4666325	1	Isolator	-
4C	4655282	1	Isolator	-
4D	4665662	1	Isolator	-
4E	4682037	1	Isolator	-
4F	4677483	1	Isolator	-
4G	4682033	1	Isolator	-
4H	4686623	1	Isolator	-
8A	7052093	1	Cover	Units Built Before June 2009
8B	4638905	1	Stop	-
8C	-	2	Part 35	J281030 NLA, ORDER 19M7662 AND 4486055
8C	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
8C	4486055	2	Washer	-
12A	-	1	Part 45	7052333 NSEP, ORDER 8108477
12B	4666841	1	Isolator	-
12C	4665662	1	Isolator	-
27A	-	1	Part 62	4682066 NSEP, ORDER 9769242
27B	4682241	1	Isolator	-
35A	-	1	Part 73	3115001 NSEP, ORDER 9770489
35B	4694048	2	Isolator	-
