Cooling Package and Hydraulic Pump Compartment Doors (Before June 2008)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	(7055474 NLA)
1	24M7028	2	Washer	10.500 X 20 X 2 mm, (SUB FOR A590110)
2	14M7274	2	Nut	M10, (SUB FOR J950010)
3	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
3	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)
3	-	2	Part 9	(J271030 NLA)
4	4639112	1	Latch	-
5	4647195	1	Clamp	-
7	7052427	1	Bracket	-
8	-	2	Part 15	(J281030 NLA)
8	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)
8	4486055	2	Washer	-
10	-	1	Part 18	(9275149 NLA)
11	4486055	3	Washer	-
11	19M7662	3	Cap Screw	M10 X 30, (SUB FOR J901030)
11	-	3	Part 31	(J281030 NLA)
13	7055476J	1	Cover	(SUB FOR 7055476)
14	19M7662	4	Cap Screw	M10 X 30, (SUB FOR J901030)
14	4486055	4	Washer	-
14	-	4	Part 41	(J281030 NLA)
15	4639112	1	Latch	-
16	4647195	1	Clamp	-
0A	7052495	1	Door	-
0B	4674554	1	Lock	-
0C	14M7272	4	Nut	M6, (SUB FOR M500605)
0D	24M7054	4	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
0E	4681563	1	Isolator	-
10A	4652573	1	Stop	-
10B	19M7177	2	Cap Screw	M6 X 35, (SUB FOR J900635)
10B	24M7054	2	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
10B	-	2	Part 20	(J260635 NLA)
10C	4638905	2	Stop	-
10D	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)
10D	4486055	2	Washer	-
10D	-	2	Part 22	(J281030 NLA)
10E	7052423	1	Bracket	-
10F	4412576	1	Isolator	-
10G	4689192	1	Isolator	-
10H	8112723	1	Bracket	-
13A	7052747	1	Cover	(NLA)
13B	4674554	1	Lock	-
13C	14M7272	4	Nut	M6, (SUB FOR M500605)
13D	24M7054	4	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
13E	4682526	1	Isolator	-
13F	FXV00001068	1	Isolator	SUB FOR 4652169

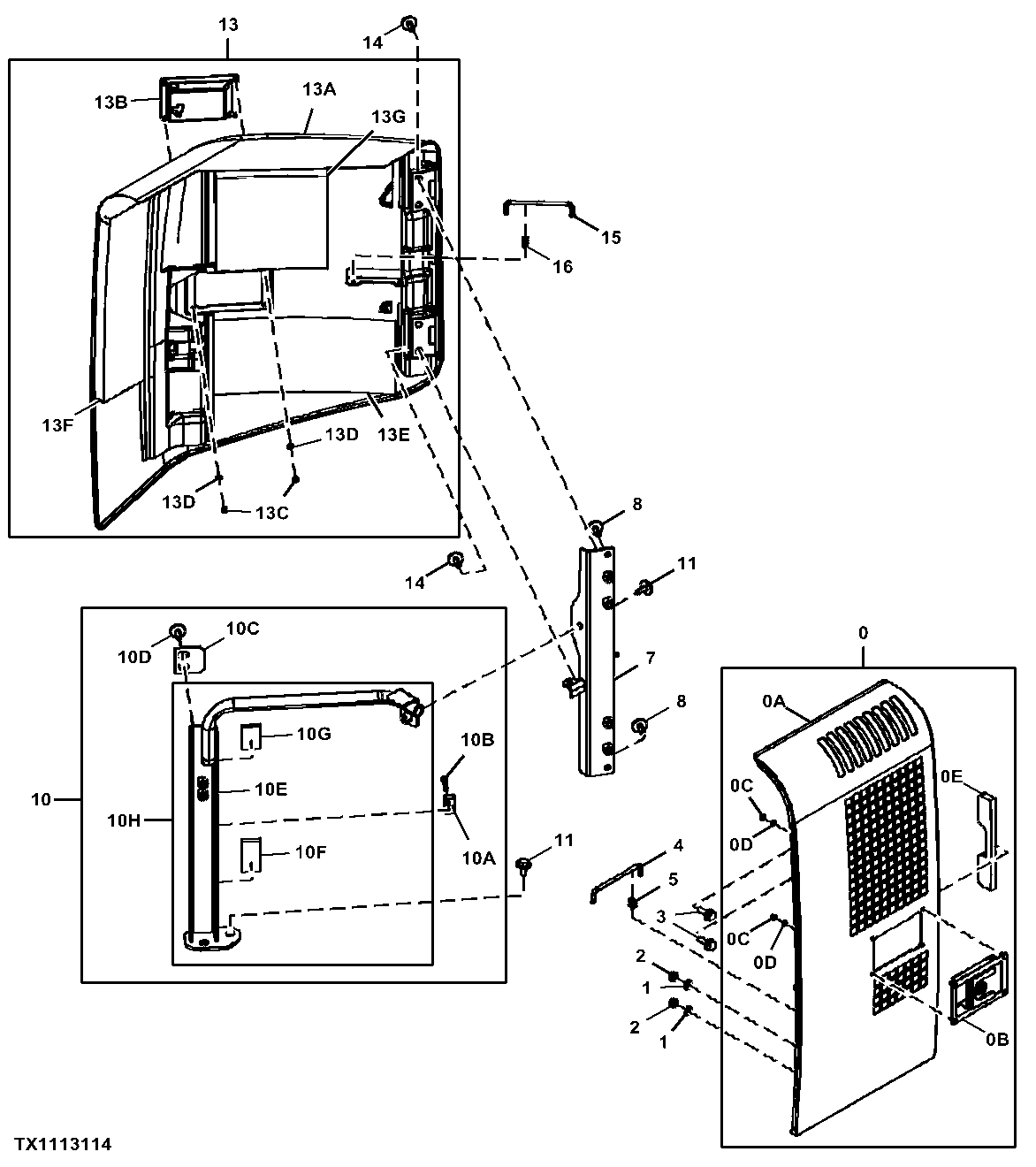

Cooling Package and Hydraulic Pump Compartment Doors (Before June 2008)
