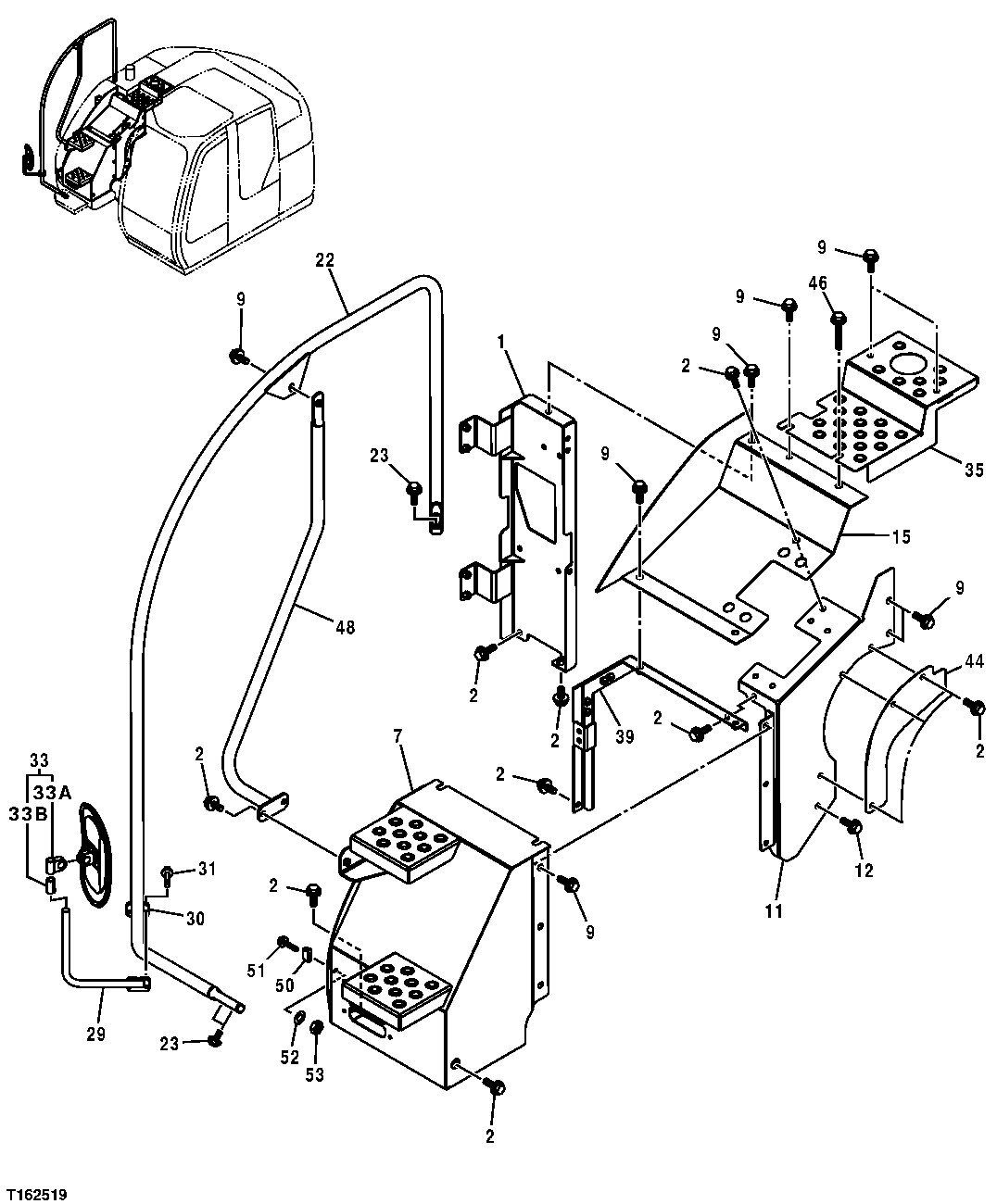

STEP HANDRAILS AND RIGHT SIDE MIRROR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	7038988	1	Support	-
2	19M7662	12	Cap Screw	M10 X 30, SUB FOR J021030
2	24M7028	12	Washer	10.500 X 20 X 2 mm
2	12M7066	12	Lock Washer	10 mm
7	6020733	1	Cover	SUB FOR 6019450
9	19M7662	12	Cap Screw	M10 X 30, SUB FOR J031030
9	12M7067	12	Lock Washer	12 mm
9	24M7346	12	Washer	11 X 20 X 2 mm
11	7038795	1	Cover	-
11	-	1	Part 10	7043846 NLA, ORDER 7045324
11	7045324	1	Cover	-
12	4678444	1	Bolt	SUB FOR J021035, ALSO ORDER A590910 AND J222010
12	24M7028	1	Washer	10.500 X 20 X 2 mm, SUB FOR J222010
12	12M7066	1	Lock Washer	10 mm, SUB FOR A590910
15	7038785	1	Cover	-
15	7043845	1	Cover	-
22	4615210	1	Handrail	SUB FOR 7038983, THIS APPLICATION
23	19M7493	4	Cap Screw	M12 X 40, SUB FOR J011240
23	12H301	4	Lock Washer	1/2"
29	8124253	1	Bracket	SUB FOR 8077521
30	4425481	1	Hose Clamp	-
31	19M7184	2	Cap Screw	M8 X 55, SUB FOR J010855
31	-	2	Part 23	12M7065 NLA
33	4420724	1	Rear View Mirror	SUB FOR 4416704
35	7040882	1	Cover	-
35	7041812	1	Cover	-
39	-	1	Part 29	7039863 NLA, SUB 7041723, 7041416, 7041693, 4464840, (2) 19M7662, (2) 12M7067 AND (2) 24M7346
44	3091499	1	Cover	USE WITH 7038795
46	19M8183	1	Cap Screw	M10 X 90, SUB FOR J031090
46	12M7066	1	Lock Washer	10 mm
46	24M7296	1	Washer	10.500 X 30 X 2.500 mm
48	4615211	1	Handrail	SUB FOR 8083426, THIS APPLICATION
50	4609950	1	Stop	SUB FOR 4424157
51	-	1	Part 36	J020640 NLA
52	24M7054	1	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
53	14M7272	1	Nut	M6, SUB FOR M500605
33A	-	1	Part 25	-
33B	-	1	Part 26	-

STEP HANDRAILS AND RIGHT SIDE MIRROR

Нет текстового описания
