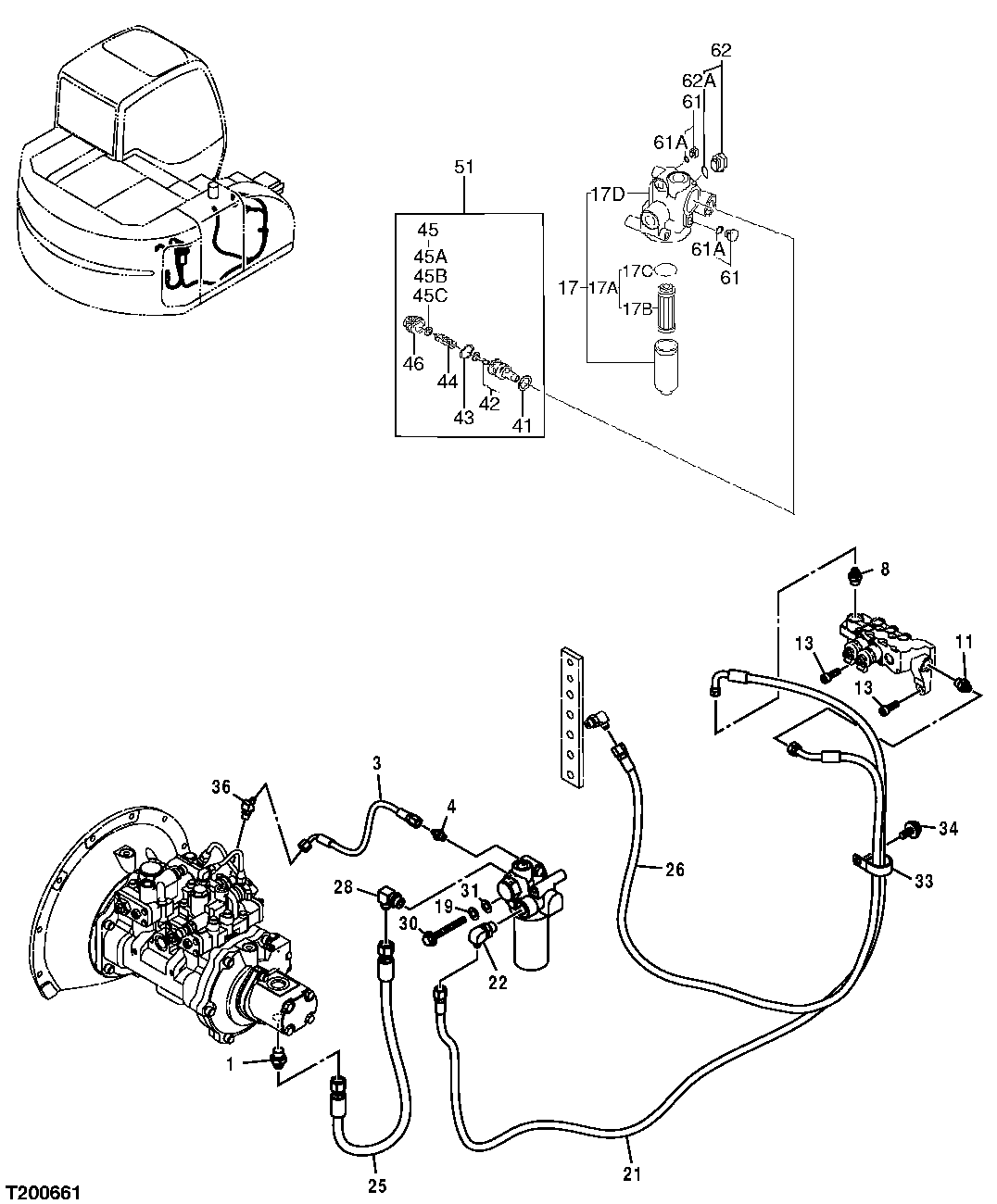

PILOT HYDRAULIC LINES (PUMP TO FILTER) (FILTER TO SOLENOID VALVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4506418	1	O-Ring	-
1	A852144	1	Adapter Fitting	-
3	4618606	1	Hose	SUB FOR 4453172 OR 4436293
4	A852122	1	Adapter Fitting	-
4	M800650	1	Packing	SUB FOR 957366
8	A852133	1	Adapter Fitting	-
8	4297380	1	O-Ring	SUB FOR 4622346, 4674883 OR 4509180
11	A852133	1	Adapter Fitting	-
11	4297380	1	O-Ring	SUB FOR 4622346, 4674883 OR 4509180
13	19M7576	2	Screw	M10 X 30, SUB FOR J781030
17	4611025	1	Oil Filter	SUB FOR 4408959
19	12M7066	2	Lock Washer	10 mm, SUB FOR A590910
21	4448748	1	Hydraulic Hose	-
22	A852343	1	Elbow Fitting	-
22	4506418	1	O-Ring	-
25	4425095	1	Hydraulic Hose	-
26	4452005	1	Hydraulic Hose	-
28	4506418	1	O-Ring	-
28	A852344	1	Elbow Fitting	-
30	J901002	2	Bolt	-
31	24M7028	2	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
33	XCL-29	1	Hose Clamp	SUB FOR 4190264, 4193848 OR 4190291
34	19M7662	1	Cap Screw	M10 X 30, SUB FOR J011030
34	12M7066	1	Lock Washer	10 mm
36	A852222	1	Union Fitting	-
36	M800650	1	Packing	SUB FOR 957366
41	4487648	1	Gasket	SUB FOR 0308704
42	0308703	1	Pressure Relief Valve	-
43	4487138	1	O-Ring	SUB FOR 0308705
44	-	1	Part 34	-
45	9228867	1	Shim	SUB FOR 4293211
46	0308709	1	Fitting Plug	-
51	0709701	1	Pressure Relief Valve	-
61	4174541	2	Fitting	-
62	A885002	1	Plug	-
17A	AT186554	1	Filter Element	SUB FOR 4370435 OR AT214263
17B	-	1	Part 13	4191301 NLA
17C	TH105683	1	O-Ring	SUB FOR A811060, 4153538, TH0430809 OR 0430809
17D	4472430	1	Pressure Relief Valve	-
45A	4606473	2	Shim	SUB FOR 4309836
45B	4487297	2	Shim	SUB FOR 4309837
45C	-	2	Part 38	4309838 NLA
61A	M800650	1	Packing	-
62A	4506418	1	O-Ring	-

PILOT HYDRAULIC LINES (PUMP TO FILTER) (FILTER TO SOLENOID VALVE)
