MAIN HYDRAULIC LINES (CONTROL VALVE TO ROTARY MANIFOLD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4506418	1	O-Ring	-
1	A853144	2	Adapter Fitting	-
5	4199247	2	Adapter Fitting	-
5	4506418	1	O-Ring	-
6	4510173	8	Fitting	-
7	R69667	4	O-Ring	(SUB FOR 4510167)
8	19M7657	16	Screw	M8 X 25, (SUB FOR P61954 OR J780825)
9	T77857	4	O-Ring	(SUB FOR 4138938)
11	-	1	Part 9	( 9197717 NLA), ORDER INDIVIDUAL COMPONENTS
12	-	1	Part 12	( 9197718 NLA), ORDER INDIVIDUAL COMPONENTS
13	-	1	Part 15	( 9197719 NLA), ORDER INDIVIDUAL COMPONENTS
14	-	1	Part 18	( 9197720 NLA), ORDER INDIVIDUAL COMPONENTS
11A	4448839	1	Hydraulic Hose	-
11B	-	3	Part 11	(MAKE FROM <service-part>XHG-075</service-part> , CUT TO LENGTH) ( <service-part>4327294</service-part> NLA)
12A	4437779	1	Hydraulic Hose	-
12B	-	3	Part 14	(MAKE FROM <service-part>XHG-075</service-part> , CUT TO LENGTH) ( <service-part>4327294</service-part> NLA)
13A	4448849	1	Hydraulic Hose	-
13B	-	3	Part 17	(MAKE FROM <service-part>XHG-075</service-part> , CUT TO LENGTH) ( <service-part>4327294</service-part> NLA)
14A	4448851	1	Hydraulic Hose	-
14B	-	3	Part 20	(MAKE FROM <service-part>XHG-075</service-part> , CUT TO LENGTH) ( <service-part>4327294</service-part> NLA)

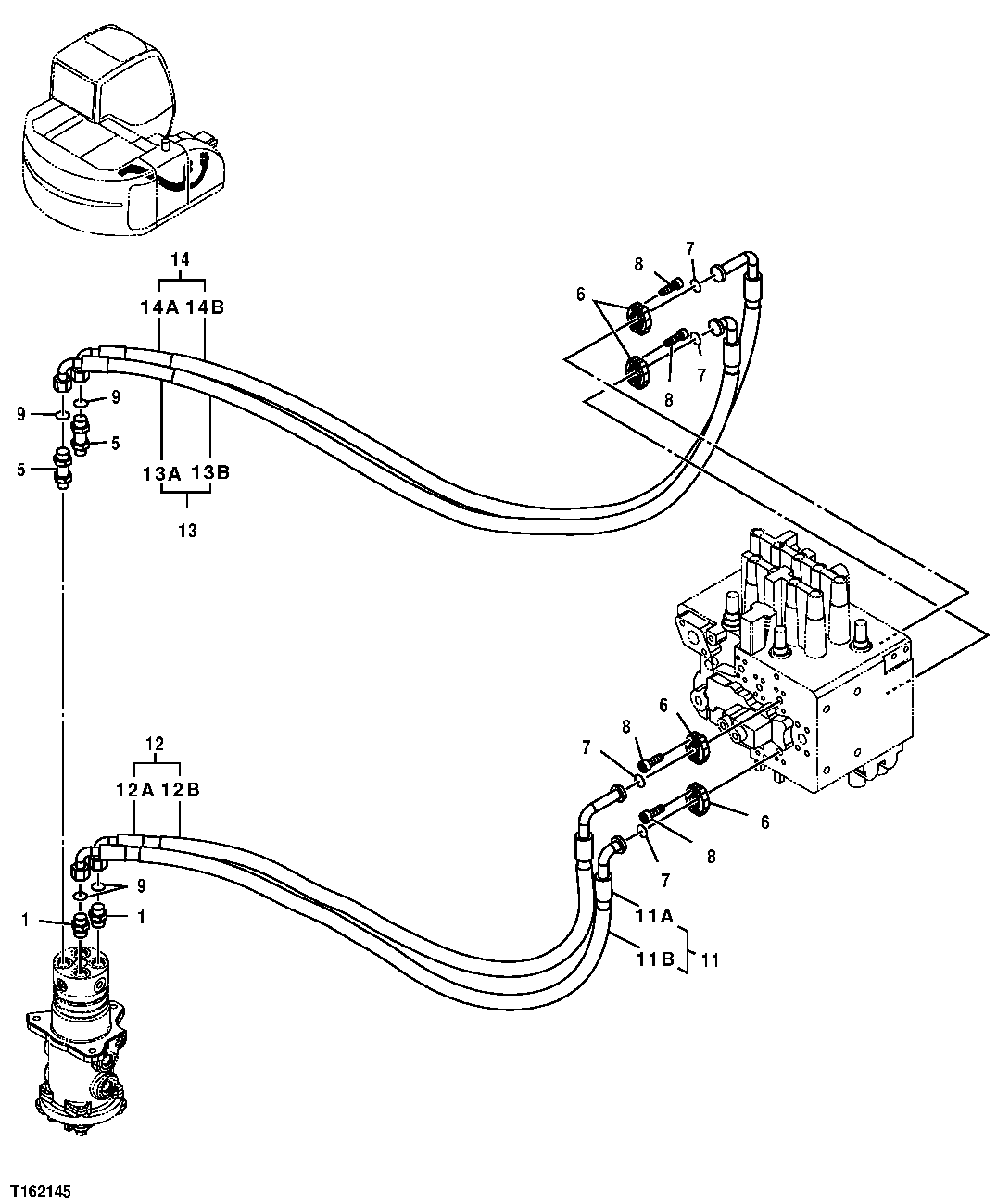

MAIN HYDRAULIC LINES (CONTROL VALVE TO ROTARY MANIFOLD)
