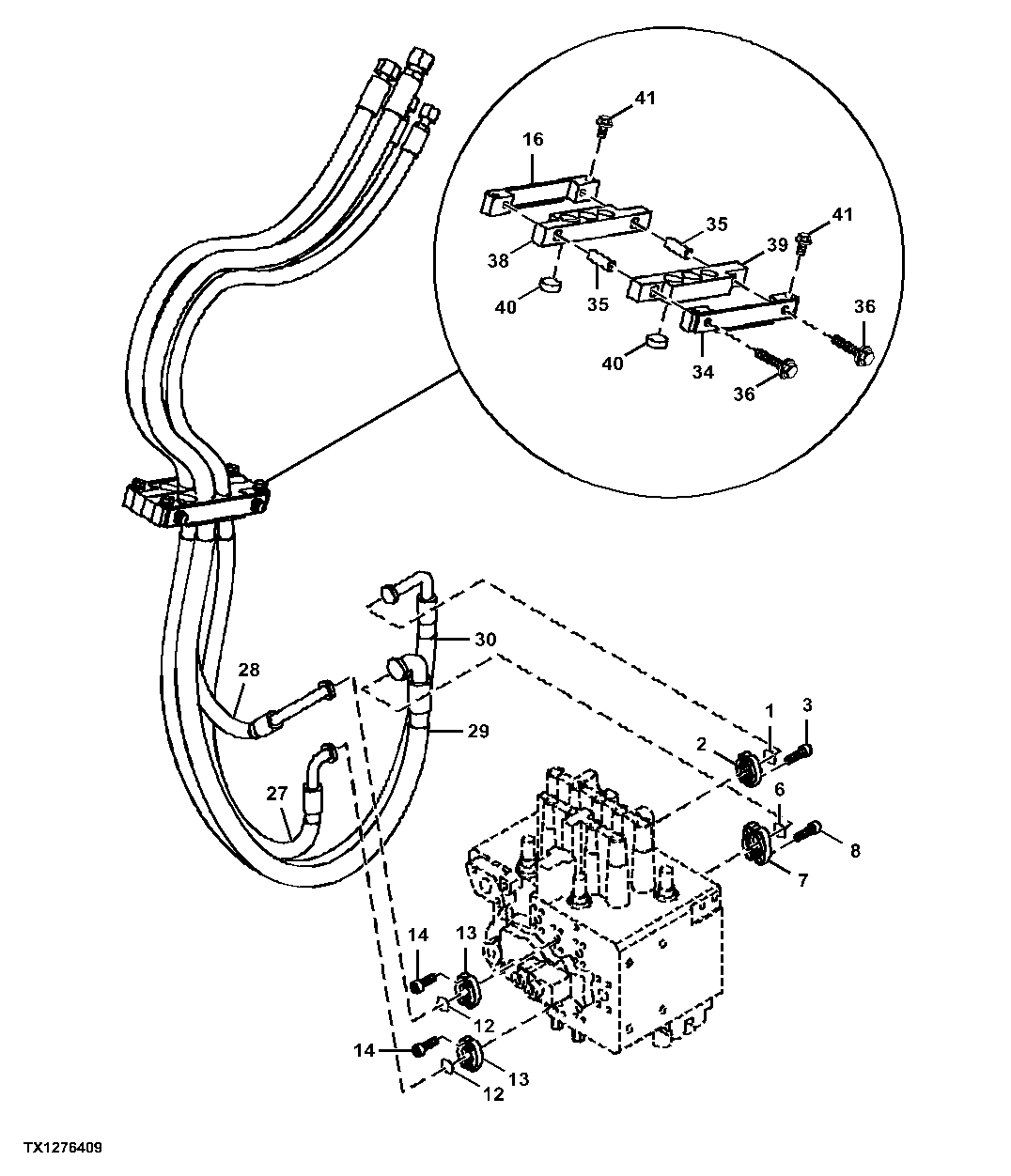

Main Hydraulic Lines, Control Valve To Arm Cylinder

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R69667	1	O-Ring	SUB FOR 4510167
2	4510173	2	Fitting	-
3	19M7657	4	Screw	M8 X 25, SUB FOR P61954 OR J780825
6	T59014	1	O-Ring	SUB FOR 971489
7	R29424	2	Flange Fitting	SUB FOR 986910
8	19M7576	4	Screw	M10 X 30, SUB FOR J781030
12	R69667	2	O-Ring	SUB FOR 4510167
13	4510173	4	Fitting	-
14	19M7657	8	Screw	M8 X 25, SUB FOR P61954 OR J780825
16	8076645	1	Bracket	-
27	4437725	1	Hydraulic Hose	ALSO ORDER (2) 4327294, 9201708 NLA
27	-	2	Part 12	MAKE FROM XHG-075, CTL, SUB FOR 4327294
28	4437726	1	Hydraulic Hose	ALSO ORDER 4327294, 9201709 NLA
28	-	1	Part 14	MAKE FROM XHG-075, CTL, SUB FOR 4327294
29	-	3	Part 16	MAKE FROM XHG-075, CTL, SUB FOR 4327294
29	4437747	1	Hydraulic Hose	ALSO ORDER (3) 4327294, 9201710 NLA
30	4437762	1	Hydraulic Hose	ALSO ORDER (3) 4327294, 9201711 NLA
30	-	3	Part 18	MAKE FROM XHG-075, CTL, SUB FOR 4327294
34	8078188	1	Bracket	-
35	4428830	2	Spacer	-
36	-	2	Part 21	J021090 NLA
36	19M8183	2	Cap Screw	M10 X 90
36	12M7066	2	Lock Washer	10 mm
36	24M7028	2	Washer	10.500 X 20 X 2 mm
38	3092223	1	Hose Clamp	-
39	3092224	1	Hose Clamp	-
40	4455225	2	Plug	-
41	-	4	Part 28	J021030 NLA
41	19M7662	4	Cap Screw	M10 X 30
41	24M7028	4	Washer	10.500 X 20 X 2 mm
41	12M7066	4	Lock Washer	10 mm
