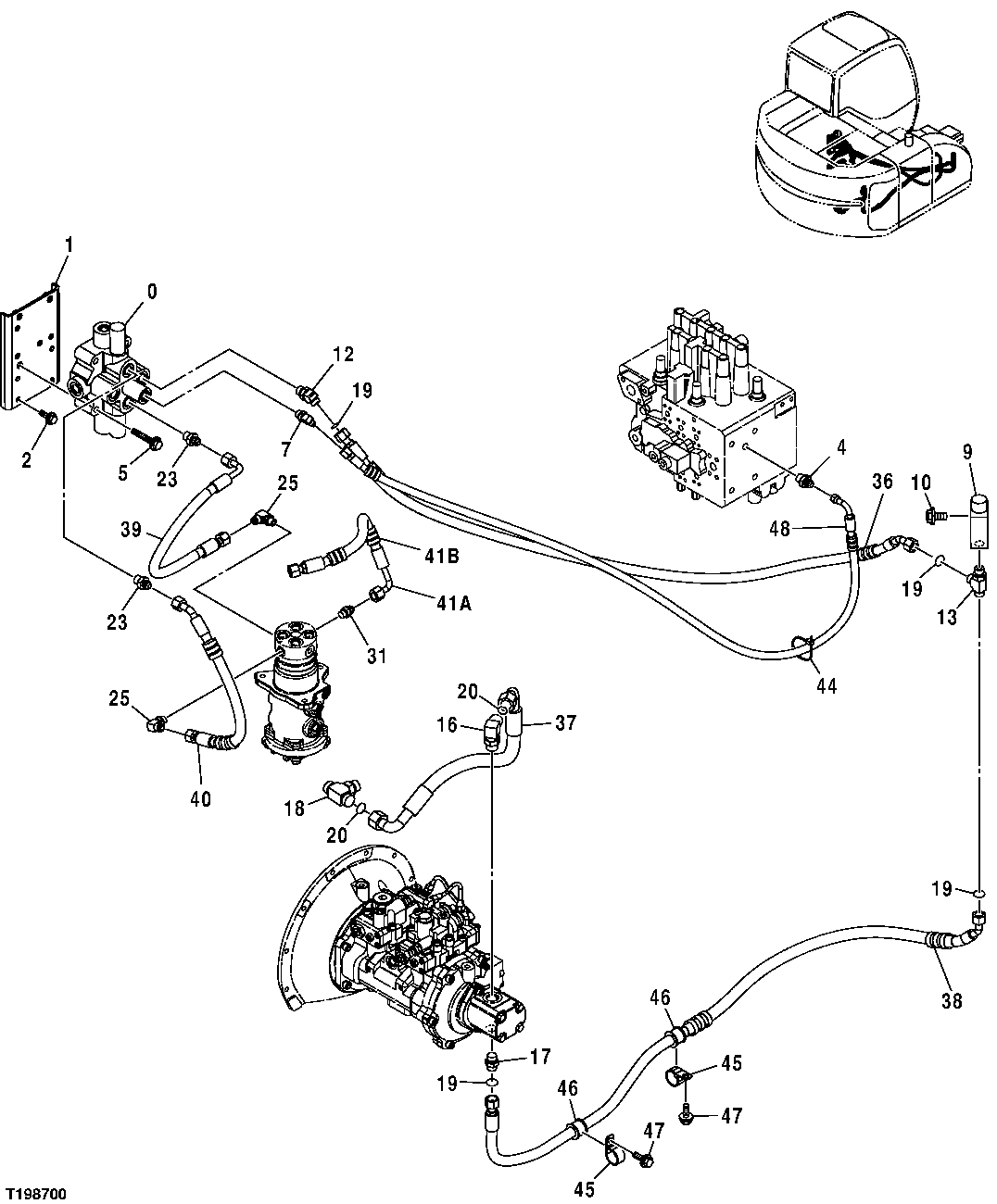

MAIN HOSES (BLADE OPTION) (PUMP TO CONTROL VALVE) (CONTROL VALVE TO BLADE CONTROL VALVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4401481	1	Hyd Actuated Control Valve	-
1	8083333	1	Bracket	-
2	12M7066	4	Lock Washer	10 mm
2	19M7402	4	Cap Screw	M10 X 25
4	4376657	1	Adapter Fitting	-
4	CH11570	1	O-Ring	-
5	19M7364	3	Cap Screw	M12 X 80, SUB FOR J011280
5	12M7067	3	Lock Washer	12 mm
7	4190244	1	Elbow Fitting	-
7	CH11570	1	O-Ring	-
9	4411019	1	Pressure Relief Valve	-
10	-	2	Part 13	12M7065 NLA
10	24M7096	2	Washer	10.500 X 18 X 1.600 mm
10	19M7981	2	Cap Screw	M8 X 55
12	A853244	1	Elbow Fitting	-
12	4506418	1	O-Ring	-
13	A853444	1	Tee Fitting	-
13	4506418	1	O-Ring	-
16	A853366	1	Elbow Fitting	-
16	AT318035	1	O-Ring	SUB FOR 4506424
17	A853144	1	Adapter Fitting	-
17	4506418	1	O-Ring	-
18	AT318035	1	O-Ring	SUB FOR 4506424
18	A853566	1	Tee Fitting	-
19	T77857	4	O-Ring	-
20	T77858	2	O-Ring	-
23	A852144	2	Adapter Fitting	-
23	4506418	2	O-Ring	-
25	A852334	2	Elbow Fitting	-
25	CH11570	2	O-Ring	-
31	A852134	1	Adapter Fitting	-
31	CH11570	1	O-Ring	-
36	9203700	1	Hydraulic Hose	-
37	4454538	1	Hydraulic Hose	-
38	9204313	1	Hydraulic Hose	-
39	9201403	1	Hydraulic Hose	-
40	9201404	1	Hydraulic Hose	-
44	H77698	1	Tie Band	-
45	XCL-29	2	Hose Clamp	SUB FOR 4190264 OR 4193848
46	4457233	2	Bushing	-
47	19M7938	2	Cap Screw	M10 X 20
47	12M7066	2	Lock Washer	10 mm
48	9184663	1	Hydraulic Hose	-
48	4327315	4	Hose Guard	4327293 NLA
41A	-	1	Part 38	4420423 NLA, ORDER 43044464, A852144
41B	-	1	Part 39	(MAKE FROM <service-part>XHG-075</service-part> , CUT TO LENGTH) ( <service-part>4327294</service-part> NLA)
