LEFT SIDE COMPARTMENT PANELING (SN 062993- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7067	2	Lock Washer	12 mm
1	19M7662	2	Cap Screw	M10 X 30, SUB FOR J031030
1	24M7346	2	Washer	11 X 20 X 2 mm
6	19M8035	1	Cap Screw	M16 X 35
7	12H294	1	Lock Washer	5/8", SUB FOR A590916
8	24M7053	1	Washer	17 X 30 X 3 mm, SUB FOR A590116
9	-	6	Part 7	J281025 NLA
9	19M7402	6	Cap Screw	M10 X 25, SUB FOR J901025
9	4486055	6	Washer	-
11	7040026	1	Support	-
12	19M7662	2	Cap Screw	M10 X 30, SUB FOR J021025
12	12M7066	2	Lock Washer	10 mm
12	24M7028	2	Washer	10.500 X 20 X 2 mm
14	7040023	1	Support	-
15	19M7662	4	Cap Screw	M10 X 30, SUB FOR J021030
15	12M7066	4	Lock Washer	10 mm
15	24M7028	4	Washer	10.500 X 20 X 2 mm
16	24M7028	1	Washer	10.500 X 20 X 2 mm, SUB FOR J222010
16	4678444	1	Bolt	SUB FOR J021035, ALSO ORDER A590910 AND J222010
16	12M7066	1	Lock Washer	10 mm, SUB FOR A590910
18	FXV00000110	1	Holder	SUB FOR 4656678 AND 4375688
20	19M7662	2	Cap Screw	M10 X 30, SUB FOR J021025
20	12M7066	2	Lock Washer	10 mm
20	24M7028	2	Washer	10.500 X 20 X 2 mm
23	7043374	1	Cover	-
24	7043647	1	Cover	-
25	8090611	1	Bracket	-
26	-	2	Part 37	J271030 NLA
26	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
26	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
23A	7043375	1	Cover	-
23B	3096444	1	Cover	-
23C	4437752	1	Isolator	-
24A	5008691	1	Cover	-
24B	3096232	1	Isolator	-
24C	4472831	1	Isolator	SUB FOR 4485410
24D	4472831	1	Isolator	SUB FOR 4485410
24E	4437750	1	Isolator	-
24F	4450524	1	Isolator	-

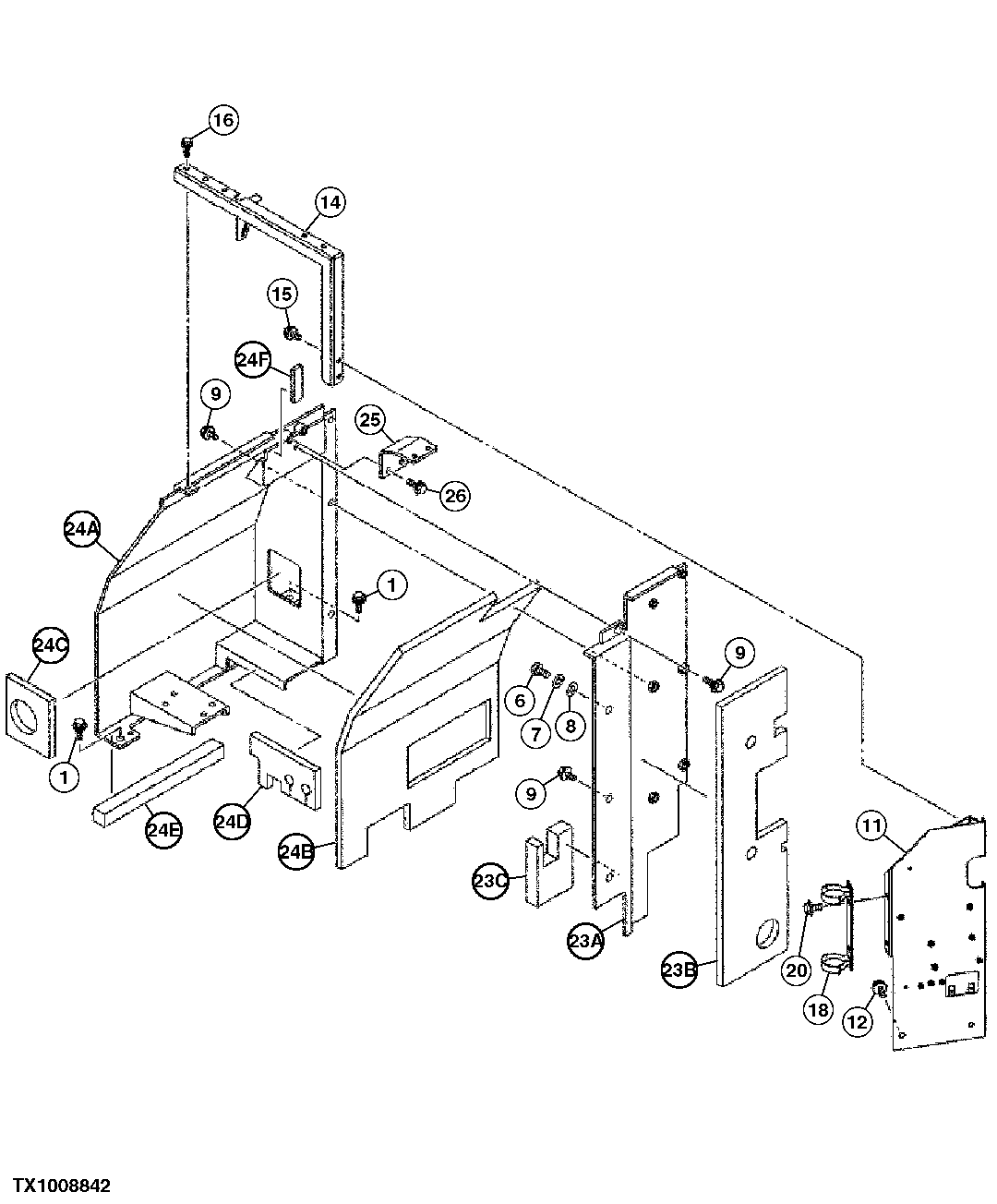

LEFT SIDE COMPARTMENT PANELING (SN 062993- )
