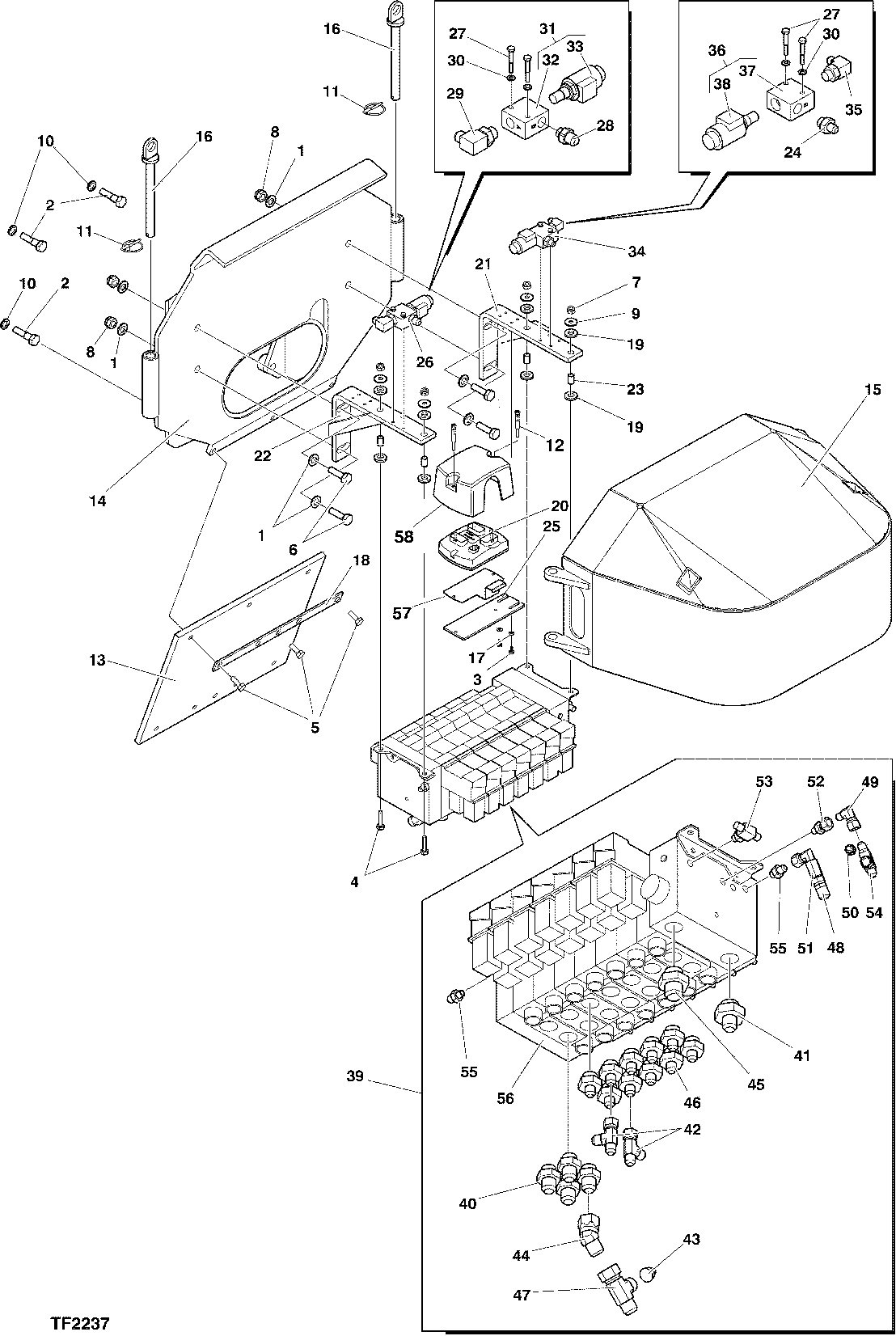

HYDRAULIC SYSTEM LOADER CONTROL VALVE F059536 2410 2.A TF2237 [TF2237]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F003341	8	WASHER	-
2	F003502	4	SCREW	-
3	F003519	4	SCREW	-
4	F003538	4	SCREW	-
5	F003542	3	SCREW	-
6	F003555	4	SCREW	-
7	F003588	4	LOCK NUT	-
8	F003591	4	LOCK NUT	-
9	F003723	4	WASHER	-
10	F005012	4	Lock Washer	-
11	F005208	2	SPRING LOCKING PIN	-
12	F054006	2	SCREW	-
13	F034347	1	RUBBER CLOTH	-
14	F038554	1	BRACKET	-
15	F038583	1	CASE	-
16	F039675	2	PIN	-
17	F040937	2	WASHER	-
18	F044298	1	RETAINER	-
19	F044704	8	WASHER	-
20	F052979	1	CRANE MODULE	-
21	F613599	1	BRACKET	-
22	F613600	1	BRACKET	-
23	F613631	4	SLEEVE	-
24	F005055	1	NIPPLE	-
25	F613644	1	BRACKET	-
26	F613745	1	VALVE	-
27	F003469	4	SCREW	-
28	F005060	1	Fitting	-
29	F012592	1	Elbow Fitting	-
30	F040937	4	WASHER	-
31	F058724	1	CONTROL VALVE	-
32	F058725	1	HOUSING	-
33	F015362	1	VALVE	-
34	F613744	1	VALVE	-
35	F024402	1	Elbow Fitting	-
36	F058723	1	CONTROL VALVE	-
37	F058725	1	HOUSING	-
38	F017786	1	VALVE	-
39	F613645	1	VALVE	-
40	F005063	4	NIPPLE	-
41	F005064	1	NIPPLE	-
42	F005073	2	Tee Fitting	-
43	F005078	1	Reducer	-
44	F005089	1	ELBOW NIPPLE	-
45	F005095	1	NIPPLE	-
46	F010919	10	NIPPLE	-
47	F012532	1	Tee Fitting	-
48	F017320	1	MEASURING NIPPLE	-
49	F022417	2	Elbow Fitting	-
50	F023014	1	Fitting	-
51	F024364	1	Fitting	-
52	F024875	1	CONNECTION	-
53	F026606	1	TEE FITTING	-
54	F048279	1	REVERSING VALVE	-
55	F005057	2	Fitting	-
56	F059119	1	VALVE	-
57	F054008	1	BRACKET	-
58	F054007	1	COVER	-

HYDRAULIC SYSTEM LOADER CONTROL VALVE F059536 2410 2.A TF2237 [TF2237]
