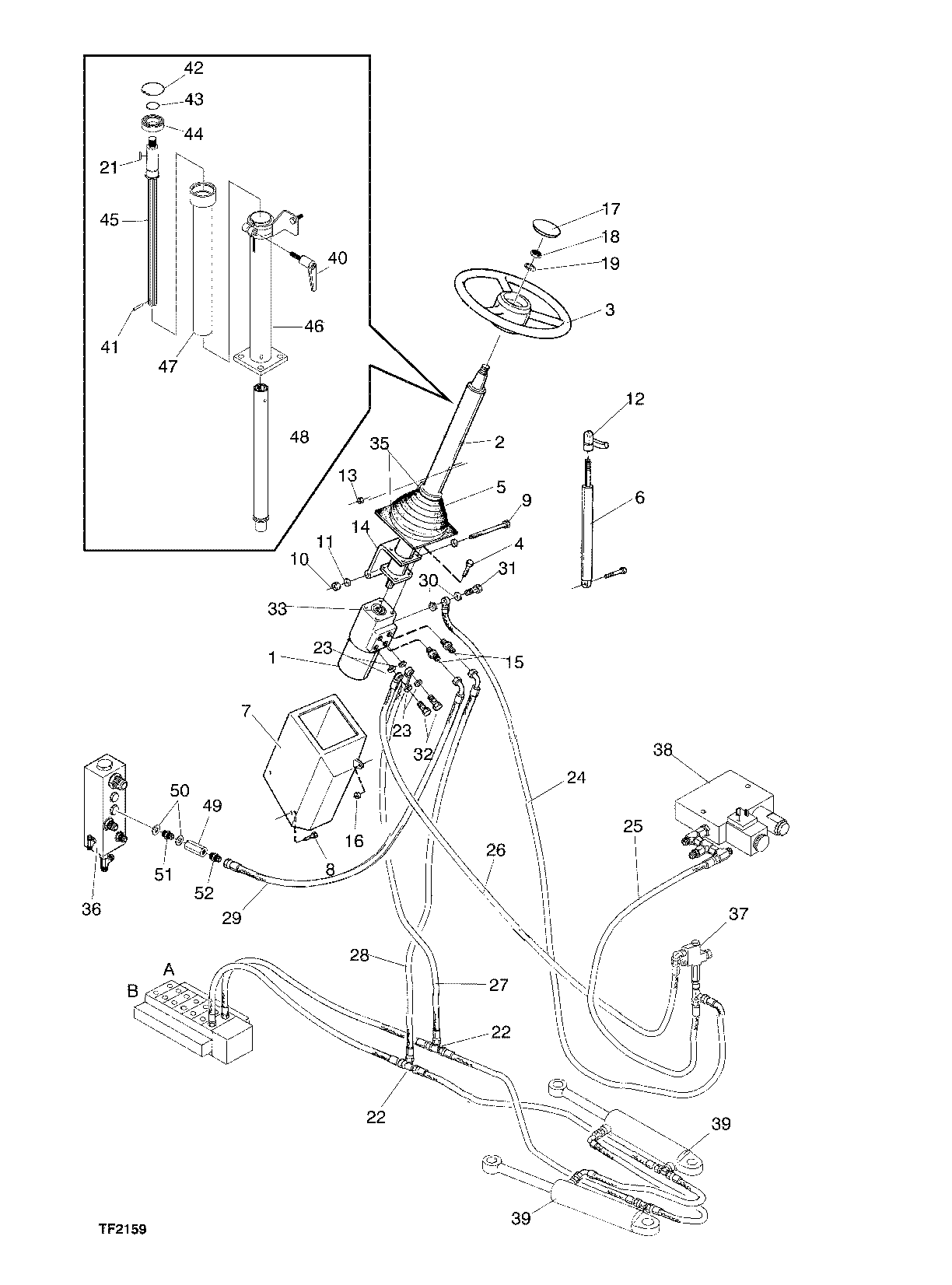

HYDRAULIC SYSTEM HYDRAULIC MOUNTING, STEERING WHEEL F059536 2510 2.A TF2159 [TF2159]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F015554	1	STEERING	-
2	F044379	1	STEERING COLUMN	-
3	F018262	1	STEERING WHEEL	-
4	F003536	4	SCREW	-
5	F045820	1	BELLOW	-
6	F045267	1	GAS SPRING	-
7	F044808	1	CONSOLE	-
8	F003523	4	SCREW	-
9	F015573	1	SCREW	-
10	F003588	1	LOCK NUT	-
11	F003339	1	WASHER	-
12	F016070	1	BRACKET	-
13	F003587	1	LOCK NUT	-
14	F044385	1	BRACKET	-
15	F005061	2	Fitting	-
16	F003590	1	LOCK NUT	-
17	F018263	1	BLIND CAP	-
18	F003352	1	NUT	-
19	F003341	1	WASHER	-
21	F017860	1	WEDGE	-
22	F005087	2	T-CONNECTION	-
23	F005168	4	SEAL RING	-
24	F041544	1	HOSE-ASSY	-
25	F057044	1	Hydraulic Hose	-
26	F041540	1	HOSE-ASSY	-
27	F041543	1	HOSE-ASSY	-
28	F041542	1	HOSE-ASSY	-
29	F041541	1	HOSE-ASSY	-
30	F005164	2	SEAL RING	-
31	F012789	1	BANJO SCREW	-
32	F005557	2	BANJO SCREW	-
33	F045406	2	SLIDE BEARING	-
34	-------	1	O-RING	-
35	F005334	5	Tie Band	-
36	F614371	1	VALVE BLOCK ASSY	-
37	F041246	1	VALVE BLOCK ASSY	-
38	F041279	1	VALVE ASSY	-
39	F022235	1	CYLINDER	-
40	F044388	1	HAND LEVER	-
41	F044389	1	SLIDE PIN	-
42	F003371	1	CIRCLIP	-
43	F008487	1	CIRCLIP	-
44	F044387	1	BALL BEARING	-
45	F044364	1	SHAFT	-
46	F044365	1	PIPE	-
47	F044363	1	PIPE	-
48	F044366	1	PIPE	-
49	F056757	1	CHECK VALVE	-
50	F005168	2	SEAL RING	-
51	F004360	1	NIPPLE	-
52	F005061	1	Fitting	-
-	F041144	1	STEERING WHEEL	-

HYDRAULIC SYSTEM HYDRAULIC MOUNTING, STEERING WHEEL F059536 2510 2.A TF2159 [TF2159]
