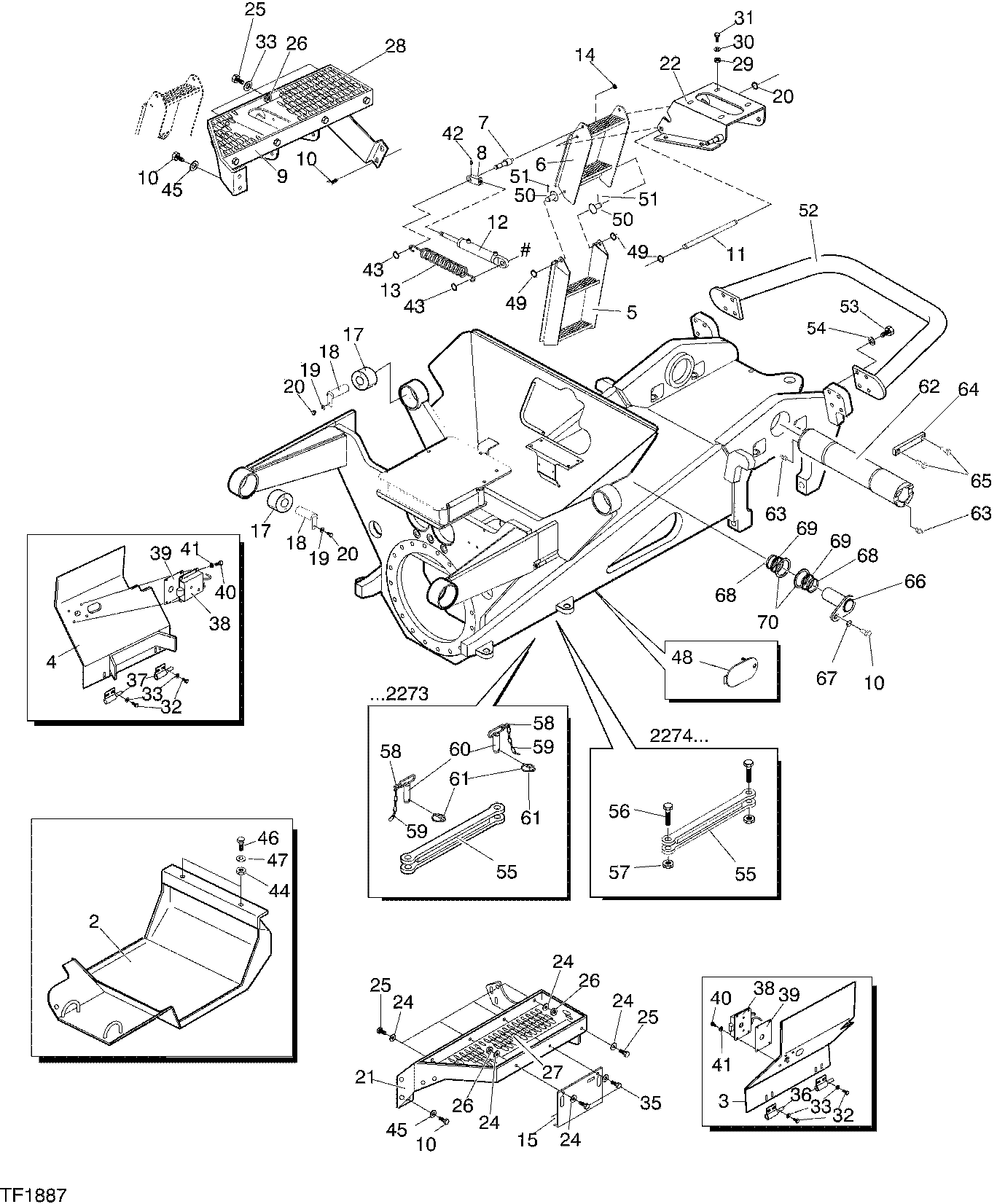

FRAME, PROTECTION PLATES FRONT FRAME F059536 6110 2 TF1887 [TF1887]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F613380	1	FRONT FRAME	-
2	F603995	1	UNDERSHIELD	-
3	F612031	1	HATCH ASSY	-
4	F612033	1	HATCH ASSY	-
5	F041163	1	STAIR	-
6	F602163	1	STAIRS	-
7	F038687	1	PIN	-
8	F041161	1	SLIDE ASSY	-
9	F038656	1	FOOT BOARD	-
10	F003549	12	SCREW	-
11	F041173	1	SHAFT	-
12	F041309	1	HYDRAULIC CYLINDER	-
13	F041310	1	DRAW SPRING	-
14	F017875	1	LOCK NUT	-
15	F050571	1	BRACKET	-
17	F004531	4	DAMPER	-
18	F010363	4	SHAFT	-
19	F003338	4	WASHER	-
20	F003524	4	SCREW	-
21	F039696	1	FOOT BOARD	-
22	F602162	1	HOLDER ASSY	-
24	F003722	14	WASHER	-
25	F003525	12	SCREW	-
26	F003587	14	LOCK NUT	-
27	F039698	1	FOOT BOARD	-
28	F041111	1	PLATFORM	-
29	F003592	4	Lock Nut	-
30	F003341	8	WASHER	-
31	F003554	4	SCREW	-
32	F003524	12	SCREW	-
33	F003338	18	WASHER	-
35	F040932	2	SCREW	-
36	F039738	2	HINGE	-
37	F036834	2	HINGE	-
38	F055176	2	LOCK	-
39	F601483	2	PLATE	-
40	F003516	8	SCREW	-
41	F003585	8	LOCK NUT	-
42	F003728	2	GREASE NIPPLE	-
43	F003722	3	WASHER	-
44	F003591	2	LOCK NUT	-
45	F005012	8	Lock Washer	-
46	F003502	2	SCREW	-
47	F003341	2	WASHER	-
48	F611989	1	CAP ASSY	-
49	F017333	4	WASHER	-
50	F041174	2	COTTER PIN	-
51	F002755	4	SPLIT PIN	-
52	F045095	1	PROTECTION BOW	-
53	F003558	8	SCREW	-
54	F003342	8	WASHER	-
55	F043340	1	BAR	-
56	F030752	2	SCREW	-
57	F003594	2	Lock Nut	-
58	F028806	2	LINK	-
59	F029269	2	LINK CHAIN	-
60	F041993	2	SHAFT ASSY	-
61	F023522	2	RING SPLINE	-
62	F036802	1	AXE	-
63	F003728	2	GREASE NIPPLE	-
64	F001294	1	Strap	-
65	F003551	2	SCREW	-
66	F015138	2	SHAFT	-
67	F015147	2	WASHER	-
68	F015139	4	SPACER	-
69	F005507	4	SEAL	-
70	F015140	4	WASHER	-

FRAME, PROTECTION PLATES FRONT FRAME F059536 6110 2 TF1887 [TF1887]
