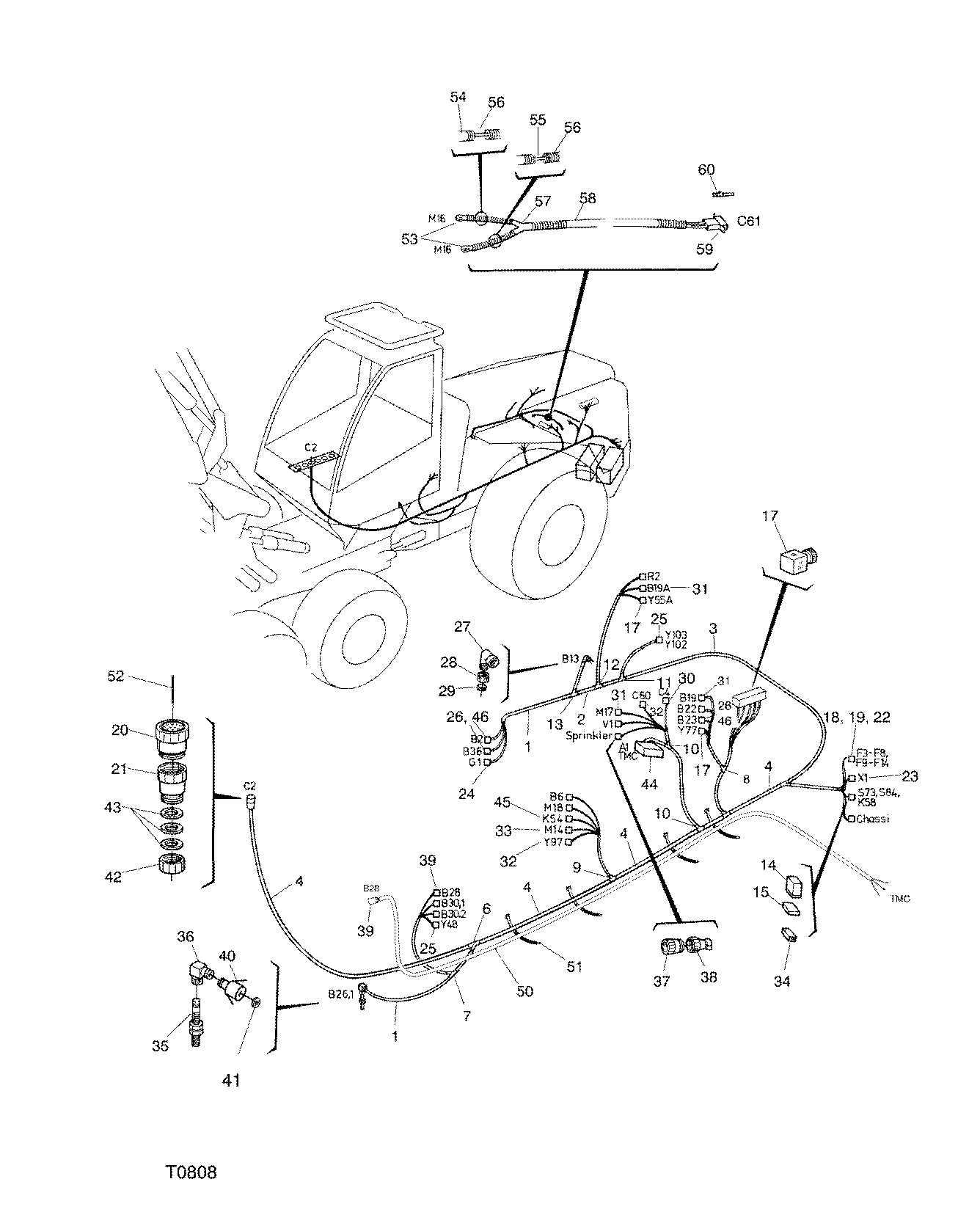

ELECTRICAL SYSTEM CABLE HARNESSES F038324 31 8 ( 1203 - ) T0808 [T0808]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	-------	1	O-RING	-
5	-------	1	O-RING	-
6	F033456	2	Y-CONNECTION	-
7	F018960	1	Y-CONNECTION	-
8	F040638	1	T-CONNECTION	-
9	F040668	2	T-CONNECTION	-
10	F040667	2	T-CONNECTION	-
11	F040666	1	T-CONNECTION	-
12	F040665	1	T-CONNECTION	-
13	F040664	1	Tee Fitting	-
14	F005290	1	RELAY	-
15	F015010	1	BRACKET	-
16	F005289	1	Relay	-
17	F025731	7	CONNECTOR	-
18	F041329	2	Socket	-
19	F041330	2	Socket	-
20	F013788	1	CONNECTOR	-
21	F013784	1	EXTENDER	-
22	F041331	2	CONTACT	-
23	F005320	1	Socket	-
24	F015164	1	Guard	-
25	F040661	2	CONNECTOR HOUSING	-
26	F024301	2	CONNECTOR	-
27	F027028	1	ELBOW	-
28	F027029	1	Nut	-
29	F027030	1	CIRCLIP	-
30	F013883	1	CONNECTOR HOUSING	-
31	F011415	3	Electrical Connector Assy	-
32	F005263	3	Electrical Connector Assy	-
33	F011415	1	Electrical Connector Assy	-
34	F005398	2	Elec. Connector Housing	-
35	F040637	1	SENSOR	-
36	F040636	1	CONTACT	-
37	F023473	1	CONNECTOR HOUSING	-
38	F023470	1	CONNECTOR	-
39	F040657	1	CONNECTOR HOUSING	-
40	F041303	1	CLAMP	-
41	F041304	1	GASKET	-
42	F038227	1	NUT	-
43	F038228	3	SEAL	-
44	F040018	1	CONNECTING BOX	-
45	F017866	2	Electrical Connector Assy	-
46	F040655	2	GASKET	-
47	F043448	1	CIRCUIT CARD	-
48	F015018	1	CONNECTOR	-
49	F004575	2	DIODE	-
50	F047008	1	CABLE	-
51	F012942	10	Tie Band	-
52	F055175	37	CONNECTOR	-
53	F015355	2	CABLE LUG	-
54	-------	1	O-RING	-
55	-------	1	O-RING	-
56	-------	1	O-RING	-
57	F035217	1	Y-CONNECTION	-
58	-------	1	O-RING	-
59	F005264	1	Elec. Connector Housing	-
60	F005267	2	PIN	-
-	F040011	1	CABLE HARNESS	-
-	F040012	1	CABLE HARNESS	-

ELECTRICAL SYSTEM CABLE HARNESSES F038324 31 8 ( 1203 - ) T0808 [T0808]

Нет текстового описания
