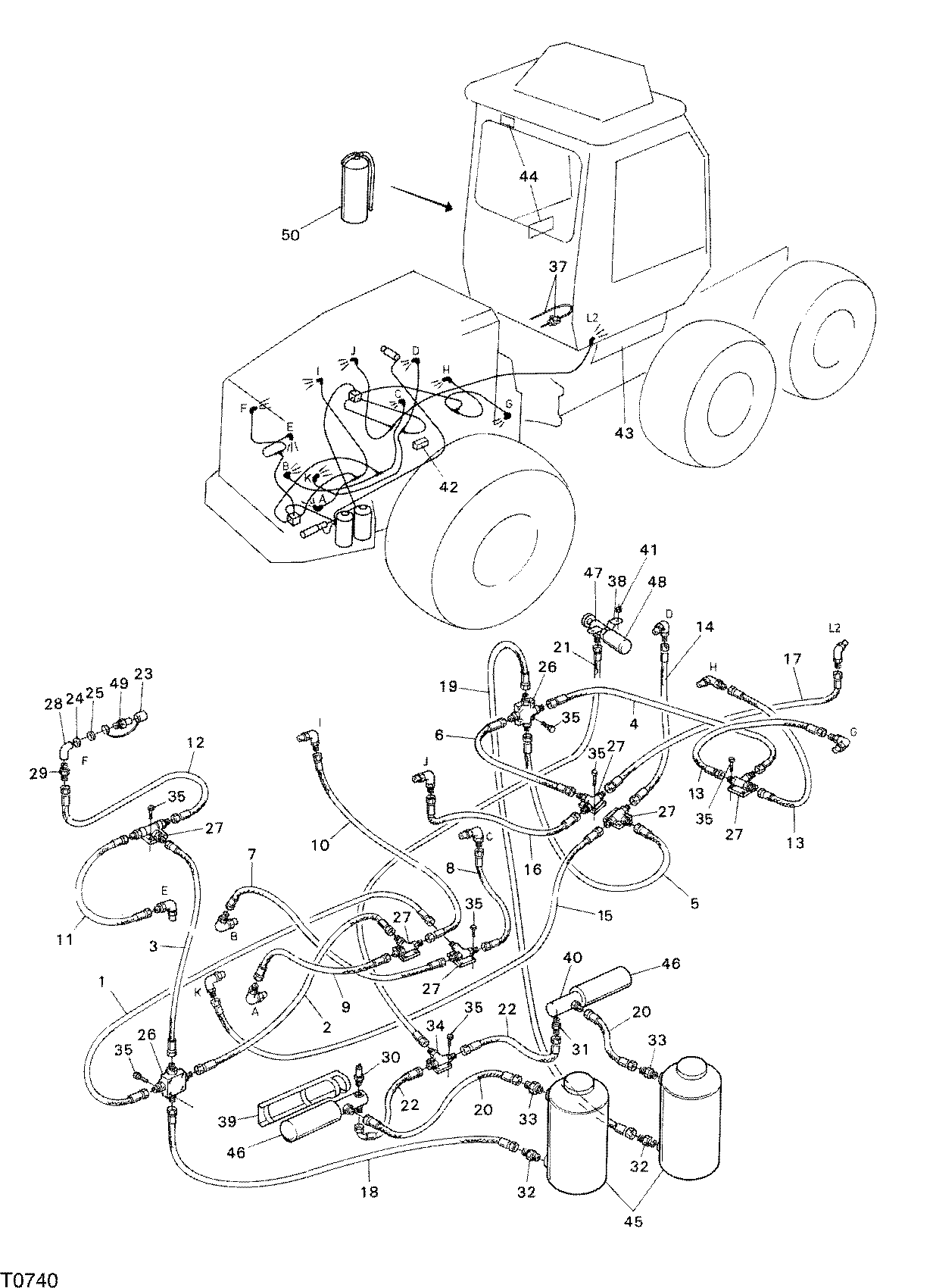

OPTIONAL EQUIPMENTS SPRINKLER SYSTEM F044953 81 2 ( 737 - ) T0740 [T0740]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F021199	1	HOSE-ASSY	-
2	F021198	1	HOSE-ASSY	-
3	F011166	1	HOSE-ASSY	-
4	F021197	1	HOSE-ASSY	-
5	F021196	1	HOSE-ASSY	-
6	F021195	1	HOSE-ASSY	-
7	F021194	1	HOSE-ASSY	-
8	F021193	1	HOSE-ASSY	-
9	F021192	1	HOSE-ASSY	-
10	F021191	1	HOSE-ASSY	-
11	F021190	1	HOSE-ASSY	-
12	F021189	1	HOSE-ASSY	-
13	F021188	2	HOSE-ASSY	-
14	F021187	1	HOSE-ASSY	-
15	F021186	1	HOSE-ASSY	-
16	F021185	1	HOSE-ASSY	-
17	F021184	1	HOSE-ASSY	-
18	F021183	1	HOSE-ASSY	-
19	F021182	1	HOSE-ASSY	-
20	F021181	2	HOSE-ASSY	-
21	F021180	1	HOSE-ASSY	-
22	F021179	2	HOSE-ASSY	-
23	F013091	11	CAP	-
24	F021489	11	WASHER	-
25	F021498	11	WASHER	-
26	F021492	2	T-CONNECTION	-
27	F013070	6	T-CONNECTION	-
28	F018138	11	ELBOW	-
29	F004360	11	NIPPLE	-
30	F021496	1	RELIEF VALVE	-
31	F004354	4	NIPPLE	-
32	F004372	2	NIPPLE	-
33	F010617	2	NIPPLE	-
34	F021154	1	T-CONNECTION	-
35	F012683	24	SCREW	-
36	F015914	8	SCREW	-
37	-------	1	O-RING	-
38	F021491	1	HOLDER	-
39	F010521	2	HOLDER	-
40	F021495	2	VALVE	-
41	F003587	2	LOCK NUT	-
42	F007771	1	SOLENOID VALVE	-
43	-------	1	O-RING	-
44	-------	1	O-RING	-
45	F021499	2	REPLACED	-
46	F010520	2	CARTRIDGE	-
47	F013100	1	FLOW CONTROL VALVE	-
48	F021490	1	CARTRIDGE	-
49	F021502	11	NOZZLE	-
50	F004515	1	EXTINGUISHER	-
-	F010522	2	RESERVOIR	-
