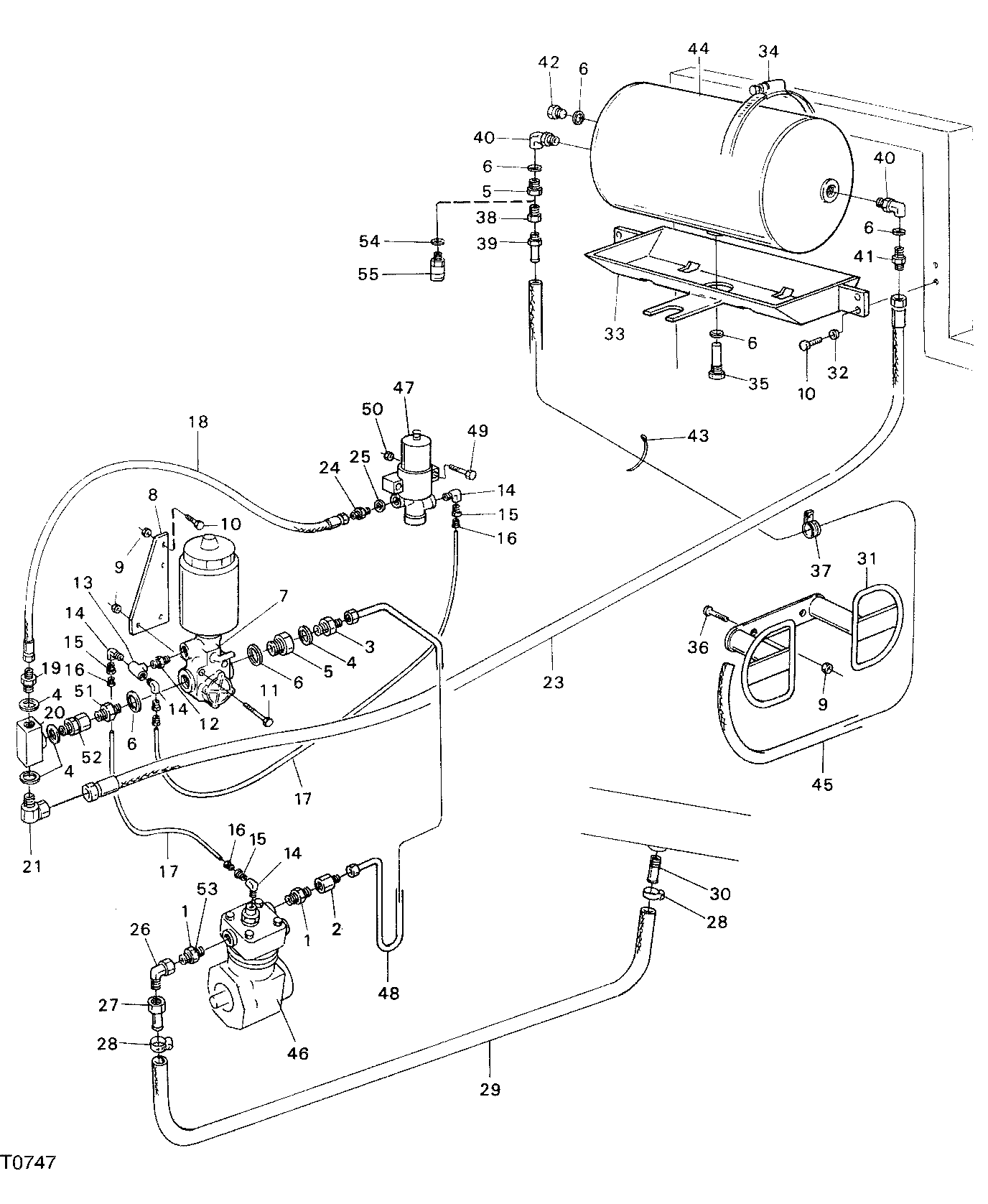

OPTIONAL EQUIPMENTS AIR PRESSURE SYSTEMS F044953 81 20 ( 737 - ) T0747 [T0747]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F015722	1	PIPE CONNECTION	-
2	F025151	1	PIPE CONNECTION	-
3	F004357	1	NIPPLE	-
4	F005166	2	SEAL RING	-
5	F025475	2	BUSHING	-
6	F025423	6	Sealing Washer	-
7	F013927	1	ANTI FREEZE DEVICE	-
8	F024012	1	BRACKET	-
9	F003587	6	LOCK NUT	-
10	F003523	6	SCREW	-
11	F003478	2	SCREW	-
12	F003631	1	PIPE CONNECTION	-
13	F025480	1	T-PIPE	-
14	F025479	4	ELBOW NIPPLE	-
15	F025471	4	NIPPLE	-
16	F025472	4	NIPPLE	-
17	F025473	1	TUBE	-
18	F028711	1	HOSE-ASSY	-
19	F005055	1	NIPPLE	-
20	F025474	1	T-PIPE	-
21	F028738	1	Elbow Fitting	-
22	F028739	1	NIPPLE	-
23	F028712	1	HOSE-ASSY	-
24	F031740	1	NIPPLE	-
26	F028713	1	ELBOW NIPPLE	-
27	F028523	1	PIPE	-
28	F003671	2	HOSE CLAMP	-
29	F024005	1	HOSE	-
30	F022284	1	EXHAUST TUBE	-
31	F023945	1	HOSE HOLDER	-
32	F003338	4	WASHER	-
33	F023939	1	CONSOLE	-
34	F025785	2	HOSE CLAMP	-
35	F014913	1	WATER VALVE	-
36	F005497	2	Screw	-
37	F015014	3	HOSE CLAMP	-
38	F004276	1	NIPPLE	-
39	F025804	1	HOSE NIPPLE	-
40	F025786	2	ELBOW	-
41	F028710	1	NIPPLE	-
42	F025787	1	PLUG	-
43	F017109	15	BINDER	-
44	F013926	1	TANK	-
45	-------	1	O-RING	-
46	F003027	1	COMPRESSOR	-
47	F003050	1	REGULATOR	-
48	F027757	1	PIPE	-
49	F003476	2	SCREW	-
50	F003587	2	LOCK NUT	-
51	F028679	1	NIPPLE	-
52	F004369	1	HOSE CONNECTION	-
53	F028739	1	NIPPLE	-
54	F005166	1	SEAL RING	-
55	F031965	1	QUICK COUPLING	-
-	F024672	1	NIPPLE	-
-	F015423	1	RESERVOIR	-
-	F015422	1	CENTRE PLATE	-

OPTIONAL EQUIPMENTS AIR PRESSURE SYSTEMS F044953 81 20 ( 737 - ) T0747 [T0747]
