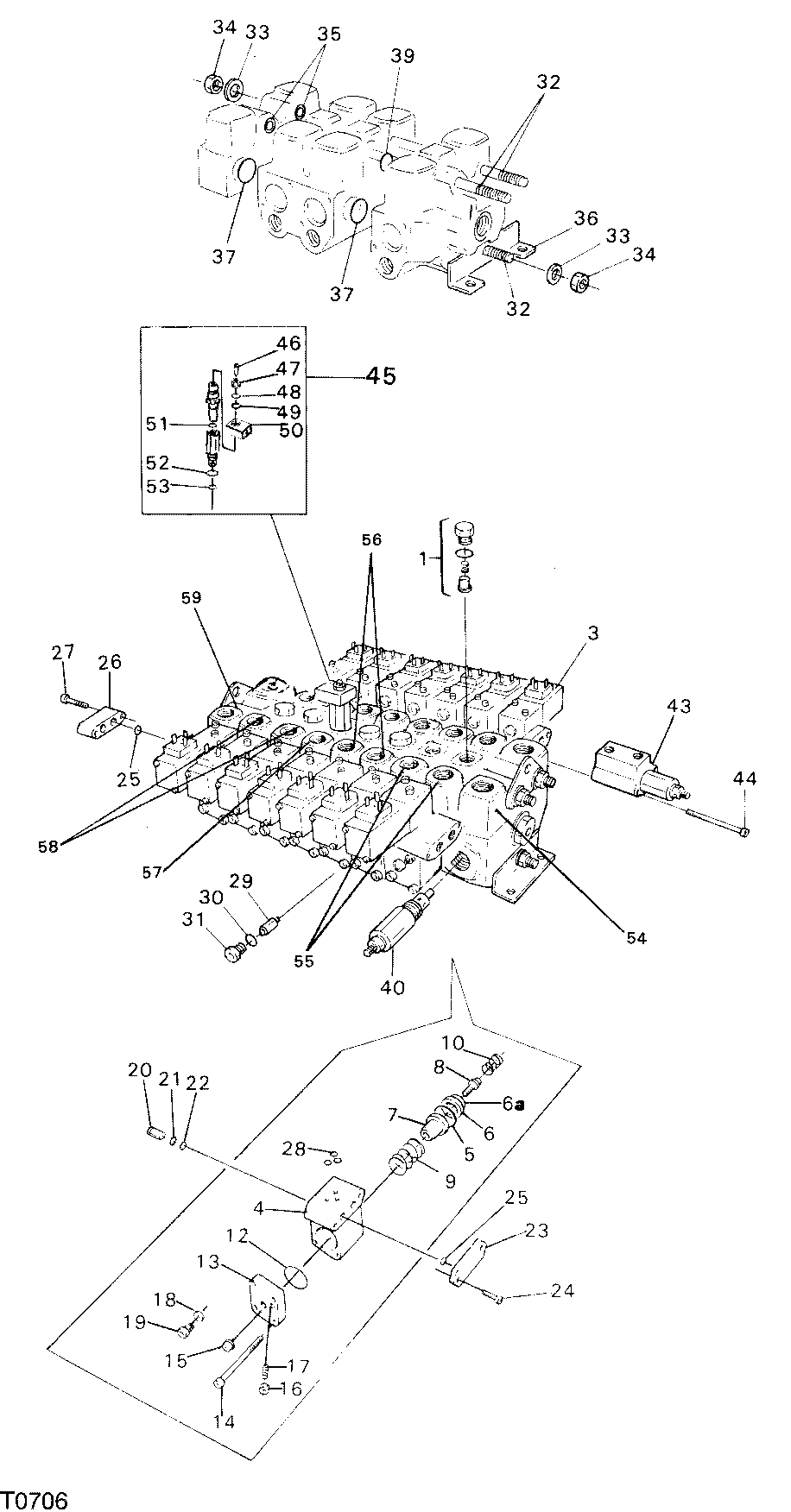

HYDRAULIC SYSTEM VALVE F044953 41 20 ( 737 - ) T0706 [T0706]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F004615	6	CHECK VALVE	-
3	F004557	14	CONTROL VALVE	-
4	F004617	14	CYLINDER	-
5	F004624	14	O-RING	-
6	F012844	14	SUPPORT RING	-
7	F012849	14	GUIDE	-
8	F005611	14	SCREW	-
9	F004592	14	SPRING	-
10	F004589	14	SPRING	-
12	F004607	14	O-RING	-
13	F004619	14	COVER	-
14	F012820	14	SCREW	-
15	F005610	14	LOCK NUT	-
16	F005609	14	Nut	-
17	F012847	14	STOP SCREW	-
18	F005162	14	SEAL RING	-
19	F010192	14	PLUG	-
20	F005617	6	PIPE	-
21	F012874	24	RING	-
22	F012875	24	O-RING	-
23	F012850	1	PLATE	-
24	F012851	2	SCREW	-
25	F004561	8	O-RING	-
26	F012852	2	PLATE	-
27	F017207	4	CAP SCREW	-
28	F004560	42	O-RING	-
29	F019377	1	RELIEF CARTRIDGE	-
30	F004565	14	O-RING	-
31	F012856	14	PLUG	-
32	F004547	1	PIN SCREW	-
33	F003170	6	WASHER	-
34	F003565	6	NUT	-
35	F004581	12	SHIM	-
36	F012877	2	HOLDER	-
37	F012878	12	O-RING	-
39	F012879	12	O-RING	-
40	F012880	1	RELIEF CARTRIDGE	-
43	F019378	1	RELIEF VALVE	-
44	F003396	2	SCREW	-
45	F012916	1	FEED REDUCER	-
46	F012917	1	SET SCREW	-
47	F019379	1	LOCK NUT	-
48	F012918	2	O-RING	-
49	F012919	2	SUPPORT RING	-
50	F012920	1	CONNECTION	-
51	F005500	1	O-RING	-
52	F004569	1	O-RING	-
53	F012921	1	SUPPORT RING	-
54	F035785	1	VALVE BLOCK SECTION	-
55	F035786	2	VALVE BLOCK SECTION	-
56	F035787	2	VALVE BLOCK SECTION	-
57	F035788	1	VALVE BLOCK SECTION	-
58	F035789	2	VALVE BLOCK SECTION	-
59	F035790	1	VALVE BLOCK SECTION	-
6A	F004623	14	O-RING	-
-	F004605	2	Pressure Relief Valve	-
-	F004604	3	RELIEF CARTRIDGE	-
-	F004602	4	RELIEF CARTRIDGE	-
-	F004600	2	RELIEF CARTRIDGE	-
-	F004599	1	RELIEF CARTRIDGE	-
-	F004598	1	RELIEF CARTRIDGE	-
-	F014386	1	VALVE	-

HYDRAULIC SYSTEM VALVE F044953 41 20 ( 737 - ) T0706 [T0706]
