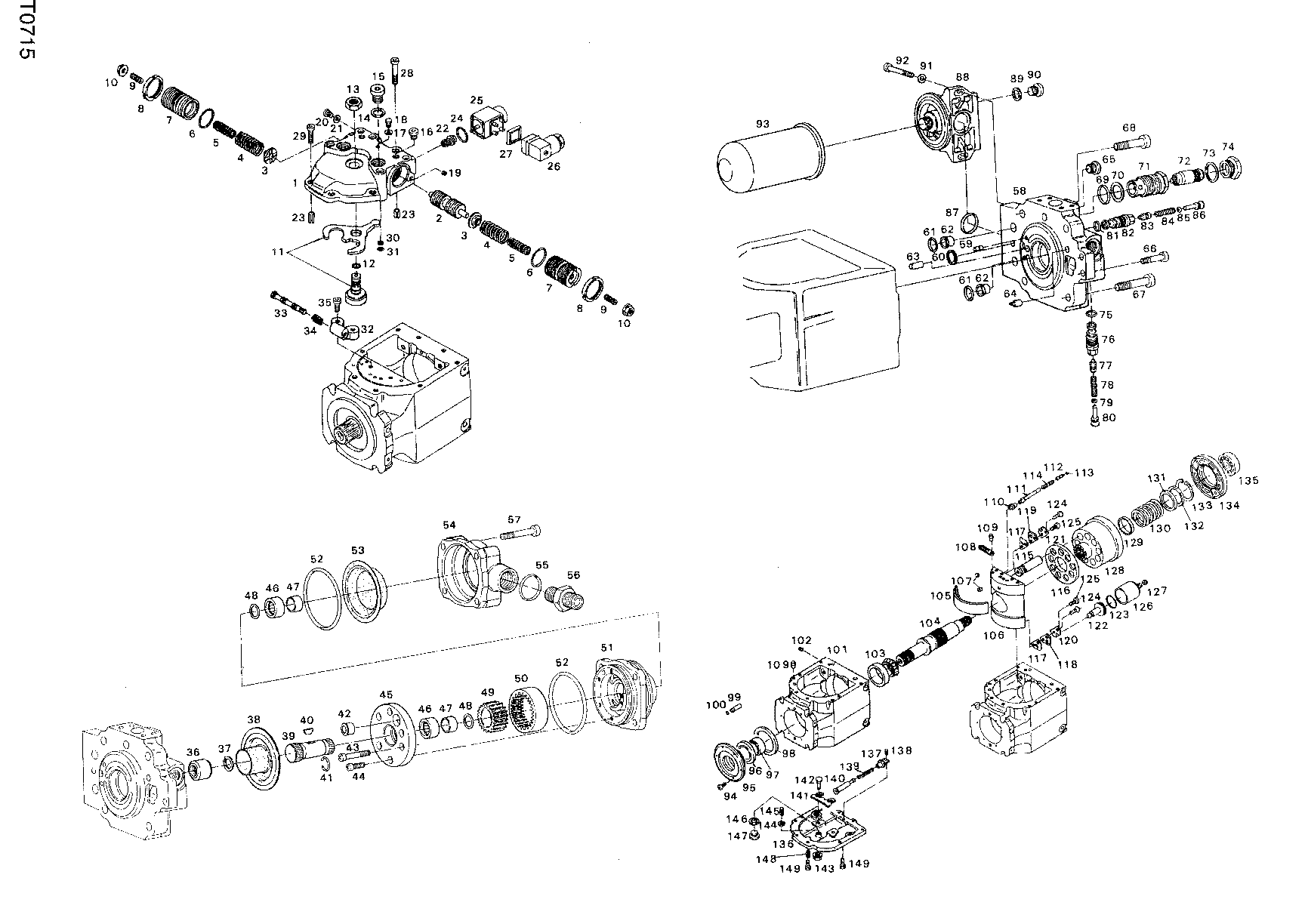

HYDRAULIC SYSTEM PUMP F044953 41 38 ( 737 - ) T0715 [T0715]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F034918	1	CAP	-
2	F034919	1	PISTON	-
3	F034920	2	SPRING RETAINER	-
4	F031777	2	SPRING	-
5	F031778	2	SPRING	-
6	F023408	2	O-RING	-
7	F030893	2	PLUG	-
8	F034922	2	NUT	-
9	F031779	2	STOP SCREW	-
10	F031780	2	NUT	-
11	F031781	1	REPLACED	-
12	F017788	1	O-RING	-
13	F034923	1	NUT	-
14	F003701	1	COPPER WASHER	-
15	F034924	1	PLUG	-
16	F034459	2	PLUG	-
17	F031782	2	SEAL	-
18	F003517	1	SCREW	-
19	F034889	2	PLUG	-
20	F031436	1	PLUG	-
21	F003697	1	COPPER WASHER	-
22	F031783	1	VALVE	-
23	F034925	2	SPRING PIN	-
24	F023409	2	O-RING	-
25	F018284	2	SOLENOID	-
26	F034926	2	CONNECTOR	-
27	F034927	2	SEAL	-
28	F003421	6	SCREW	-
29	F003417	4	SCREW	-
30	F034928	1	WASHER	-
31	F031784	1	O-RING	-
32	F031785	1	HOUSING	-
33	F031786	1	SPOOL	-
34	F030897	2	SPRING	-
35	F031385	2	SCREW	-
36	F031357	1	MUFF	-
37	F031359	1	CIRCLIP	-
38	F031358	1	STRAINER	-
39	F034929	1	SHAFT	-
40	F030886	1	WEDGE	-
41	F030885	1	CIRCLIP	-
42	F034930	1	VALVE	-
43	F003406	2	SCREW	-
44	F003400	4	SCREW	-
45	F034931	1	FLANGE	-
46	F023413	2	NEEDLE BEARING	-
47	F030884	2	RING	-
48	F034932	2	RING	-
49	F030887	1	PUMP WHEEL	-
50	F030888	1	RING	-
51	F034933	1	HOUSING	-
52	F031774	2	O-RING	-
53	F031376	1	STRAINER	-
54	F031377	1	FLANGE	-
55	F034934	1	O-RING	-
56	F018277	1	NIPPLE	-
57	F007615	4	SCREW	-
58	F034935	1	HOUSING	-
59	F034936	2	SLIDE PIN	-
60	F030883	1	SEAL RING	-
61	F023418	2	O-RING	-
62	F031362	2	BUSHING	-
63	F034937	1	SLIDE PIN	-
64	F034938	1	SLIDE PIN	-
65	F031311	2	PLUG	-
66	F003411	2	SCREW	-
67	F030466	2	SCREW	-
68	F034945	2	SCREW	-
69	F023411	2	O-RING	-
70	F023412	2	SUPPORT RING	-
71	-------	2	O-RING	-
72	-------	2	O-RING	-
73	-------	2	O-RING	-
74	-------	2	O-RING	-
75	F017788	1	O-RING	-
76	-------	1	O-RING	-
77	-------	1	O-RING	-
78	F034939	1	SPRING	-
79	F018282	1	SHIM	-
80	-------	1	O-RING	-
81	F018788	1	SEAL KIT	-
82	-------	1	O-RING	-
83	-------	1	O-RING	-
84	F034940	1	SPRING	-
85	F018282	1	SHIM	-
86	-------	1	O-RING	-
87	F023429	1	O-RING	-
88	F023427	1	FLANGE	-
89	F008223	1	COPPER WASHER	-
90	F034941	1	REPLACED	-
91	F017318	2	SPRING WASHER	-
92	F013638	2	SCREW	-
93	F008231	1	FILTER	-
94	F017300	6	SCREW	-
95	F034942	1	CAP	-
96	F019387	1	SEAL	-
97	F031327	1	RING	-
98	F031328	1	SHIM	-
99	F034943	2	BOLT	-
100	F031757	2	O-RING	-
101	F034944	1	HOUSING	-
102	F031753	1	SCREW	-
103	F023415	1	BEARING	-
104	F034914	1	SHAFT	-
105	F023416	2	NEEDLE BEARING	-
106	-------	1	O-RING	-
107	F034849	6	PIN	-
108	F034915	2	PLATE	-
109	F034916	4	BOLT	-
110	F031337	1	PIN	-
111	F031338	1	BOLT	-
112	F034917	1	BOLT	-
113	F031758	1	O-RING	-
114	F031767	1	SPRING	-
115	F034998	9	PISTON	-
116	F034999	1	DISC	-
117	F031401	4	SHIM	-
118	F031341	2	SPACER	-
119	F031342	2	SPACER	-
120	F035000	2	FLAT PIECE	-
121	F035001	2	FLAT PIECE	-
122	F031343	4	PISTON	-
123	F031344	4	SEAL RING	-
124	F035002	4	SCREW	-
125	F008646	4	SCREW	-
126	F031345	4	BUSHING	-
127	F030876	4	SLIDE PIN	-
128	F035003	1	CYLINDER BLOCK	-
129	F031768	1	SUPPORT RING	-
130	F031769	1	SPRING	-
131	F031347	1	WASHER	-
132	F031351	2	SHIM	-
133	F031352	1	CIRCLIP	-
134	F035004	1	GUIDE	-
135	F023417	1	ROLLER BEARING	-
136	F035005	1	PIN	-
137	F035007	1	SPRING RETAINER	-
138	F002904	2	SPRING PIN	-
139	F031771	1	SPRING	-
140	F035006	1	SPRING RETAINER	-
141	F031355	1	YOKE	-
142	F030879	2	SCREW	-
143	F031780	2	NUT	-
144	F035008	1	WASHER	-
145	F035009	1	SPRING PIN	-
146	F003701	1	COPPER WASHER	-
147	F034924	1	PLUG	-
148	F034925	2	SPRING PIN	-
149	F003536	10	SCREW	-
-	F031331	1	SHIM	-
-	F023407	1	HYDRAULIC PUMP	-
-	F031776	1	COVER	-
-	F034921	2	SPRING RETAINER	-
-	F023419	1	FEED PUMP	-
-	F022632	2	RELIEF VALVE	-
-	F018281	1	VALVE	-
-	F018283	1	SHIM	-
-	F022633	1	RELIEF VALVE	-
-	F018283	1	SHIM	-
-	F031329	1	SHIM	-
-	F031330	1	SHIM	-
-	F031404	4	SHIM	-
-	F031332	1	SHIM	-
-	F031333	1	SHIM	-
-	F031770	1	COVER	-
-	F031334	1	SHIM	-
-	F031335	1	SHIM	-
-	F031756	1	PLATE	-
-	F031350	3	SHIM	-
-	F035035	1	REPAIR KIT	-
-	F031402	4	SHIM	-
-	F031403	4	SHIM	-
