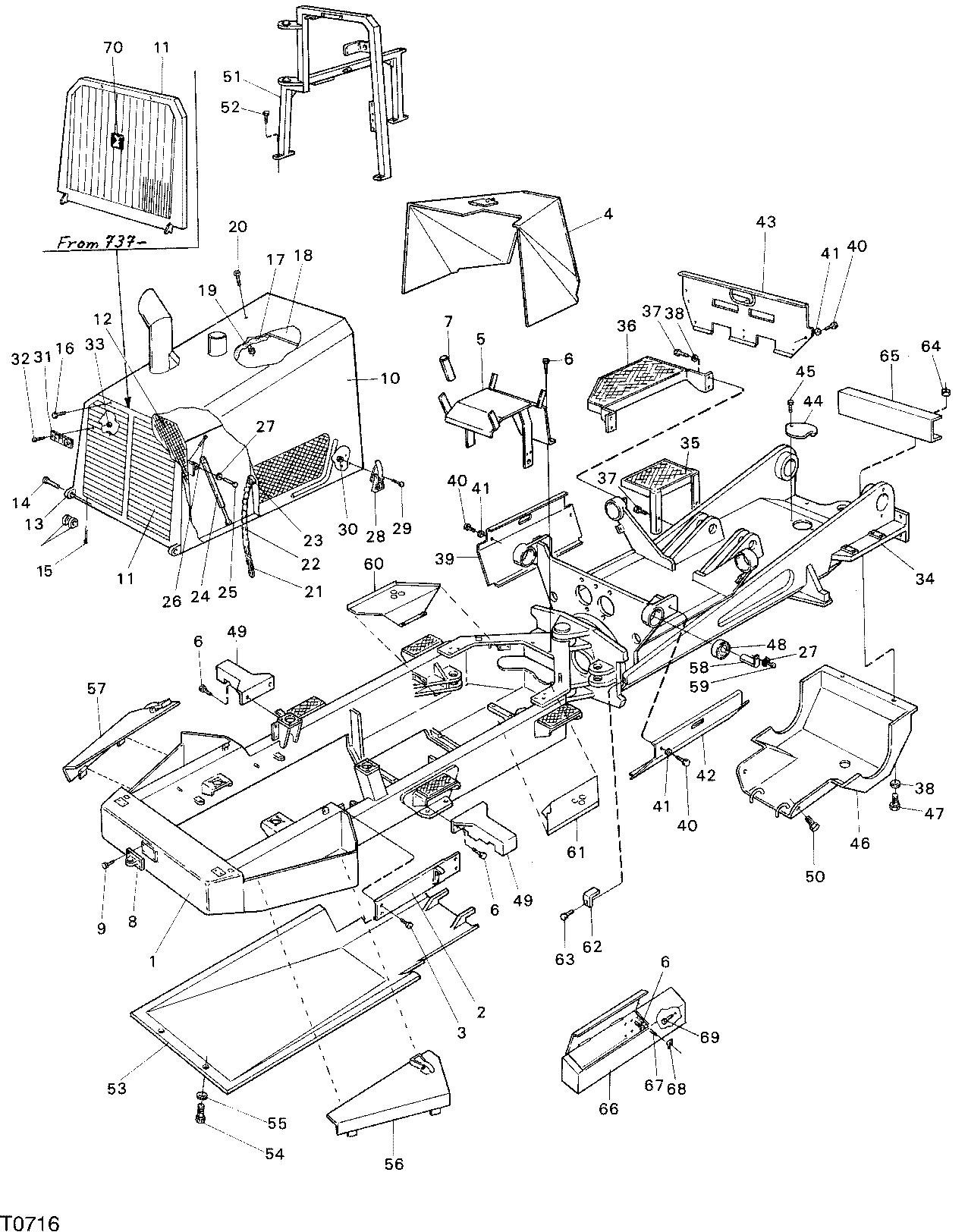

FRAME, PROTECTION PLATES FRAMES F044953 51 2 ( 737 - ) T0716 [T0716]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F018647	1	REAR FRAME	-
2	F014294	1	PLATE	-
3	F003531	4	SCREW	-
4	F019518	1	PROTECTION	-
5	F019675	1	SUPPORT	-
6	F003540	7	SCREW	-
7	F006758	4	HOSE PROTECTION	-
8	F001098	1	PLATE	-
9	F003437	4	Cap Screw	-
10	F014229	1	HOOD	-
11	F025539	1	GUARD SCREEN	-
12	F001047	1	GUARD SCREEN	-
13	F014242	2	CLAMP	-
14	F003606	2	Pin	-
15	F003332	2	SPLIT PIN	-
16	F003494	2	SCREW	-
17	F000909	1	MAT	-
18	F006030	1	PLATE	-
19	F003563	6	NUT	-
20	F003871	6	SCREW	-
21	F002416	2	CHAIN	-
22	F005432	2	HOSE	-
23	F003381	2	WIRE LOCK	-
24	F005188	2	GAS SPRING	-
25	F003601	4	PIVOT PIN	-
26	F003328	4	SPLIT PIN	-
27	F003338	8	WASHER	-
28	F004248	2	CATCH	-
29	F003525	6	SCREW	-
30	F003587	6	LOCK NUT	-
31	F001945	1	LOGO	-
32	F003579	2	SCREW	-
33	F003584	2	LOCK NUT	-
34	F018566	1	FRONT FRAME	-
35	F006986	1	FOOT BOARD	-
36	F014192	1	FOOT BOARD	-
37	F003548	8	SCREW	-
38	F003341	10	WASHER	-
39	F018584	1	HATCH	-
40	F003539	9	SCREW	-
41	F003340	9	WASHER	-
42	F018585	1	HATCH	-
43	F006972	1	PLATE	-
44	F001116	1	COVER	-
45	F003531	2	SCREW	-
46	F014270	1	UNDERSHIELD	-
47	F003556	2	SCREW	-
48	F004531	4	DAMPER	-
49	F006787	1	COVER	-
50	F003445	2	SCREW	-
51	F018632	1	LEG	-
52	F005596	5	SCREW	-
53	F000857	1	UNDERSHIELD	-
54	F003445	2	SCREW	-
55	F003341	2	WASHER	-
56	F019525	1	HATCH	-
57	F001383	1	PLATE	-
58	F010363	4	SHAFT	-
59	F003524	4	SCREW	-
60	F022815	1	CONSOLE	-
61	F021131	1	COVER	-
62	F029824	2	PLATE	-
63	F003542	2	SCREW	-
64	F003568	2	NUT	-
65	F027101	1	PLATE	-
66	F019476	1	TOOL BOX	-
67	F003524	1	SCREW	-
68	F002592	1	WING NUT	-
69	F014904	1	Bolt	-
70	F019355	1	SIGN	-
-	F031178	1	COVER	-
-	F019471	1	PLATE	-

FRAME, PROTECTION PLATES FRAMES F044953 51 2 ( 737 - ) T0716 [T0716]
