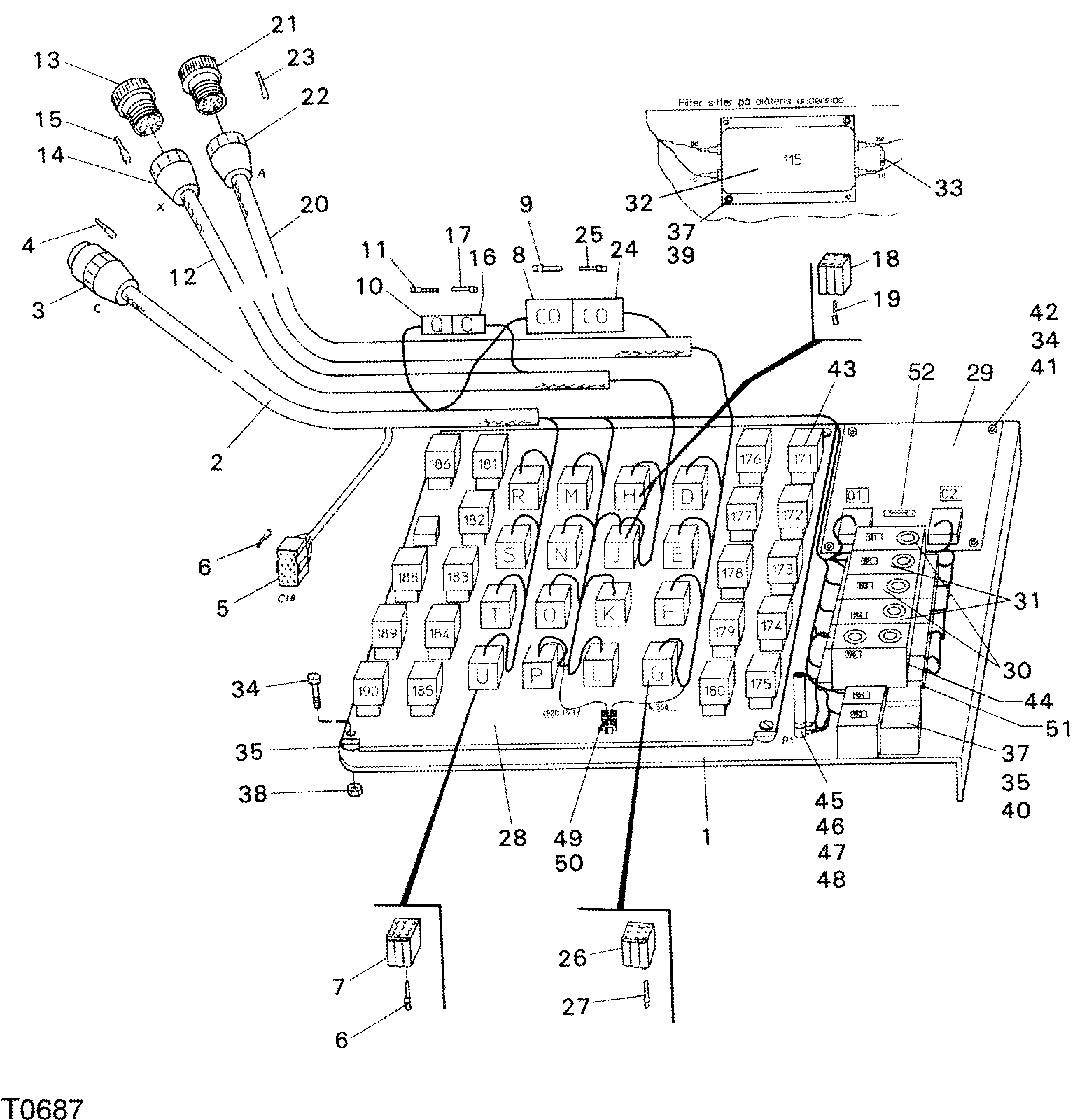

ELECTRICAL SYSTEM LOKOMATIC 90 F044953 33 8 ( 737 - ) T0687 [T0687]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F006797	1	CLAMP	-
2	F020848	1	CABLE HARNESS	-
3	F013789	1	CONNECTOR	-
4	F013785	35	Elec. Connector Terminal	-
5	F010987	1	CONNECTOR	-
6	F005267	81	PIN	-
7	F005265	12	Electrical Connector Assy	-
8	F005263	1	Electrical Connector Assy	-
9	F005268	3	CABLE LUG	-
10	F005265	1	Electrical Connector Assy	-
11	F005267	7	PIN	-
12	F020847	1	CABLE HARNESS	-
13	F015261	1	CONNECTOR HOUSING	-
14	F015248	1	CABLE CLAMP	-
15	F013785	14	Elec. Connector Terminal	-
16	F013883	1	CONNECTOR HOUSING	-
17	F005268	7	CABLE LUG	-
18	F005265	2	Electrical Connector Assy	-
19	F005267	15	PIN	-
20	F020846	1	CABLE HARNESS	-
21	F015333	1	CONNECTOR HOUSING	-
22	F013887	1	CABLE CLAMP	-
23	F013785	29	Elec. Connector Terminal	-
24	F005264	1	Elec. Connector Housing	-
25	F005267	3	PIN	-
26	F005265	4	Electrical Connector Assy	-
27	F005267	30	PIN	-
28	F005693	1	CIRCUIT CARD	-
29	F001153	1	CIRCUIT CARD	-
30	F005360	2	TIME RELAY	-
31	F005361	2	TIME RELAY	-
32	F005353	1	FILTER	-
33	F005332	1	DIODE	-
34	F015544	4	BOLT	-
35	F015272	6	SCREW	-
36	F003320	4	SCREW	-
37	F003319	8	SCREW	-
38	F003585	6	LOCK NUT	-
39	F003584	12	LOCK NUT	-
40	F005290	2	RELAY	-
41	F015567	4	SCREW	-
42	F003583	4	LOCK NUT	-
43	F005290	17	RELAY	-
44	F020730	1	TIME RELAY	-
45	F020731	3	RESISTOR	-
46	F003147	3	SCREW	-
47	F010721	3	WASHER	-
48	F017375	3	SIGN	-
49	F010586	1	CONNECTION	-
50	F004575	1	DIODE	-
51	F013235	1	RAIL	-
52	F055178	1	FUSE	-

ELECTRICAL SYSTEM LOKOMATIC 90 F044953 33 8 ( 737 - ) T0687 [T0687]
