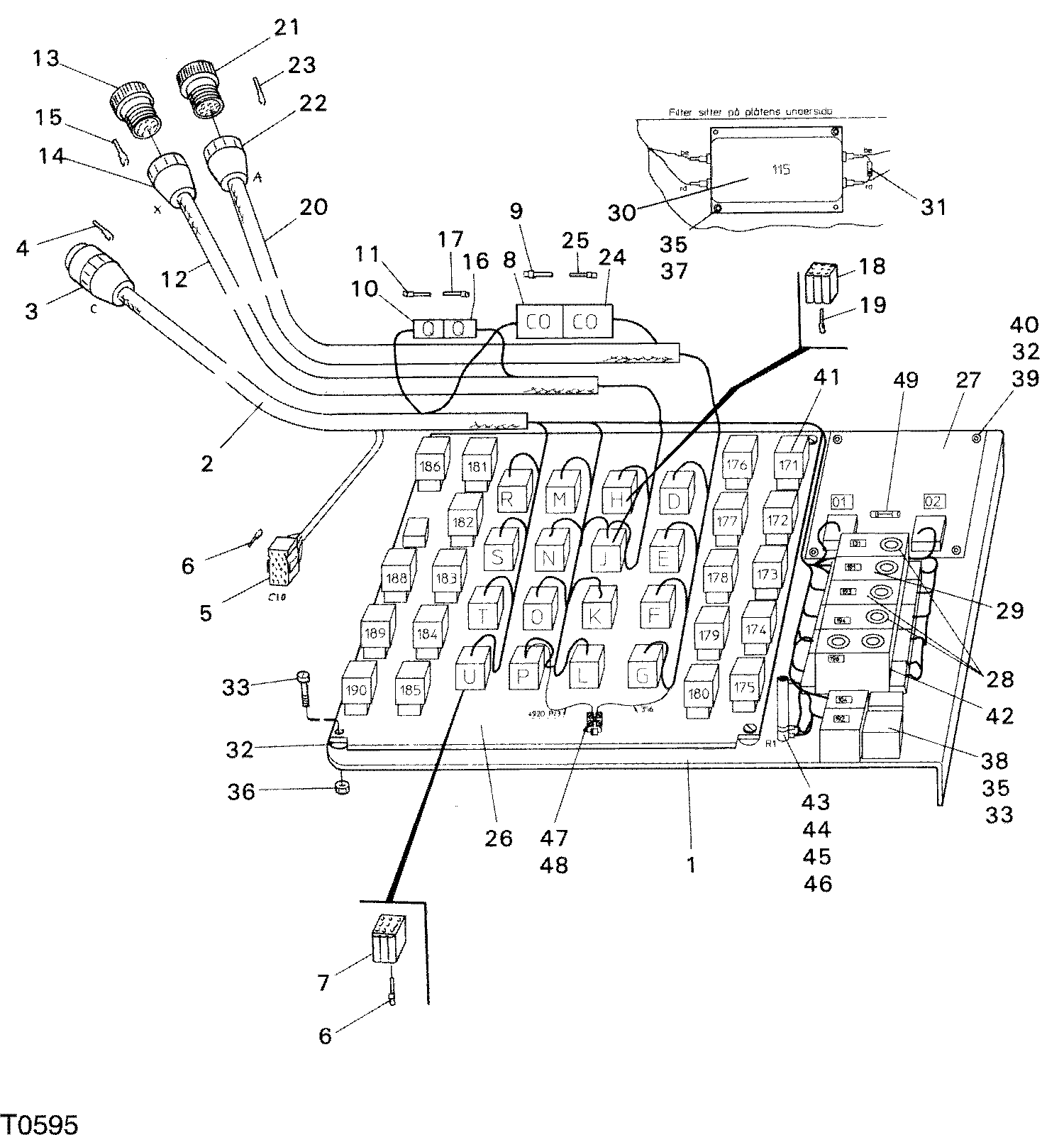

ELECTRICAL SYSTEM LOKOMATIC 90 F044953 33 4 ( 737 - ) T0595 [T0595]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F006797	1	CLAMP	-
2	F025641	1	CABLE HARNESS	-
3	F013789	1	CONNECTOR	-
4	F013785	30	Elec. Connector Terminal	-
5	F010987	1	CONNECTOR	-
6	F005267	91	PIN	-
7	F005265	12	Electrical Connector Assy	-
8	F013883	1	CONNECTOR HOUSING	-
9	F005268	9	CABLE LUG	-
10	F005265	1	Electrical Connector Assy	-
11	F005267	9	PIN	-
12	F019497	1	CABLE	-
13	F015261	1	CONNECTOR HOUSING	-
14	F015248	1	CABLE CLAMP	-
15	F013785	16	Elec. Connector Terminal	-
16	F013883	1	CONNECTOR HOUSING	-
17	F005268	9	CABLE LUG	-
18	F005265	2	Electrical Connector Assy	-
19	F005267	15	PIN	-
20	F005665	1	CABLE HARNESS	-
21	F015333	1	CONNECTOR HOUSING	-
22	F013887	1	CABLE CLAMP	-
23	F013785	32	Elec. Connector Terminal	-
24	F005265	5	Electrical Connector Assy	-
25	F005267	35	PIN	-
26	F005693	1	CIRCUIT CARD	-
27	F001153	1	CIRCUIT CARD	-
28	F005360	3	TIME RELAY	-
29	F005361	1	TIME RELAY	-
30	F005353	1	FILTER	-
31	F005332	1	DIODE	-
32	F015544	4	BOLT	-
33	F015272	7	SCREW	-
34	F003320	4	SCREW	-
35	F003319	9	SCREW	-
36	F003585	6	LOCK NUT	-
37	F003584	12	LOCK NUT	-
38	F005290	3	RELAY	-
39	F015567	4	SCREW	-
40	F003583	4	LOCK NUT	-
41	F005290	17	RELAY	-
42	F020730	1	TIME RELAY	-
43	F020731	1	RESISTOR	-
44	F003147	1	SCREW	-
45	F010721	1	WASHER	-
46	F017375	1	SIGN	-
47	F010586	1	CONNECTION	-
48	F017116	1	DIODE	-
49	F055178	1	FUSE	-
-	F032763	1	CABLE HARNESS	-
-	F016104	1	CABLE HARNESS	-
-	F005263	1	Electrical Connector Assy	-
-	F013838	1	REPLACED	-
