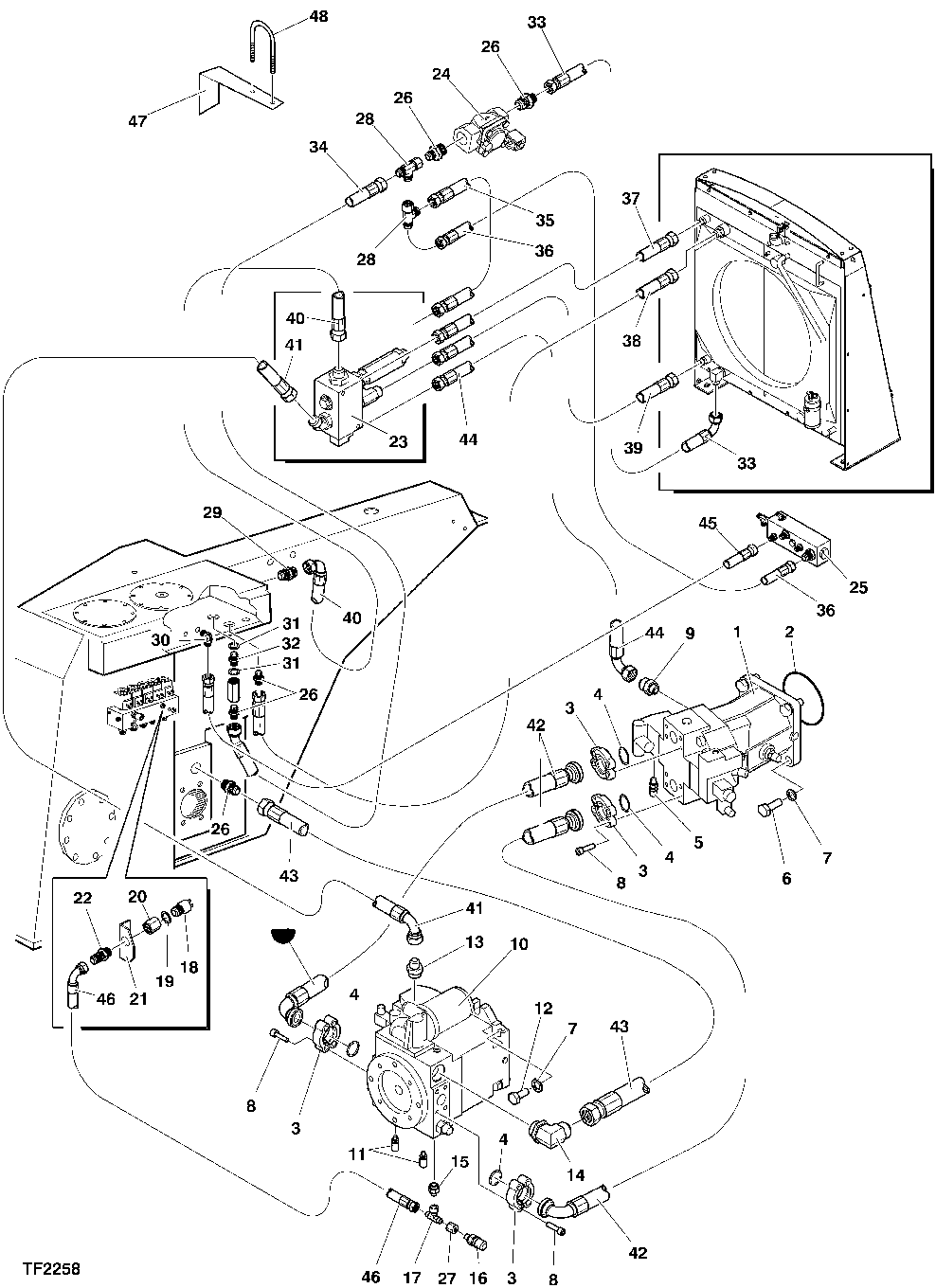

MAIN HYDRAULIC SYSTEM HYDRAULIC OIL LINES [01K09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F058397	1	HYDRAULIC MOTOR	-
2	F003298	1	O-RING	-
3	F004405	8	Flange	-
4	F003762	4	O-RING	-
5	F024669	1	MEASURING NIPPLE	-
6	F008728	4	SCREW	-
7	F026745	8	WASHER	-
8	F003777	16	SCREW	-
9	F056540	1	Fitting	-
10	F060455	1	HYDRAULIC PUMP	-
11	F057589	2	FITTING	-
12	F003557	4	SCREW	-
13	F005071	1	NIPPLE	-
14	F058907	1	ELBOW FITTING	-
15	F057112	1	Fitting	-
16	F017320	1	MEASURING NIPPLE	-
17	F005076	1	Tee Fitting	-
18	F024434	1	SWITCH-PRESSURE	-
19	F005164	1	SEAL RING	-
20	F024364	1	Fitting	-
21	F041269	1	FASTENING PLATE	-
22	F024601	1	Fitting	-
23	F616913	1	VALVE BLOCK ASSY	-
24	F045809	1	SOLENOID VALVE	-
25	F614371	1	VALVE BLOCK ASSY	-
26	F005066	5	NIPPLE	-
27	F024364	1	Fitting	-
28	F027055	2	L-CONNECTION	-
29	F005095	1	NIPPLE	-
30	F012592	1	Elbow Fitting	-
31	F005172	2	SEAL RING	-
32	F004366	1	NIPPLE	-
33	F060740	1	HYDRAULIC HOSE	-
34	F045799	1	HOSE-ASSY	-
35	F060492	1	HYDRAULIC HOSE	-
36	F041493	1	HOSE-ASSY	-
37	F041498	1	HOSE-ASSY	-
38	F060739	1	HYDRAULIC HOSE	-
39	F059986	1	HYDRAULIC HOSE	-
40	F041509	1	HOSE-ASSY	-
41	F060490	1	HYDRAULIC HOSE	-
42	F059988	2	HYDRAULIC HOSE	-
43	F059989	1	HYDRAULIC HOSE	-
44	F041507	1	HOSE-ASSY	-
45	F041464	1	HOSE-ASSY	-
46	F060845	1	HYDRAULIC HOSE	-
47	F045167	1	BRACKET	-
48	F045808	1	EXHAUST TUBE CLIP	-

MAIN HYDRAULIC SYSTEM HYDRAULIC OIL LINES [01K09]
