Bunk Hydraulic Lines, VLS, Extra Short Frame

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F701990	1	Cover	-
2	F702030	1	Cover	-
3	F702049	1	Cover	-
4	F702018	2	Plate	-
5	F702014	2	Cover	-
6	19M9568	6	Screw	M8 X 20
7	19M9570	16	Screw	M12 X 25
8	F024601	2	Fitting	-
9	F013594	2	Elbow Fitting	-
10	F022417	2	Elbow Fitting	-
11	F688366	2	Elbow Fitting	-
12	F022417	2	Elbow Fitting	-
13	F070631	1	Hydraulic Hose	LGTH = 1100 mm
14	F070631	1	Hydraulic Hose	LGTH = 1100 mm
15	F054362	1	Hydraulic Hose	LGTH = 1470 mm
16	F054362	1	Hydraulic Hose	LGTH = 1470 mm
17	F688372	1	Hydraulic Hose	LGTH = 1310 mm
18	F688372	1	Hydraulic Hose	LGTH = 1310 mm
19	F022422	2	T-CONNECTION	-
20	F024366	2	Fitting	-
21	F022417	4	Elbow Fitting	-
22	F070631	1	Hydraulic Hose	LGTH = 1100 mm
23	F070631	1	Hydraulic Hose	LGTH = 1100 mm
24	F054362	1	Hydraulic Hose	LGTH = 1470 mm
25	F054362	1	Hydraulic Hose	LGTH = 1470 mm
26	F072873	1	Hydraulic Hose	LGTH = 900 mm
27	F072873	1	Hydraulic Hose	LGTH = 900 mm
28	F058835	1	Hydraulic Hose	LGTH = 1300 mm
29	F058835	1	Hydraulic Hose	LGTH = 1300 mm
30	F022417	2	Elbow Fitting	-
31	F070631	1	Hydraulic Hose	LGTH = 1100 mm
32	F070631	1	Hydraulic Hose	LGTH = 1100 mm
33	F054362	1	Hydraulic Hose	LGTH = 1470 mm
34	F054362	1	Hydraulic Hose	LGTH = 1470 mm
35	F022422	2	T-CONNECTION	-

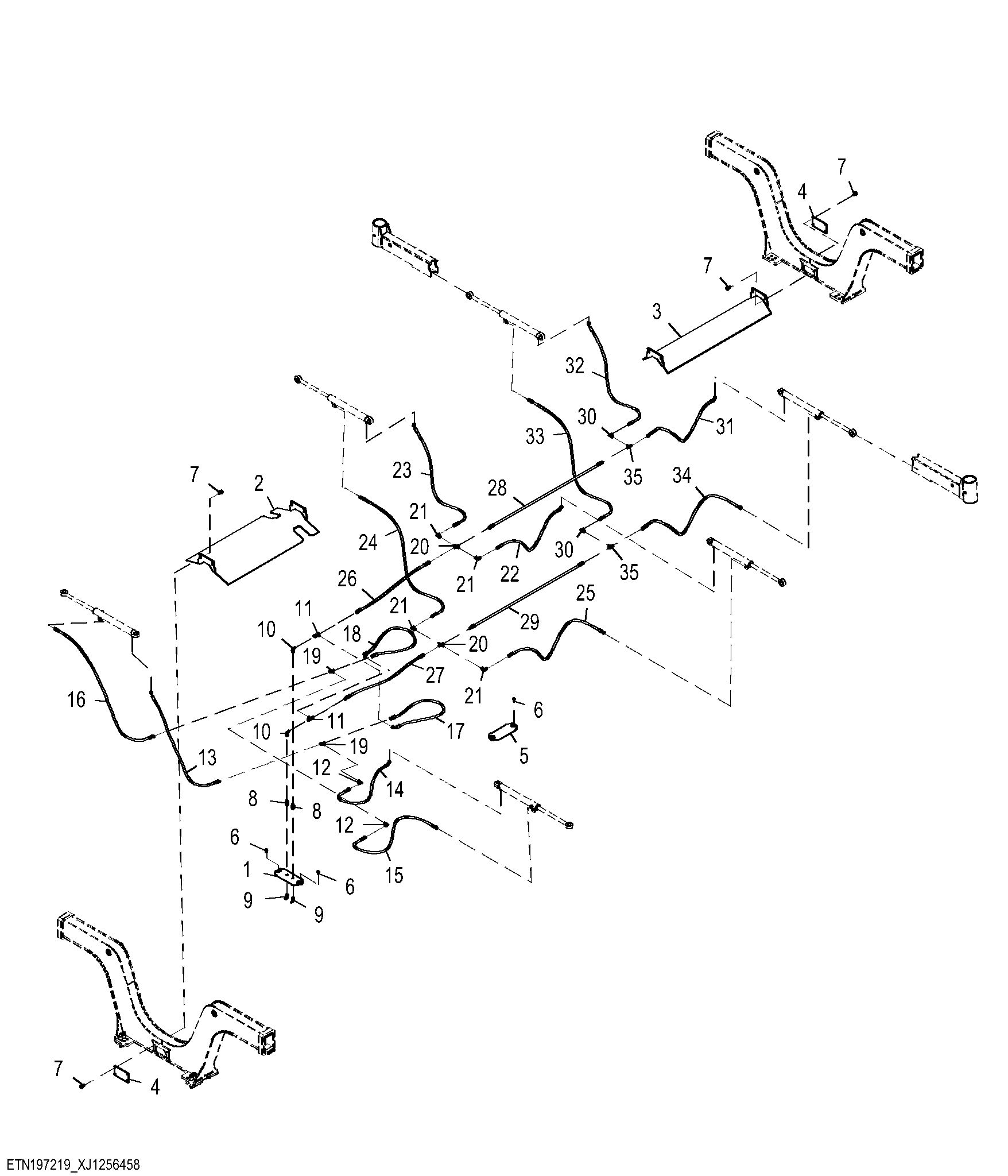

Bunk Hydraulic Lines, VLS, Extra Short Frame
