Открытый узел

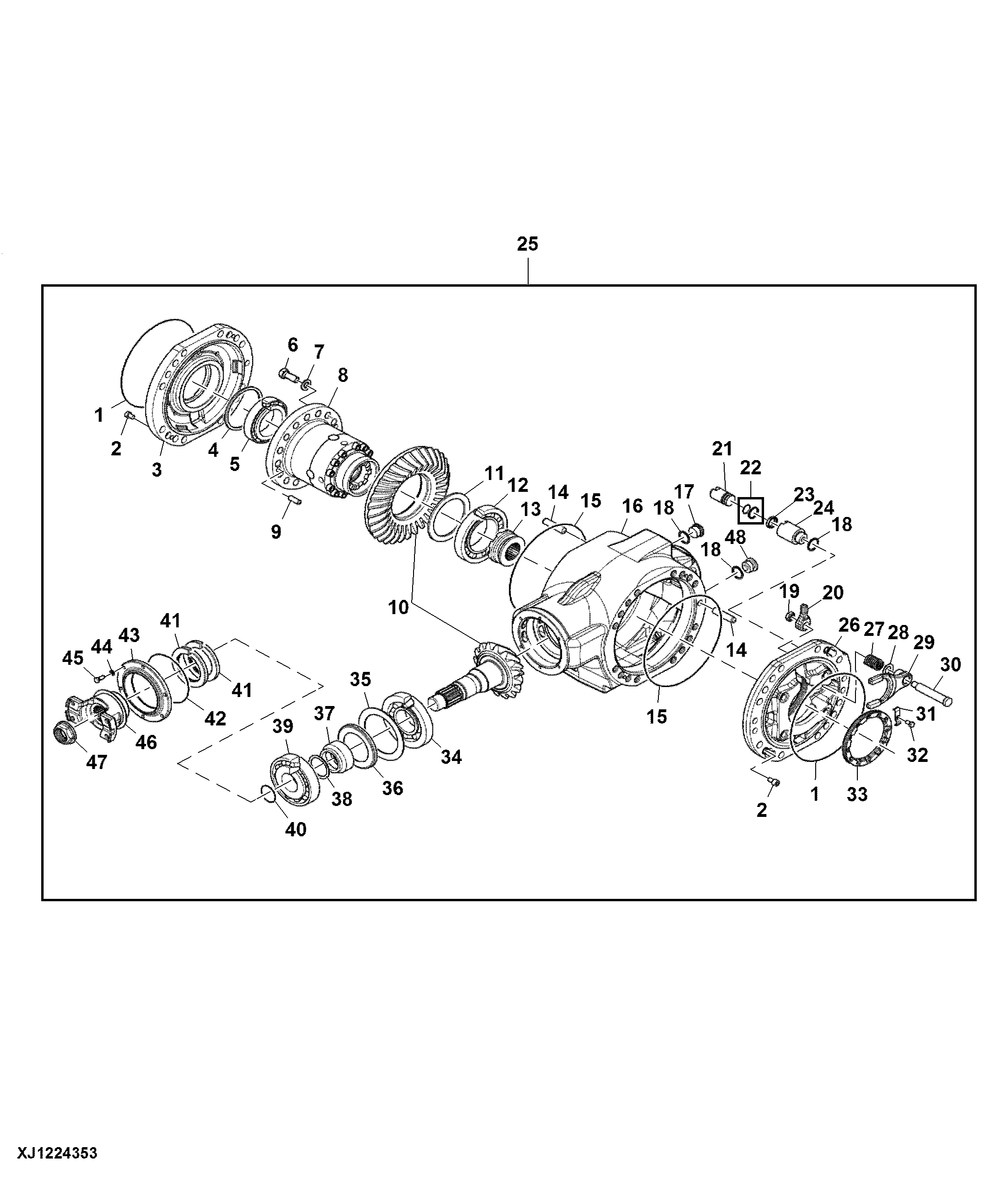

Differential, Rear Axle, LOK 212, LOK 236

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F025234	2	O-Ring	-
2	19M9703	4	Screw	M10 X 20
3	F064247	1	Flange	-
4	-	1	Part 13	TK = 1.8 mm
4	-	1	Part 14	TK = 1.9 mm
4	-	1	Part 12	TK = 1.7 mm
4	-	1	Part 11	TK = 1.6 mm
4	-	1	Part 10	TK = 1.5 mm
4	-	1	Part 9	TK = 1.4 mm
4	-	1	Part 8	TK = 1.3 mm
4	-	1	Part 7	TK = 1.2 mm
4	-	1	Part 6	TK = 1.1 mm
4	-	1	Part 5	TK = 1.0 mm
4	F064253	1	Shim Kit	-
5	F689884	1	Tapered Roller Bearing	-
6	19M3003	16	Cap Screw	M16 X 40
7	F009375	16	Washer	-
8	F064255	1	Differential	COMPONENTS ON SEPARATE PAGE
9	F004738	2	Pin	-
10	F064246	1	Ring Gear And Pinion	Z = 31 / 11
11	F004751	1	Snap Ring	-
12	F004688	1	Tapered Roller Bearing	-
13	F004977	1	Snap Ring	-
14	F035794	2	Dowel Pin	-
15	F003308	2	O-Ring	-
16	F064249	1	Housing	-
17	F009438	1	Plug	-
18	51M4247	3	Sealing Ring	-
19	F023666	1	Nut	-
20	F064584	1	Locking Collar	Shifting Sleeve
21	F050812	1	Piston	-
22	F050813	1	Seal	-
23	F009469	1	Seal	-
24	F058934	1	Cylinder	-
25	F066124	1	Differential	LF
26	F043649	1	Flange	-
27	F009394	1	Spring	-
28	F056215	1	Shim	TK = 3.0 mm
28	F009383	1	Shim	TK = 2.5 mm
28	F009380	1	Shim	TK = 2.0 mm
28	F045259	1	Shim Kit	-
28	F009378	1	Shim	TK = 1.5 mm
29	F009430	1	Fork	-
30	F064585	1	Pin Fastener	Shifting Rod
31	F004891	1	Lock Washer	-
32	F004638	1	Screw	-
33	F004814	1	Nut	-
34	F026690	1	Tapered Roller Bearing	-
35	-	1	Part 51	TK = 2.75 mm
35	-	1	Part 52	TK = 2.5 mm
35	-	1	Part 50	TK = 3.0 mm
35	F064245	1	Shim Kit	-
36	F064251	1	Cover	-
37	F064248	1	Spacer	-
38	F023675	1	Shim	TK = 1.12 mm
38	F023667	1	Shim	TK = 1.44 mm
38	F023668	1	Shim	TK = 1.4 mm
38	F023669	1	Shim	TK = 1.36 mm
38	F023670	1	Shim	TK = 1.32 mm
38	F023671	1	Shim	TK = 1.28 mm
38	F023672	1	Shim	TK = 1.24 mm
38	F023674	1	Shim	TK = 1.16 mm
38	F023676	1	Shim	TK = 1.08 mm
38	F023677	1	Shim	TK = 1.04 mm
38	F023678	1	Shim	TK = 1.0 mm
38	F023679	1	Shim	TK = 0.96 mm
38	F045262	1	Shim Kit	-
38	F023673	1	Shim	TK = 1.2 mm
39	F064254	1	Tapered Roller Bearing	-
40	F011429	1	O-Ring	-
41	F011427	2	Seal	-
42	F064252	1	O-Ring	-
43	F064250	1	Cover	-
44	F011430	6	Lock Washer	-
45	19M9773	6	Screw	M8 X 20
46	F011442	1	Shaft	-
47	F021149	1	Nut	-
48	F010163	1	Plug	-

Differential, Rear Axle, LOK 212, LOK 236

Нет текстового описания
