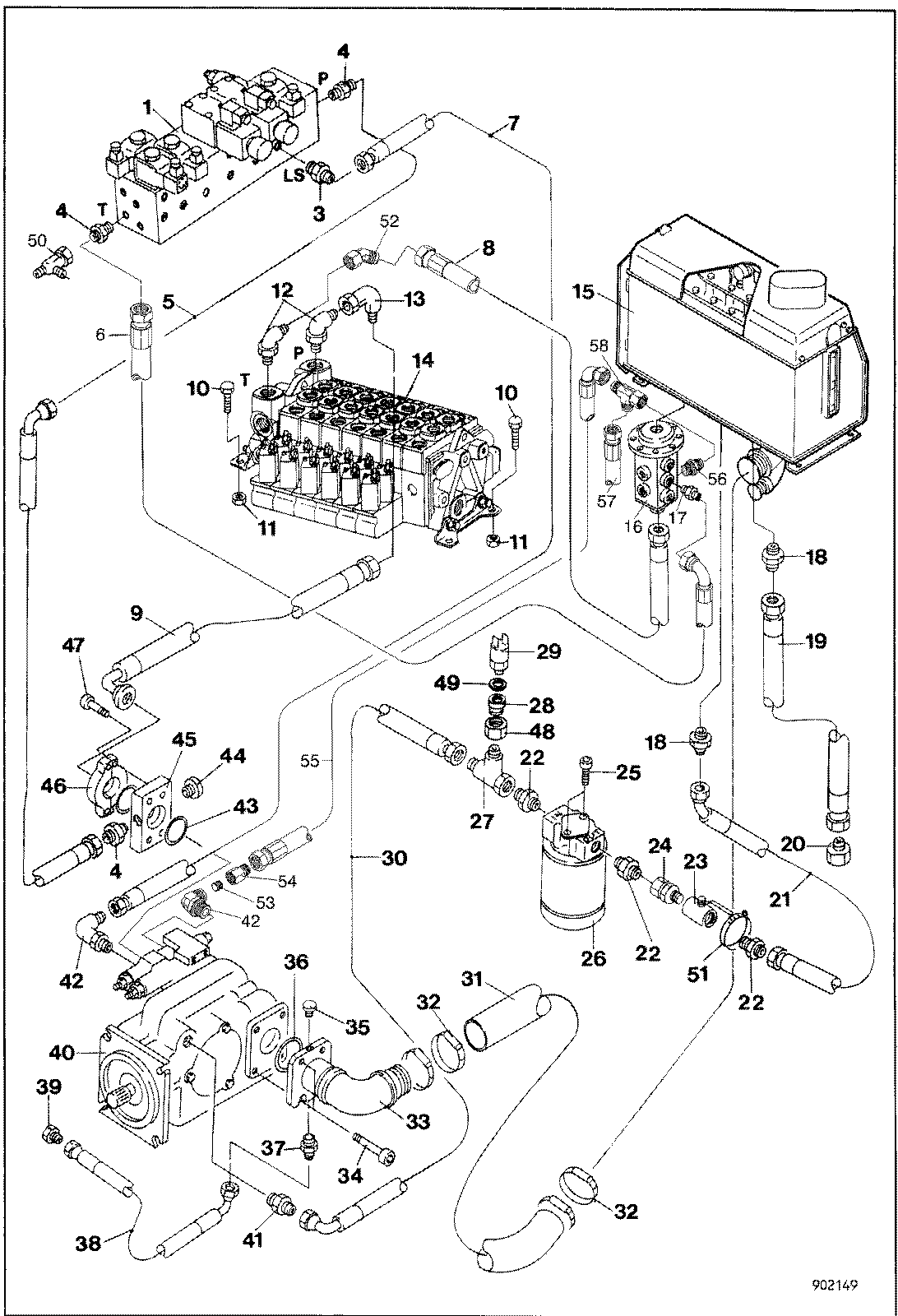

HYDRAULIC SYSTEM HYDRAULIC PUMP ASSY 98032 41 10 ( 1210465 - ) 902149 [902149]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	F010072	1	ELBOW NIPPLE	-
3	F005057	1	Fitting	-
4	F005060	3	Fitting	-
5	F001499	1	HOSE-ASSY	-
6	F026361	1	Hydraulic Hose	-
7	F039961	1	HOSE-ASSY	-
8	F038307	1	HOSE-ASSY	-
8	F025518	1	HOSE	-
9	F039962	1	HOSE-ASSY	-
10	F003532	4	SCREW	-
11	F003588	4	LOCK NUT	-
12	F005094	2	Elbow Fitting	-
13	F005047	1	Elbow Fitting	-
14	F038295	1	VALVE ASSY	-
15	-------	1	O-RING	-
16	-------	1	O-RING	-
17	-------	1	O-RING	-
18	-------	2	O-RING	-
19	F001195	1	Hydraulic Hose	-
20	F023582	1	Plug	-
21	F041608	1	Hydraulic Hose	-
22	F005063	3	NIPPLE	-
23	F004408	1	VALVE	-
24	F005098	1	Fitting	-
25	F003400	2	SCREW	-
26	F004291	1	FILTER	-
27	F012532	1	Tee Fitting	-
28	F005082	1	CONNECTION	-
29	F043561	1	SWITCH-PRESSURE	-
30	F013203	1	Hydraulic Hose	-
31	F041555	1	HOSE	-
32	F008489	4	Hose Clamp	-
33	F032575	1	FLANGE ASSY	-
34	F003775	4	SCREW	-
35	F003382	1	PLUG	-
36	F003764	1	O-RING	-
37	F023015	1	Fitting	-
38	F013542	1	Hydraulic Hose	-
39	F024659	1	Plug	-
40	-------	1	O-RING	-
41	F002726	1	NIPPLE	-
42	F024670	2	ELBOW NIPPLE	-
43	F003762	2	O-RING	-
44	F003383	1	PLUG	-
45	F033151	1	CONNECTION	-
46	F004405	2	Flange	-
47	F038294	4	SCREW	-
48	F005092	1	Sleeve Fitting	-
49	F005164	1	SEAL RING	-
50	F005073	1	Tee Fitting	-
51	F003676	1	HOSE CLAMP	-
52	F005090	1	Elbow Fitting	-
53	F004626	1	Orifice	-
54	F040264	1	Fitting	-
55	F024311	1	Hydraulic Hose	-
56	F005056	1	Fitting	-
57	F024306	1	HOSE-ASSY	-
58	F023535	1	Tee Fitting	-
-	F004292	1	FILTER	-

HYDRAULIC SYSTEM HYDRAULIC PUMP ASSY 98032 41 10 ( 1210465 - ) 902149 [902149]
