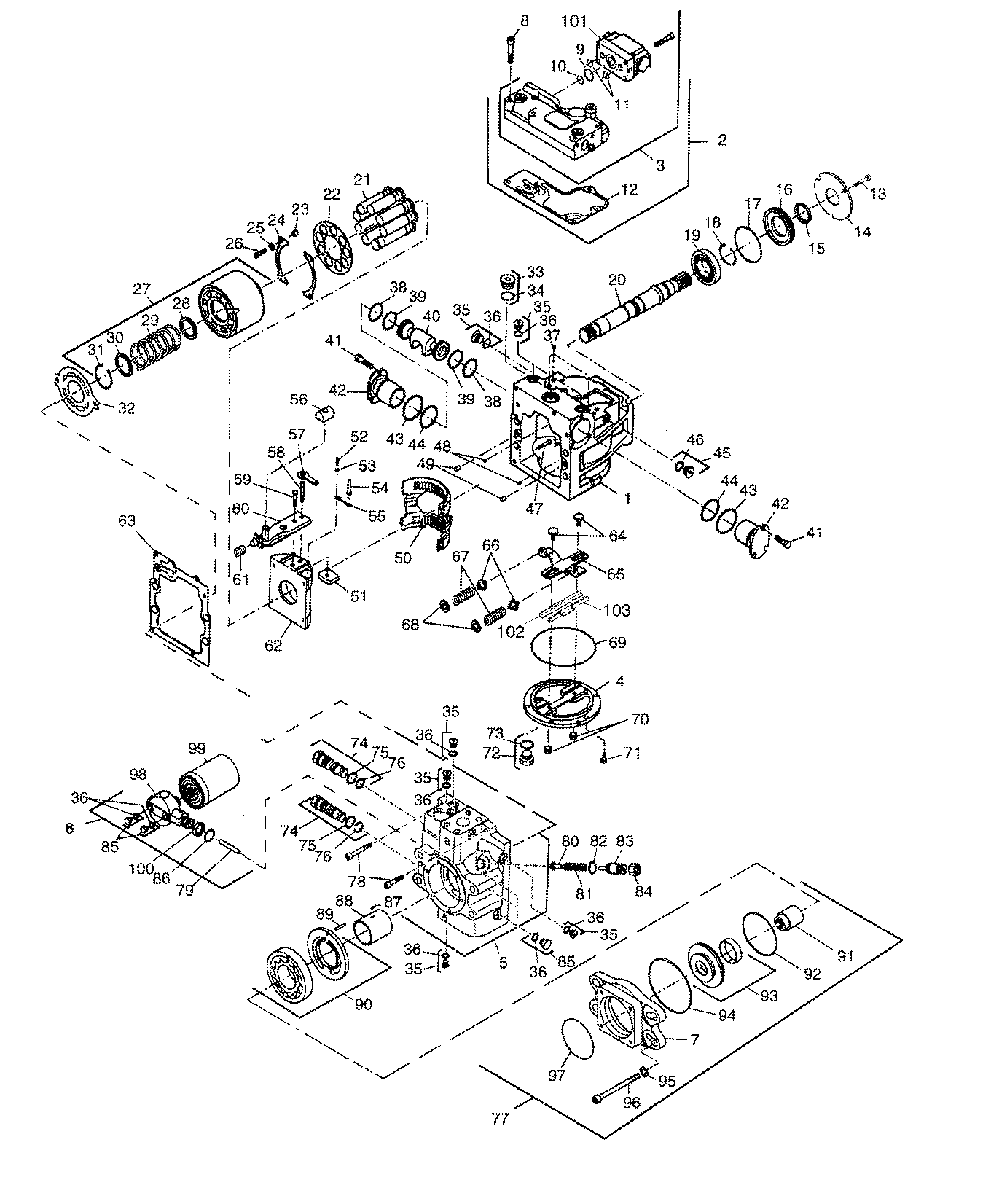

HYDRAULIC SYSTEM DRIVE PUMP 98032 41 40 ( 1210465 - ) 901980 [901980]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F039261	1	HOUSING	-
2	F039272	1	REGULATOR	-
3	F039254	1	REGULATOR	-
4	F039244	1	COVER	-
5	F039247	1	HEAD	-
6	F039241	1	FILTER ASSY	-
7	F034090	1	FLANGE	-
8	F035074	6	SCREW	-
9	F039277	1	O-RING	-
10	F039266	1	O-RING	-
11	F039276	2	O-RING	-
12	F039251	1	GASKET	-
13	F035071	4	SCREW	-
14	F039282	1	LOCKING PLATE	-
15	F039236	1	RING	-
16	F039239	1	RING	-
17	F039278	1	O-RING	-
18	F039267	1	CIRCLIP	-
19	F039238	1	BEARING	-
20	F039283	1	SHAFT	-
21	F039255	9	PISTON	-
22	F039243	1	HOLDER PLATE	-
23	F039279	4	BUSHING	-
24	F039280	2	LOCKING PLATE	-
25	F034993	4	WASHER	-
26	F034994	4	SCREW	-
27	F039275	1	CYLINDER GROUP	-
28	F039264	1	RING	-
29	F039242	1	SPRING	-
30	F039265	1	SPRING WASHER	-
31	F039237	1	CIRCLIP	-
32	F039258	1	PLATE	-
33	F034979	1	PLUG	-
34	F032983	1	O-RING	-
35	F034978	7	PLUG	-
36	F032183	9	O-RING	-
37	F032980	3	FILTER	-
38	F039274	2	SEAL RING	-
39	F039234	2	RING	-
40	F039249	1	PISTON	-
41	F035060	3	SCREW	-
42	F039259	1	SLEEVE	-
43	F039270	2	O-RING	-
44	F039271	2	O-RING	-
45	F035061	1	PLUG	-
46	F032181	1	O-RING	-
47	F039246	1	SCREW	-
48	F034976	2	BOLT	-
49	F034977	2	PIN	-
50	F039273	1	BEARING	-
51	F039230	1	LOCKING PIECE	-
52	F034996	1	LOCKING PIN	-
53	F035202	1	WASHER	-
54	F035044	1	BOLT	-
55	F039231	1	LOCKING LEVER	-
56	F039250	1	LOCKING PIECE	-
57	F039268	1	LEVER	-
58	F039225	1	SCREW	-
59	F039263	1	SCREW	-
60	F039228	1	LEVER	-
61	F039232	1	SPRING	-
62	F039256	1	STEERING PART	-
63	F039245	1	GASKET	-
64	F039226	2	LOCKING SCREW	-
65	F039233	1	GUIDE LEVER	-
66	F039252	2	SPRING RETAINER	-
67	F039281	2	SPRING	-
68	F039253	2	WASHER	-
69	F039269	1	O-RING	-
70	F039262	2	LOCK NUT	-
71	F035051	6	SCREW	-
72	F034979	1	PLUG	-
73	F032983	1	O-RING	-
74	F032179	2	VALVE	-
75	F032185	2	O-RING	-
76	F032186	2	O-RING	-
77	F039257	1	HEAD	-
78	F035067	2	SCREW	-
79	F039240	1	PIPE	-
80	F032198	1	SPOOL	-
81	F032197	1	SPRING	-
82	F039147	1	O-RING	-
83	F039260	1	ADJUSTING SCREW	-
84	F032191	1	LOCK NUT	-
85	F032184	5	PLUG	-
86	F032189	1	O-RING	-
87	F032709	1	KEY	-
88	F032708	1	SLEEVE	-
89	F039235	1	PIN	-
90	F039227	1	Pump	-
91	F032701	1	SLEEVE	-
92	F032703	1	O-RING	-
93	F039229	1	CAP ASSY	-
94	F032195	1	O-RING	-
95	F035068	4	WASHER	-
96	F039248	4	SCREW	-
97	F032712	1	O-RING	-
98	F032188	1	FRAME	-
99	F023753	1	FILTER	-
100	F032190	1	NUT	-
101	F032973	1	VALVE	-
102	F056613	1	GUIDE	-
103	F056614	1	GUIDE	-
-	F037853	1	PUMP	-

HYDRAULIC SYSTEM DRIVE PUMP 98032 41 40 ( 1210465 - ) 901980 [901980]
