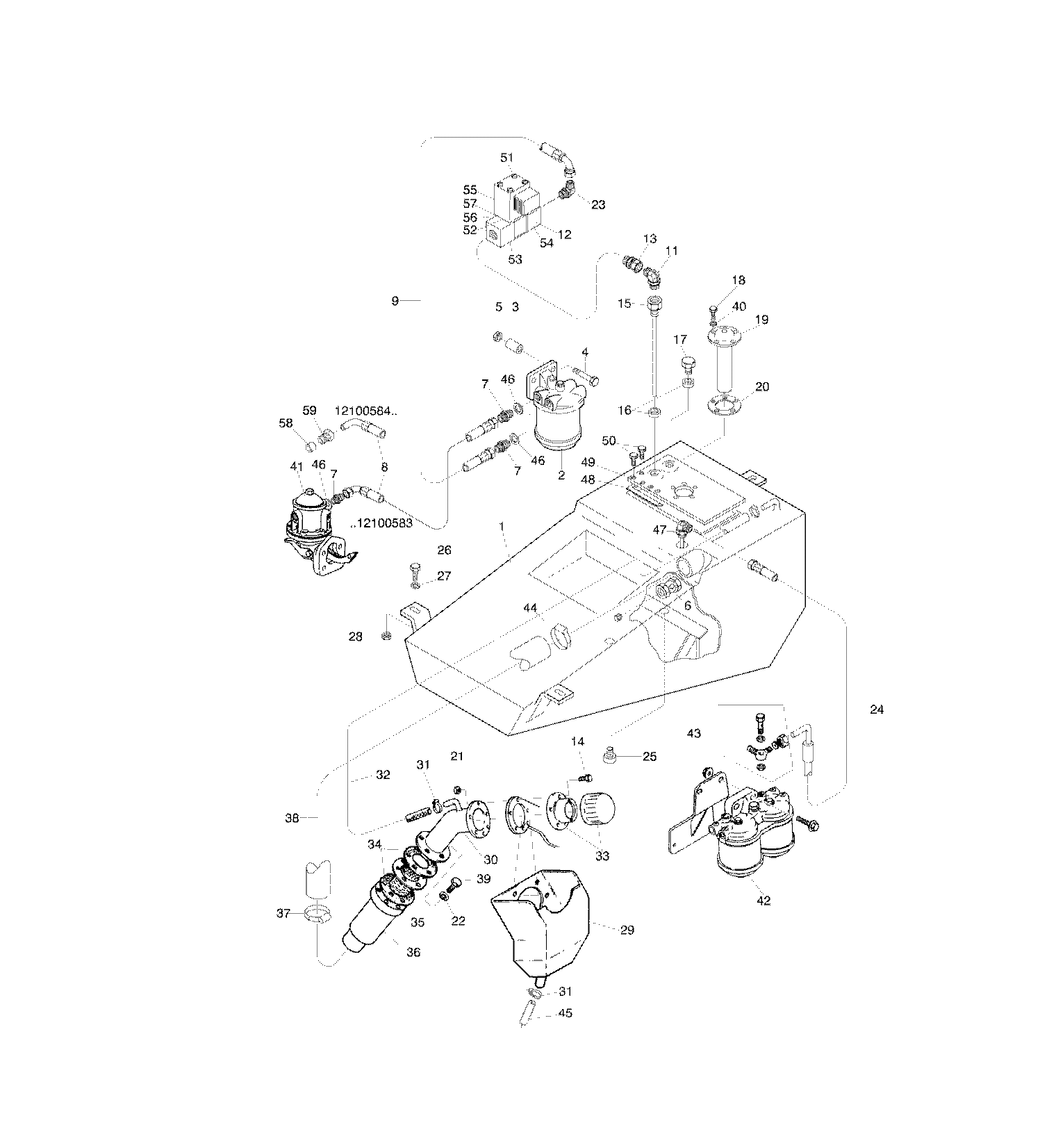

ENGINE FUEL SYSTEMS 98032 11 8.1 ( 1210465 - ) 902148 [902148]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F023248	1	FUEL TANK	-
2	-------	1	O-RING	-
3	F010392	2	BUSHING	-
4	F003484	2	SCREW	-
5	F003588	2	LOCK NUT	-
6	F012475	1	VALVE	-
7	F045607	3	CONNECTION	-
7	F045607	2	CONNECTION	-
8	F044642	1	FUEL HOSE	-
8	F045745	1	FUEL HOSE	-
9	F044641	1	FUEL HOSE	-
10	F005057	1	Fitting	-
11	F024402	1	Elbow Fitting	-
11	F010072	1	ELBOW NIPPLE	-
12	F045007	1	Solenoid Valve	-
13	F023030	1	CONNECTION	-
13	F023068	1	Fitting	-
14	F003516	6	SCREW	-
15	F010353	1	SUCTION PIPE	-
16	F005168	2	SEAL RING	-
17	F001909	1	PLUG	-
18	F003513	5	SCREW	-
19	F005504	1	SENSOR	-
20	F001443	1	GASKET	-
21	F003585	6	LOCK NUT	-
22	F010721	6	WASHER	-
23	F010072	1	ELBOW NIPPLE	-
24	F044644	1	FUEL HOSE	-
25	F004670	2	PLUG	-
26	F003480	3	SCREW	-
27	F003339	3	WASHER	-
28	F001491	3	LOCK NUT	-
29	F020369	1	PROTECTION	-
30	F009536	1	HOSE CONNECTOR	-
31	F003671	3	HOSE CLAMP	-
32	F009262	1	HOSE	-
33	F026681	1	CAP KIT	-
34	F026622	5	SEAL	-
35	-------	1	O-RING	-
36	F020323	1	PIPE CONNECTION	-
37	F003676	1	HOSE CLAMP	-
38	F010455	1	HOSE	-
39	F003391	6	SCREW	-
40	F003696	5	COPPER WASHER	-
41	-------	1	O-RING	-
42	-------	1	O-RING	-
43	-------	1	O-RING	-
44	F005013	1	HOSE CLAMP	-
45	F002654	1	HOSE	-
46	F008223	3	COPPER WASHER	-
46	F008223	2	COPPER WASHER	-
47	F044621	1	PIPE ASSY	-
48	F038930	1	RUBBER PLATE	-
49	F038913	1	HATCH	-
50	F003523	20	SCREW	-
51	F046411	4	SCREW	-
52	F004623	1	O-RING	-
53	F046415	1	FRAME	-
54	F033834	1	CONNECTOR	-
55	F046412	1	COIL	-
56	F046414	1	SPOOL	-
57	F046413	1	SPRING	-
58	F015692	1	FERRULE	-
59	F015693	1	NUT	-
-	F042823	1	CAP	-

ENGINE FUEL SYSTEMS 98032 11 8.1 ( 1210465 - ) 902148 [902148]
