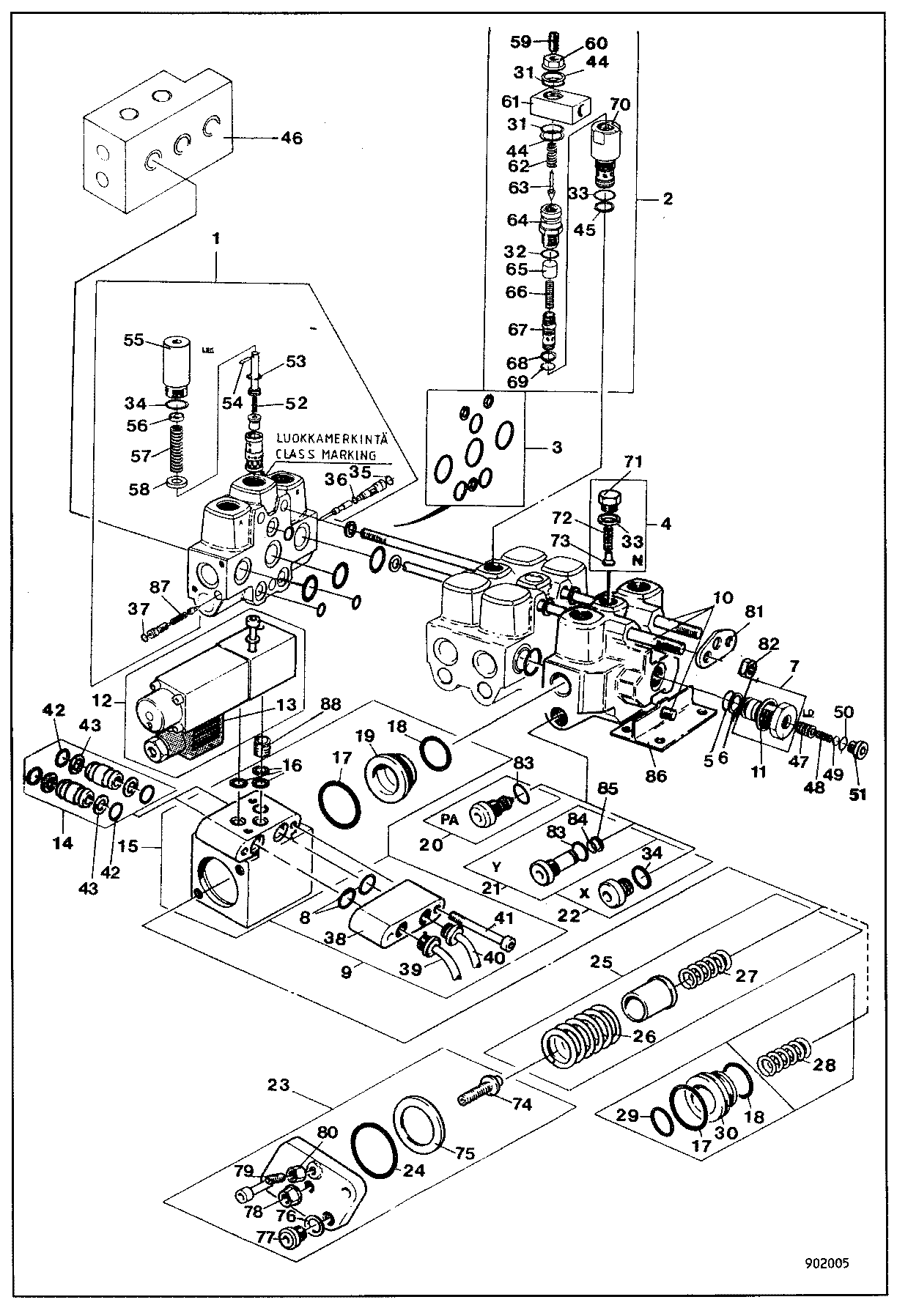

HYDRAULIC SYSTEM DIRECTIONAL VALVE HV09 98026 41 30 ( 12100174 - ) 902005 [902005]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F017723	2	PRESSURE REDUCING VALVE	-
1	F017722	2	PRESSURE REDUCING VALVE	-
2	F012916	1	FEED REDUCER	-
3	F004548	4	SEAL KIT	-
4	F004615	4	CHECK VALVE	-
5	F004569	1	O-RING	-
6	F004622	1	SUPPORT RING	-
7	F004549	1	PLUG	-
8	F004561	6	O-RING	-
9	F033860	1	PLATE	-
10	F004579	3	PIN SCREW	-
11	F005170	1	SEAL RING	-
12	F004557	14	CONTROL VALVE	-
13	F004578	14	CONNECTOR	-
14	F004614	12	PIPE	-
15	F004617	14	CYLINDER	-
16	F004560	42	O-RING	-
17	F004624	14	O-RING	-
18	F004623	14	O-RING	-
19	F012844	12	SUPPORT RING	-
20	-------	1	O-RING	-
21	F004620	2	PLUG	-
22	F015528	1	PLUG	-
23	F004619	14	COVER	-
24	F004607	14	O-RING	-
25	F004610	13	SPRING KIT	-
26	F004592	14	SPRING	-
27	F004589	13	SPRING	-
28	F017719	1	SPRING	-
29	F017720	2	O-RING	-
30	F017721	2	SUPPORT RING	-
31	F031817	2	O-RING	-
32	F005500	1	O-RING	-
33	F003288	7	O-Ring	-
34	F004565	2	O-RING	-
35	F024858	1	O-RING	-
36	F024859	1	O-RING	-
37	F004560	1	O-RING	-
38	F012852	1	PLATE	-
39	F012858	1	PIPE	-
40	F012857	1	PIPE	-
41	F017207	2	CAP SCREW	-
42	F012875	48	O-RING	-
43	F012874	48	RING	-
44	F012919	2	SUPPORT RING	-
45	F012921	1	SUPPORT RING	-
46	-------	1	O-RING	-
47	F034213	1	SPOOL	-
48	F034212	1	SPRING	-
49	F034217	1	SHIM	-
50	F034216	1	O-Ring	-
51	F034215	1	PLUG	-
52	F034019	2	SPRING	-
53	F034017	2	CIRCLIP	-
54	F034013	2	SPRING PIN	-
55	F026464	2	CAP	-
56	F034330	2	WASHER	-
57	F034016	2	SPRING	-
58	F034331	2	WASHER	-
59	F012917	1	SET SCREW	-
60	F019379	1	LOCK NUT	-
61	F012920	1	CONNECTION	-
62	F034236	1	SPRING	-
63	F034229	1	SPOOL	-
64	F034230	1	VALVE HOUSING	-
65	F034231	1	BUSHING	-
66	F034225	1	SPRING	-
67	F034232	1	SPOOL	-
68	F034226	1	WASHER	-
69	F034228	1	LOCKING RING	-
70	F034227	1	VALVE HOUSING	-
71	F031416	4	PLUG	-
72	F034204	4	SPRING	-
73	F034214	4	SPOOL	-
74	F005611	14	SCREW	-
75	F034111	14	SUPPORT	-
76	F005162	14	SEAL RING	-
77	F010192	14	PLUG	-
78	F005610	14	LOCK NUT	-
79	F012847	14	STOP SCREW	-
80	F005609	14	Nut	-
81	F026459	1	LUG	-
82	F026462	1	NUT	-
83	F004565	2	O-RING	-
84	F034238	2	O-RING	-
85	F034233	2	SUPPORT RING	-
86	F034237	1	BRACKET	-
87	F034018	1	SPRING	-
88	F013575	1	Orifice	-
88	F026460	2	THROTTLE SCREW	-
88	F004591	11	Orifice	-
