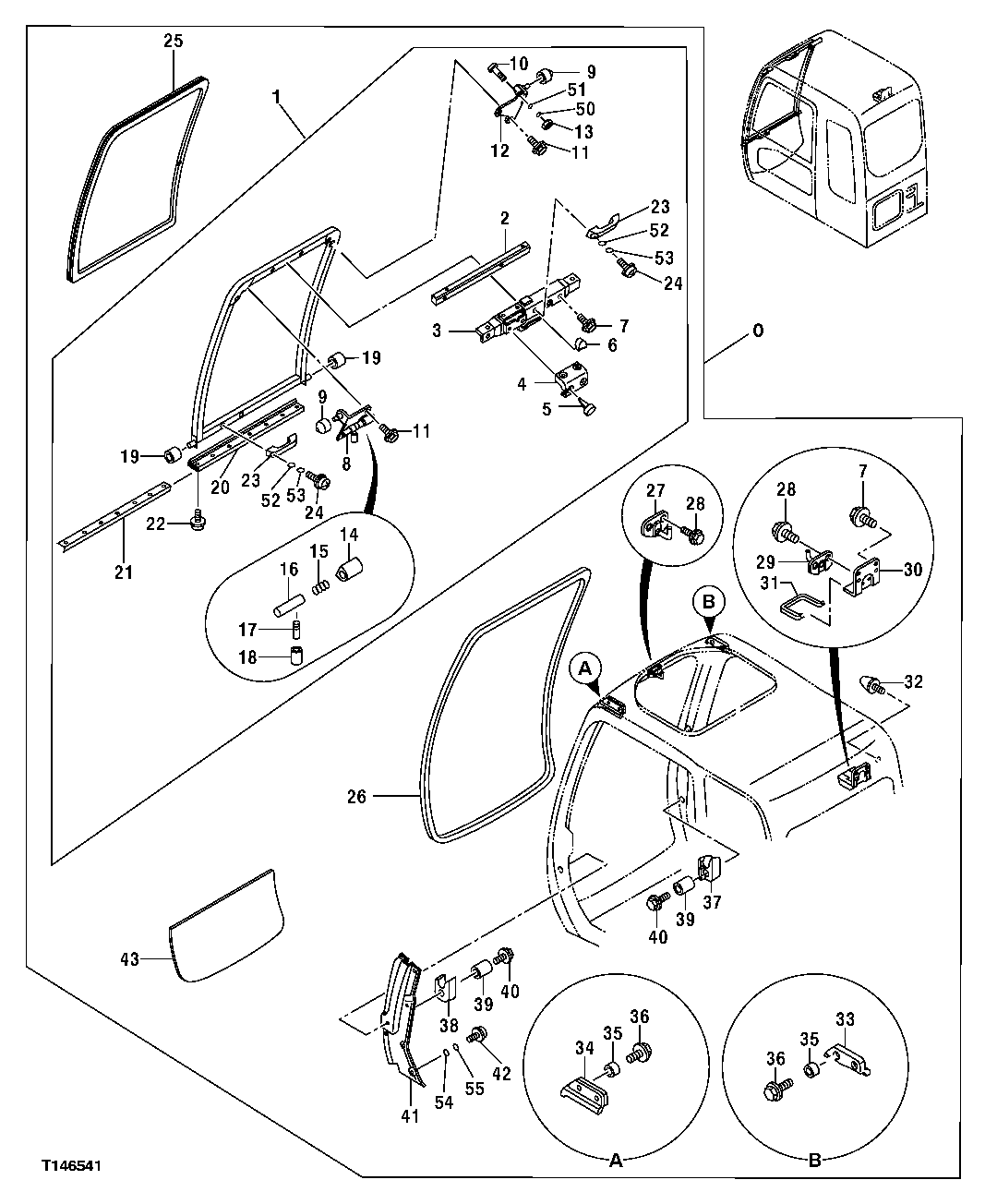

CAB FRONT WINDOWS, HANDLES, AND OPENING TRACKS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9202944	1	Cab	(SUB FOR <service-part qty="1">4474296</service-part> OR <service-part qty="1">4602549</service-part>)(INCLUDES ALL COMPONENTS ON THIS PAGE AND AND ON PREVIOUS AND FOLLOWING PAGES)
1	TH4453689	1	Window	-
2	TH4456218	1	Weld Nut	-
3	TH4456219	1	Lock	-
4	TH4456220	1	Cover	-
5	TH4456221	4	Clip	-
6	TH4456222	1	Cover	-
7	AT214311	4	Screw With Washer	-
8	TH4456223	1	Bracket	-
9	TH4456224	2	Roller	-
10	TH4456225	1	Screw	-
11	-	4	Part 12	( AT214305 OR 4372219 NLA)
11	19M7662	4	Cap Screw	M10 X 30, (SUB FOR J901030)
11	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J922010)
12	TH4456226	1	Bracket	-
13	19M7361	1	Cap Screw	M12 X 50
14	TH4456227	1	Cover	-
15	494918	1	Spring	(SUB FOR TH106783)
16	AT214104	1	Pin	-
17	4295480	1	Lever	(SUB FOR AT156993)
18	4295876	1	Cover	(SUB FOR AT156994)
19	4204558	2	Roller	(SUB FOR TH108638)
20	TH4456228	1	Isolator	-
21	TH4456229	1	Plate	-
22	AT214301	4	Screw	-
23	4204579	2	Handle	(SUB FOR TH108661)
24	19M8425	4	Cap Screw	M6 X 16
25	4448306	1	Windowpane	Bronze, (SUB FOR 4474531)
25	AT480124	1	Window	Green, SUB FOR 4602562
26	TH4456230	1	Isolator	-
27	TH4456231	1	Striker	-
28	AT214297	4	Screw With Washer	-
29	TH4456232	1	Striker	-
30	TH4456233	1	Bracket	-
31	TH4456234	1	Isolator	-
32	4204586	1	Bumper	(SUB FOR TH108668)
33	TH4456235	1	Isolator	-
34	TH4456236	1	Isolator	-
35	TH4456237	4	Bushing	-
36	TH4456238	4	Bolt	-
37	TH4456239	1	Stop	-
38	TH4456240	1	Stop	-
39	TH4456241	2	Bushing	-
40	TH4456242	2	Bolt	-
41	4474532	1	Cover	-
42	21M7246	6	Screw	M6 X 16
43	-	1	Part 47	Bronze (SUB <service-part qty="1">4602563R</service-part> ( <service-part >4448307</service-part> NLA))
43	T396403	1	Windowpane	Green, (SUB FOR 4602563R AND 4602563)
50	12M7068	1	Lock Washer	14 mm
51	24M7047	1	Washer	13 X 24 X 2.500 mm
52	12M7006	4	Lock Washer	6 mm
53	24M7293	4	Washer	6.500 X 13 X 1.600 mm
54	12M7006	6	Lock Washer	6 mm
55	24M7293	6	Washer	6.500 X 13 X 1.600 mm

CAB FRONT WINDOWS, HANDLES, AND OPENING TRACKS

Нет текстового описания
