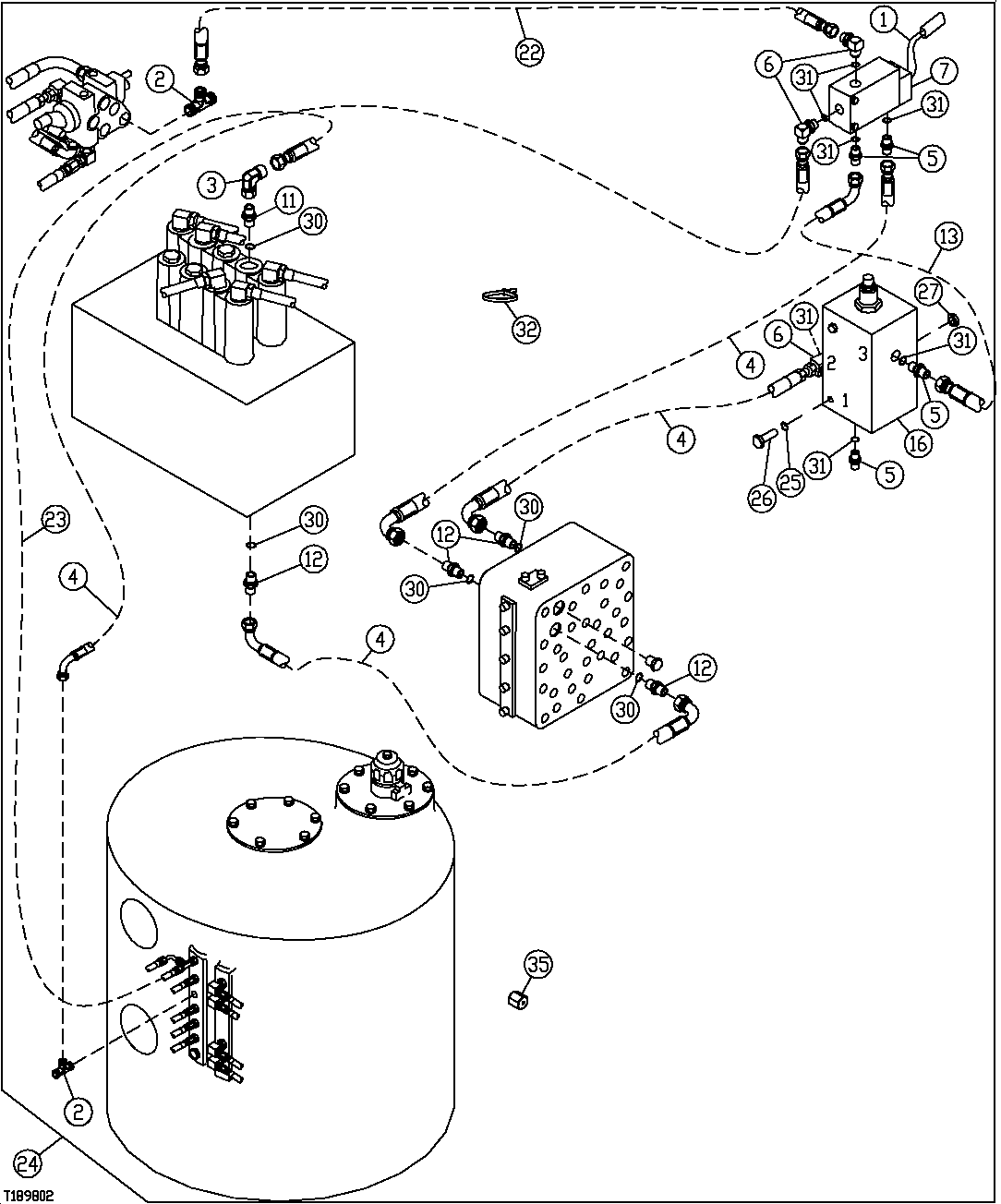

AUXILIARY SOLENOID AND FLOW CONTROL VALVE KIT (1-WAY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT191297	1	Wiring Harness	-
2	AT36921	3	Tee Fitting	-
3	AE24616	1	Elbow Fitting	-
4	AT71732	4	Hydraulic Hose	-
5	R27212	4	Fitting	-
6	AT35121	4	Elbow Fitting	-
7	AT306723	1	Elec.Proportional Valve	(SUB FOR <service-part qty="1">AT116486</service-part> AND <service-part qty="1">AT140041</service-part>)SOLENOID
7	-	1	Part 8	( <service-part>AT140041</service-part> NLA)
11	AT130053	1	Adapter Fitting	-
12	4200466	4	Adapter Fitting	-
13	AE42718	1	Hydraulic Hose	-
16	AT186623	1	Hydraulic Pressure Valve	-
22	AT130684	1	Hydraulic Hose	9/16" X 2520 mm (99-1/4") X 9/16"
23	AT71082	1	Hydraulic Hose	9/16" X 711 mm (28") X 9/16"
24	-	1	Part 15	(WHOLE GOODS) (ALSO ORDER T188662 INSTRUCTIONS), Complete Kit, ( AT186622 NLA)
25	24M7139	4	Washer	6.400 X 18 X 1.600 mm, (NOT ILLUSTRATED)
26	19M7529	4	Cap Screw	M6 X 55
27	14M7272	4	Nut	M6
30	CH11570	5	O-Ring	-
31	R26448	7	O-Ring	-
32	R44302	4	Tie Band	-
33	AH75160	2	Elbow Fitting	(NOT ILLUSTRATED)
35	R31147	1	Fitting	-

AUXILIARY SOLENOID AND FLOW CONTROL VALVE KIT (1-WAY)
