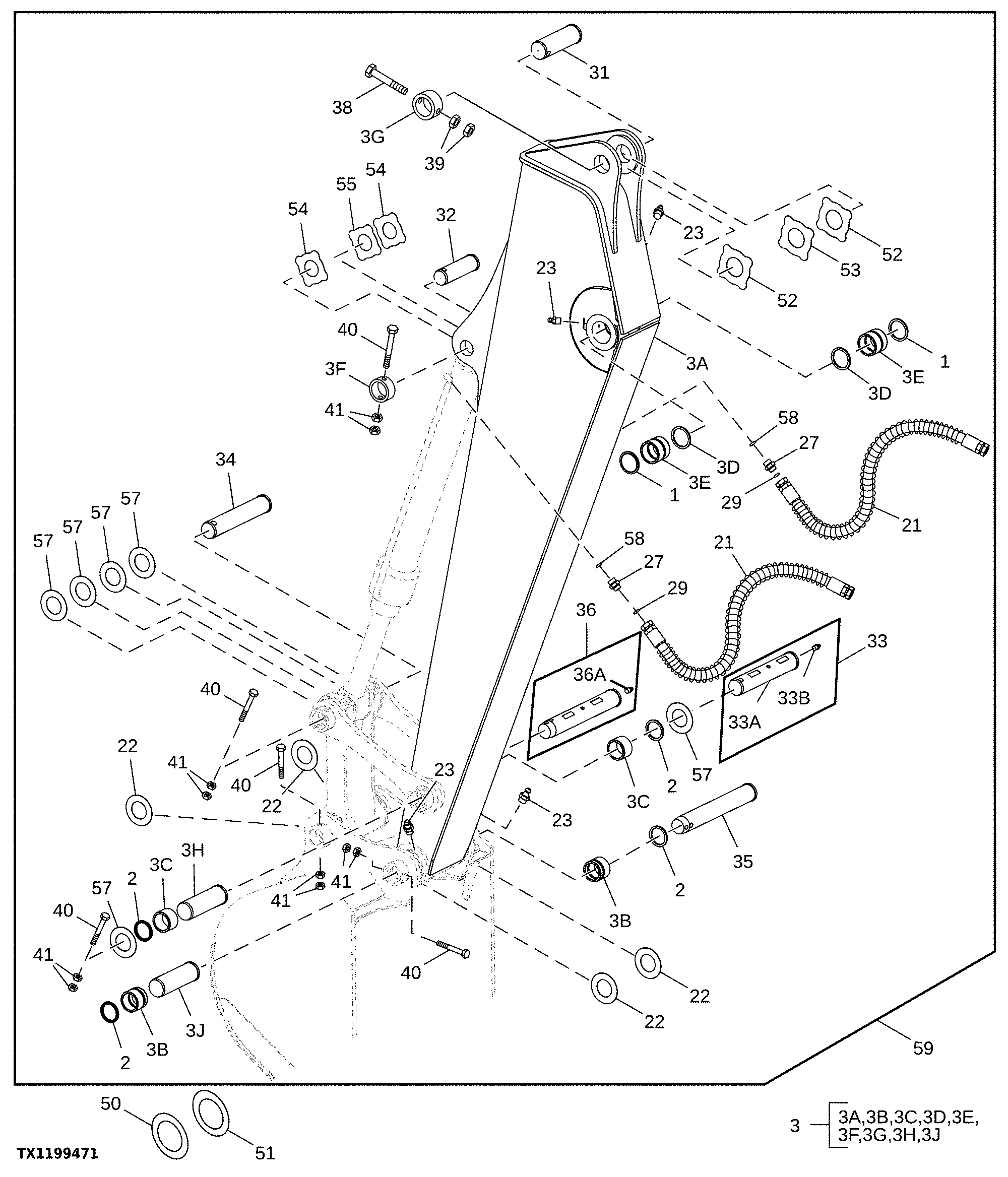

ARM, PINS, AND BUCKET CYLINDER HOSES (STANDARD ARM, 2.52M)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TH104472	2	Seal	SUB FOR 4084578
2	4065687	4	Seal	-
3	AP37202	1	Arm	-
21	4296276	2	Hydraulic Hose	-
22	AT349465	4	Seal	Split O-Ring
22	4276696	4	O-Ring	Standard O-Ring
23	TH100074	4	Lubrication Fitting	-
27	A853144	2	Adapter Fitting	-
29	T77857	2	O-Ring	-
31	3089156	1	Pin Fastener	-
32	3089107	1	Pin Fastener	-
33	AP33639	1	Pin	-
34	P66990	1	Shear Pin	-
35	3089243	1	Pin Fastener	-
36	-	1	Part 27	P68886 NLA; SUB 3089242
38	19M7907	1	Screw	M20 X 140
39	14M7277	2	Nut	M20, SUB FOR J950020
40	19M8043	5	Cap Screw	M16 X 140
41	14M7276	10	Nut	M16
50	T229330	1	Shim	1.0 mm, Bucket to Arm, SUB FOR T241931
51	T241938	1	Shim	0.5 mm, Bucket to Arm
52	TH108045	2	Washer	-
53	AT154378	1	Washer	-
54	TH105592	2	Washer	-
55	4366692R	1	Thrust Washer	SUB FOR TH105593, AT214030 OR 4366692
57	TH108944	6	Washer	-
58	4506418	2	O-Ring	-
59	AP35346	1	Kit	Includes Arm, Bucket Cylinder, Hoses and Linkage, WHOLE GOODS
3A	-	1	Part 4	-
3B	4424953	2	Bushing	-
3C	4344898	2	Bushing	-
3D	TH104472	2	Seal	SUB FOR 4084578
3E	4443878	2	Bushing	-
3F	4434951	1	Stop	-
3G	4434952	1	Stop	-
3H	4374948	1	Line	SUB FOR P68261
3J	P68263	1	Spacer	-
3K	8077281	1	Boss	Replacement Arm End Part Not Illustrated
33A	-	1	Part 23	3089106 NLA
33B	TH100074	1	Lubrication Fitting	-
36A	TH100074	1	Lubrication Fitting	USE WITH P68886
36B	3089242	1	Pin Fastener	Not Illustrated Connects Bucket to Bucket Drive Links Pin Not Drilled For Grease Fitting See DTAC Solution 90615

ARM, PINS, AND BUCKET CYLINDER HOSES (STANDARD ARM, 2.52M)
