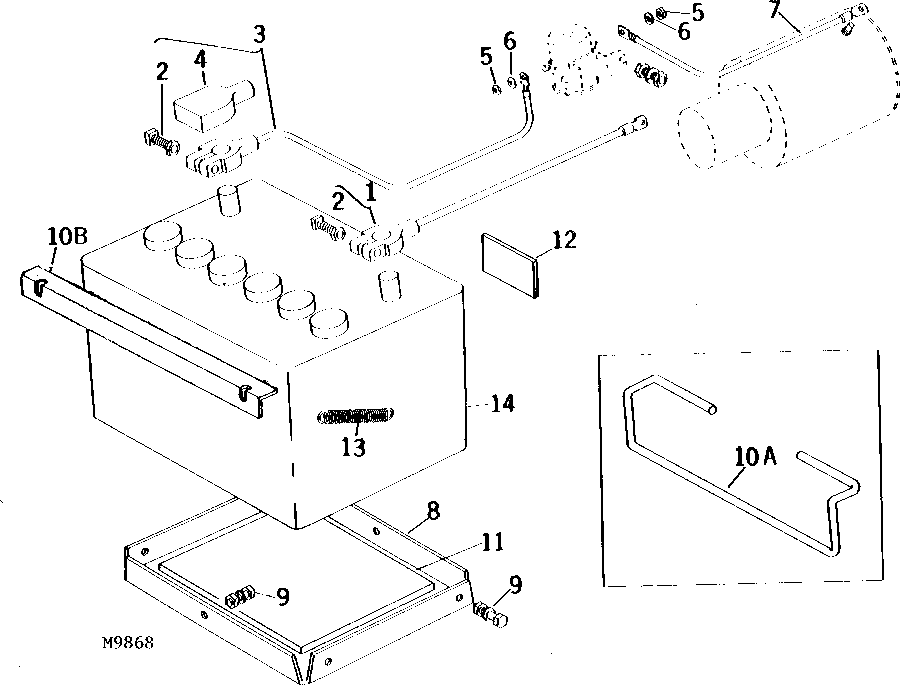

BATTERY, STARTER CABLES AND BATTERY BASE [A16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM31405	1	CABLE	NEGATIVE (16-1/2" LONG)
2	08H4316	2	Bolt	5/16" X 1-1/4"
2	14H785	2	Nut	5/16"
3	AM31404	1	BATTERY CABLE	POSITIVE (15" LONG)
4	M86133	1	Cover	POSITIVE POST, (SUB FOR M42372, M80633 AND M83639)
5	14H882	2	Nut	5/16"
6	12H291	2	Lock Washer	5/16"
7	AM31403	1	CABLE	(12-1/2" LONG) (SOLENOID TO STARTER)
8	M42549	1	BASE	-
9	19H1227	5	Cap Screw	1/4" X 1/2"
9	14H786	5	Nut	1/4"
9	12H302	5	Lock Washer	1/4"
11	M44311	1	PAD	(SUB FOR M44075)
12	M44074	1	PAD	(NO LONGER AVAILABLE)
13	S337M	2	Extension Spring	-
14	TY6181	1	DRY CHARGED BATTERY	(SUB FOR AM31186)
..	M82800	1	Cap	(PKG. OF 2) (SUB FOR AM33331)
10A	M44312	1	RETAINER	-
10B	AM101500	1	Battery Kit	BATTERY HOLDDOWN (INCLUDES POSITIVE POST COVER) (SUB FOR M42373)

BATTERY, STARTER CABLES AND BATTERY BASE [A16]
