№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3028363	1	BUSHING	(SUB FOR TH100346)
5	4179109	1	PIN	(SUB FOR TH103619)
6	-	7	Part 3	(SUB AT146242)(K2) ( TH100348 NO LONGER AVAILABLE)
7	-	3	Part 4	(SUB AT146242)(K2) ( TH100349 NO LONGER AVAILABLE)
8	-	1	Part 5	( TH100347 NLA)
9	19M7404	3	Cap Screw	M14 X 40
10	12H317	3	Lock Washer	9/16"
11	TH108649	2	Bushing	-
13	C610778	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (BUCKET EAR BLANK ASSEMBLY)
14	607048	2	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (RIGHT AND LEFT SIDE)
15	AT131081	1	Dura-Max Cutting Edge	(CUT TO LENGTH)
16	304960	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (UPPER RIGHT SIDE CUTTER)
17	304961	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (UPPER LEFT SIDE CUTTER)
18	304968	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (LEFT SIDE CUTTER INSERT)
19	304967	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (RIGHT SIDE CUTTER INSERT)
20	604653	1	Moldboard	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH BUCKET)
20	604652	1	Moldboard	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (30 INCH BUCKET)
20	604647	1	Moldboard	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (18 INCH BUCKET)
20	604650	1	Moldboard	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (24 INCH BUCKET)
21	-	1	Part 20	(K) (SUB AT131080)
22	-	1	Part 21	(K) (SUB AT131080)
23	09H1770	6	Bolt	(K) 7/8" X 2-1/2", (K3)
24	12H245	6	Lock Washer	(K) 7/8", (K3)
25	14H1077	6	Nut	(K) 7/8"
27	304966	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (INNER WEAR)
28	306618	2	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (OUTER WEAR)
29	-	1	Part 27	(WEAR SHROUD), (SUB AT167874 (K3))
30	-	1	Part 28	(WEAR SHROUD), (SUB AT167874 (K3))
31	14H1044	6	Nut	7/8", (K3)
40	-	1	Part 30	( <service-part>AT163576</service-part> NLA) (WHOLE GOODS) 18 INCH (34 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 31	(SUB <service-part qty="1">AT332661</service-part>)( <service-part >AT163577</service-part> NLA) (WHOLE GOODS) 24 INCH (50 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 32	(SUB <service-part qty="1">AT332662</service-part>)( <service-part >AT163578</service-part> NLA) (WHOLE GOODS) 30 INCH (64 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 33	(SUB <service-part qty="1">AT332663</service-part>)( <service-part >AT163579</service-part> NLA) (WHOLE GOODS) 36 INCH (78 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
90	-	1	Part 34	INCLUDES ALL (K1) PARTS, ( AT131080 NLA)
91	AT146242	1	Shim Kit	INCLUDES ALL (K2) PARTS
92	-	1	Part 36	( AT167874 NLA) INCLUDES ALL (K3) PARTS (EDGE PROTECTOR KIT)

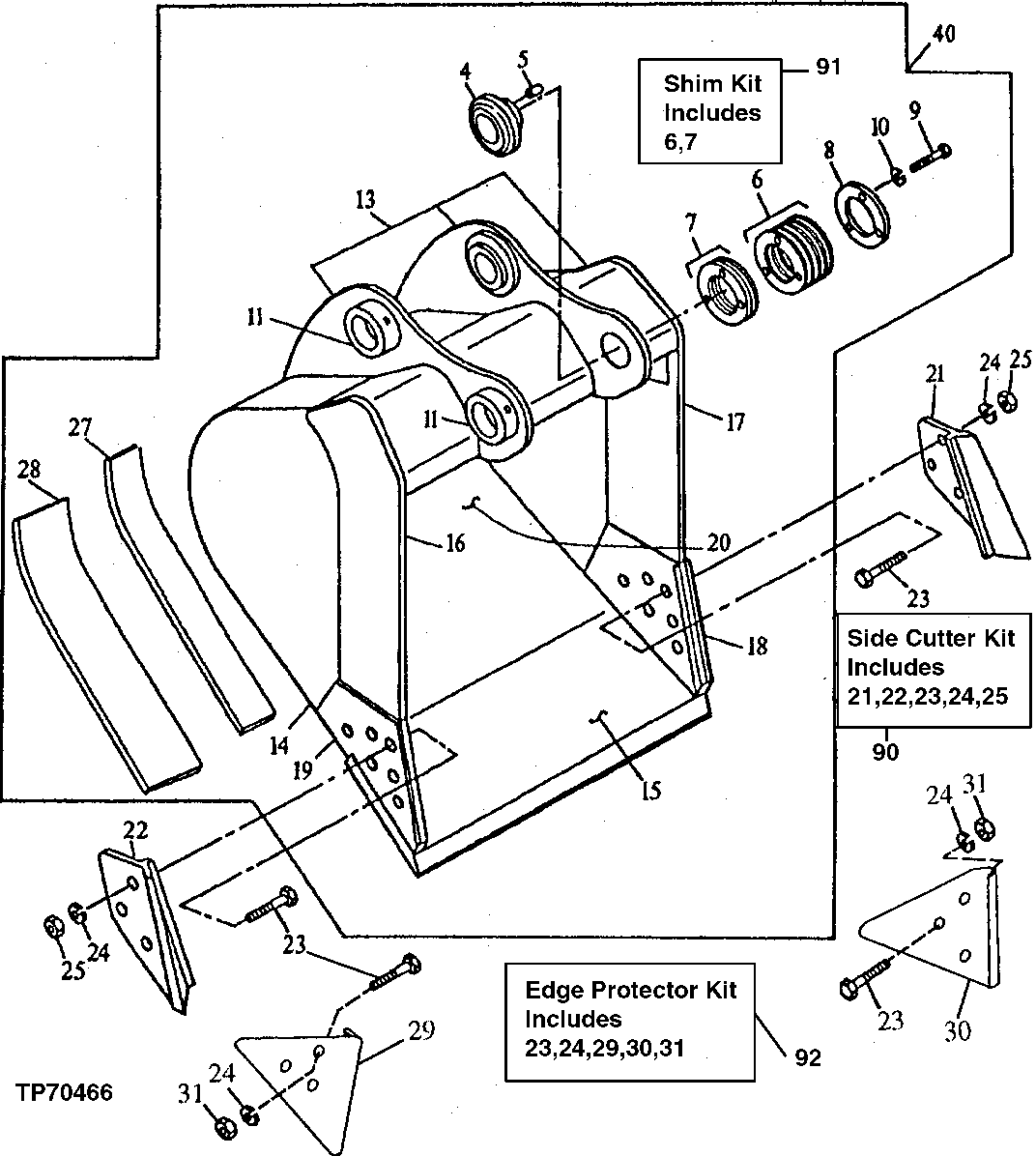

Bucket (Heavy Duty) (Also Order Bucket Tooth Assemblies)
