HOUSINGS FOR ELECTRICAL PLUG CONNECTORS [02H05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

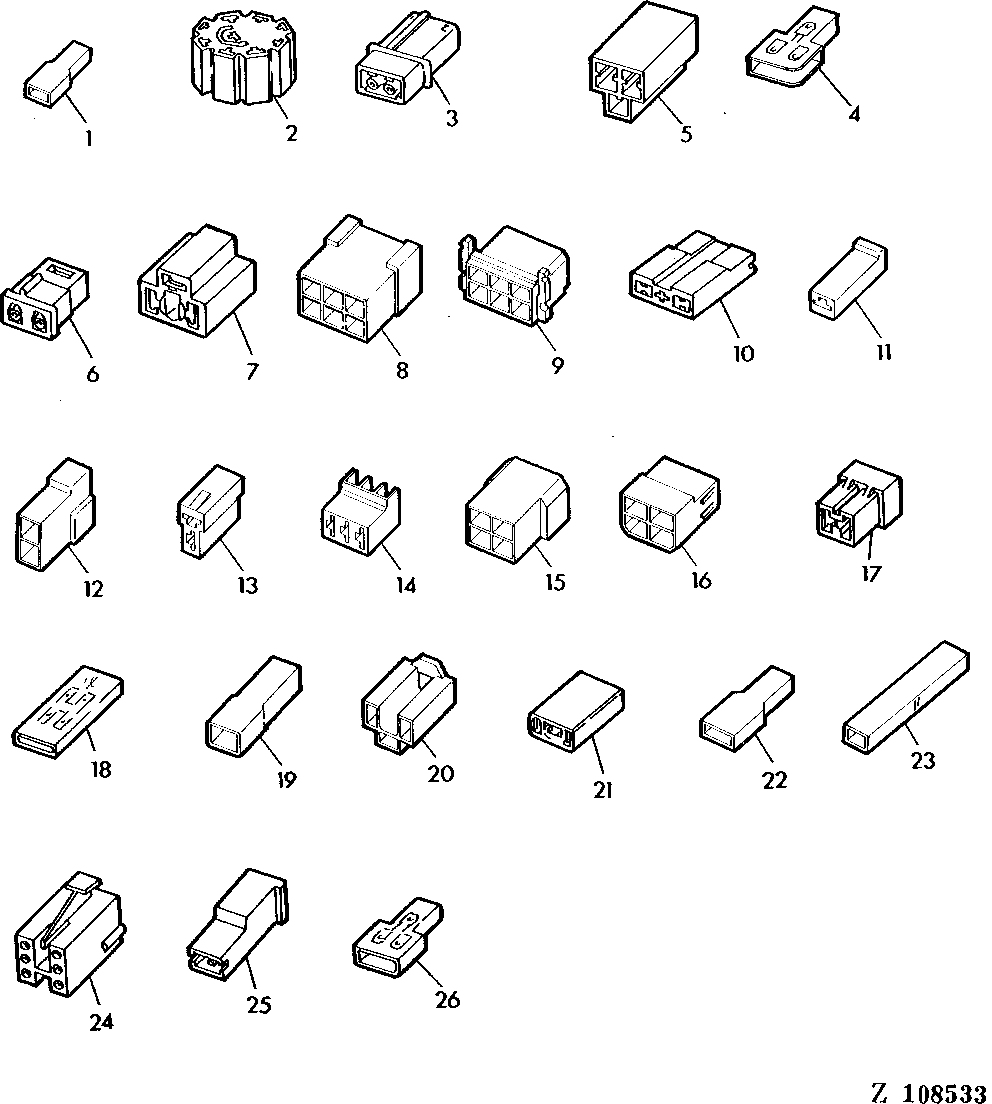

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7033	1	Elec. Connector Accessory	-
2	Z40754	1	ELECTRICAL CONNECTOR ASSY	-
3	Z40862	1	ELEC. CONNECTOR HOUSING	-
4	57M7107	1	Elec. Connector Housing	-
5	57M7092	1	Elec. Connector Housing	-
6	Z40696	1	Socket	-
7	Z40753	1	ELEC. CONNECTOR HOUSING	-
8	57M7059	1	Elec. Connector Housing	-
9	57M7058	1	Elec. Connector Housing	-
10	Z40742	1	ELEC. CONNECTOR HOUSING	-
11	57M7067	1	Elec. Connector Housing	-
12	57M7066	1	Elec. Connector Housing	-
13	57M7065	1	Elec. Connector Housing	-
14	57M7062	1	Elec. Connector Housing	-
15	57M7061	1	Elec. Connector Housing	-
16	57M7060	1	Elec. Connector Housing	-
17	Z30963	1	ELEC. CONNECTOR HOUSING	-
18	AZ31110	1	ELEC. CONNECTOR HOUSING	-
19	57M7068	1	Elec. Connector Housing	-
20	57M7064	1	Elec. Connector Housing	-
21	H104855	1	Electrical Connector Assy	-
22	57M7072	1	INSULATING SLEEVE	-
23	57M7073	1	Elec. Connector Housing	-
24	Z40756	1	ELEC. CONNECTOR TERMINAL	-
25	Z40757	1	Elec. Connector Accessory	-
26	AZ31109	1	ELEC. CONNECTOR TERMINAL	-

HOUSINGS FOR ELECTRICAL PLUG CONNECTORS [02H05]

Нет текстового описания
