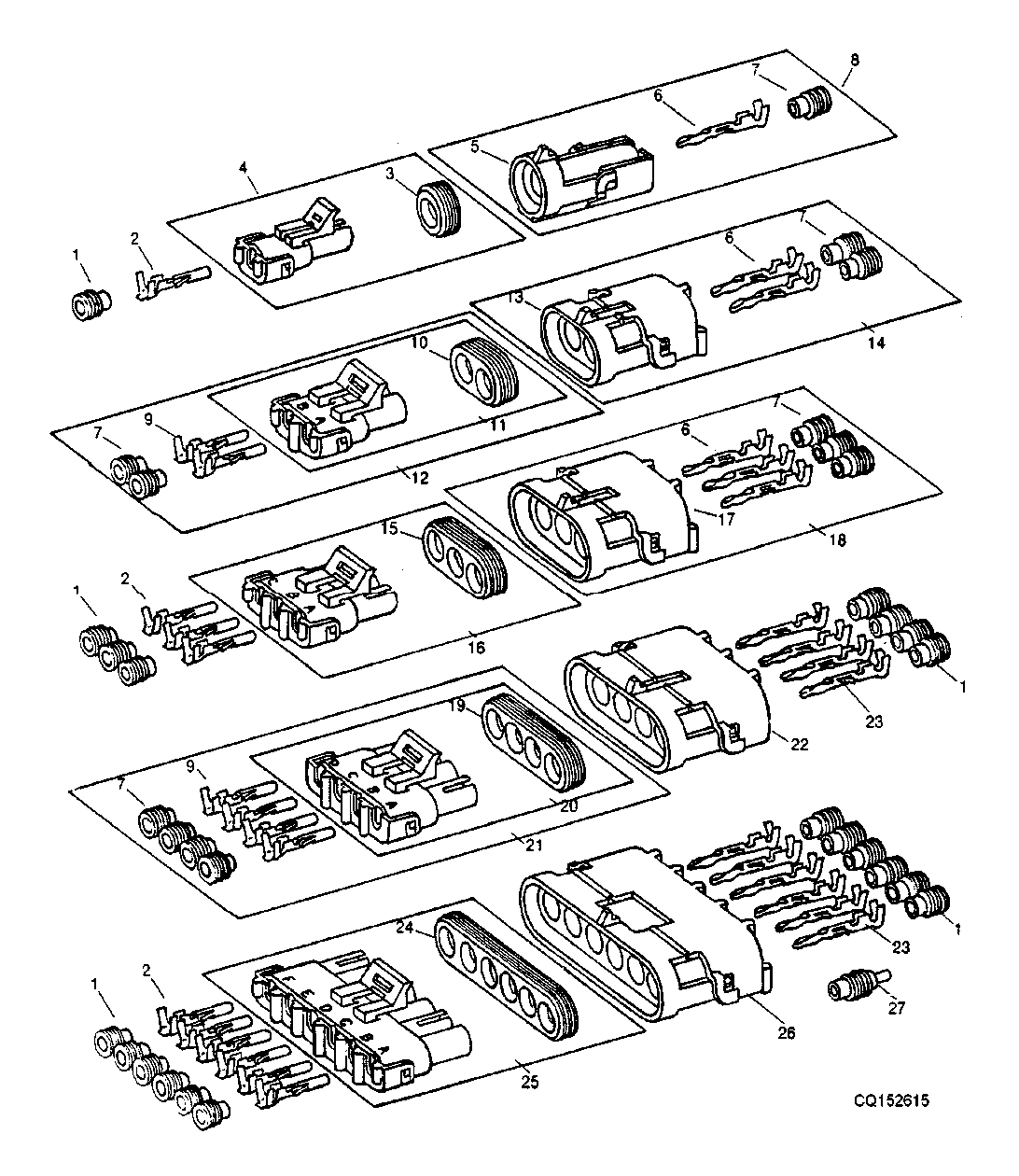

WEATHERPACK TERMINALS AND CONNECTORS - 8.1L ENGINE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78063	1	Elec. Connector Seal	PKG OF 40
2	R78057	1	Elec. Connector Terminal	TK=0,8MM 213MM PKG OF 40
3	R78047	1	Seal	PKG OF 5
4	RE12362	1	Electrical Connector Assy	PKC OF 3
5	R78052	1	Electrical Connector Assy	PKC OF 3
6	R78061	1	Elec. Connector Terminal	TK=2,0MM 213MM PKG OF 40
7	R78063	1	Elec. Connector Seal	PKG OF 40
8	RE12334	1	Electrical Connector Assy	-
9	R78060	1	Elec. Connector Terminal	TK=2,0MM 213MM PKG OF 40
10	R78048	1	Elec. Connector Accessory	PKG OF 5
11	RE12363	1	Electrical Connector Assy	PKC OF 3
12	RE12331	1	Electrical Connector Assy	-
13	R78053	1	Electrical Connector Assy	PKC OF 3
14	RE12330	1	Electrical Connector Assy	-
15	R78049	1	Seal	PKG OF 5
16	RE12364	1	Electrical Connector Assy	PKC OF 3
17	R78054	1	Electrical Connector Assy	PKC OF 3
18	RE12332	1	Electrical Connector Assy	-
19	R78050	1	Seal	PKG OF 5
20	RE12365	1	Electrical Connector Assy	PKG OF 2
21	RE12333	1	Electrical Connector Assy	-
22	R78055	1	Electrical Connector Assy	PKG OF 2
23	R78061	1	Elec. Connector Terminal	TK=2,0MM 213MM PKG OF 40
24	R78051	1	Seal	PKG OF 5
25	RE12366	1	Electrical Connector Assy	PKG OF 2
26	R78056	1	Electrical Connector Assy	PKG OF 2
27	R78064	1	Elec. Connector Cavity Plug	PKG OF 40
-	R78058	1	Elec. Connector Terminal	TK=0,8MM 213MM PKG OF 40
-	R78060	1	Elec. Connector Terminal	TK=2,0MM 213MM PKG OF 40
-	R78062	1	Elec. Connector Seal	PKG OF 40
-	R78059	1	Elec. Connector Seal	PKG OF 40

WEATHERPACK TERMINALS AND CONNECTORS - 8.1L ENGINE
