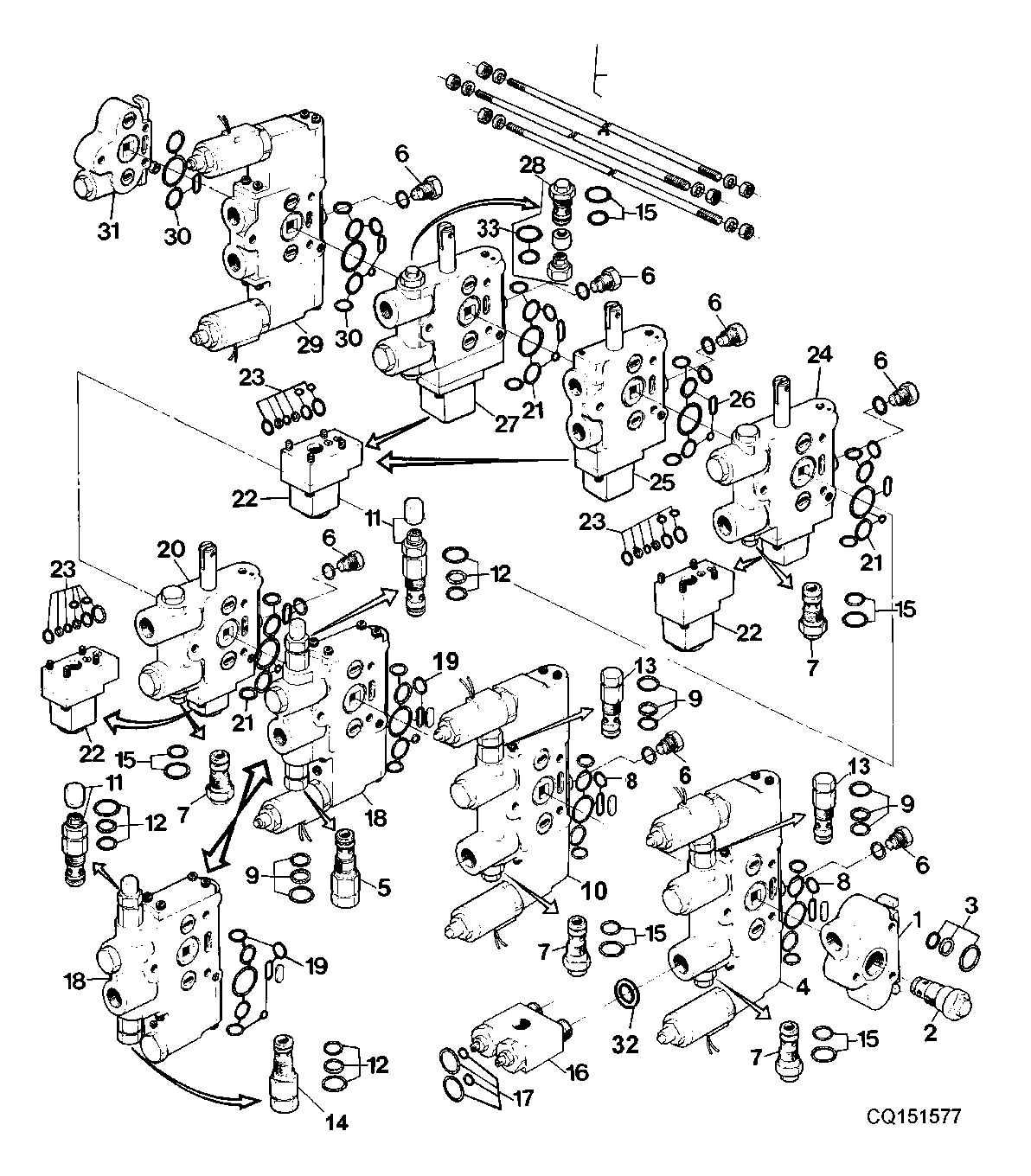

CONTROL VALVE W/AHHC AND FOR MASTER - COMPONENTS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DQ20149	1	Valve	INCL KEYS 2,3 WITH MASTER AUTOMATIC HEIGHT CONTROL
2	DQ20224	1	Piston Replacement Kit	-
3	DQ20174	1	Seal Kit	INCL KEYS 32
4	DQ28301	1	Receptacle Connector Body	INCL, 6,7,8,9,13 AUTOMATIC HEIGHT CONTROL, WITH MASTER
5	DQ20222	1	Pressure Relief Valve	INCL KEYS 9
6	DQ20226	1	Check Valve	-
7	DQ20225	1	Piston Replacement Kit	-
8	DQ20181	1	Seal Kit	-
9	DQ20223	1	Seal Kit	INCL KEYS 33
10	DQ28302	1	Receptacle Connector Body	INCL, 6,7,8,9,13 WITH MASTER-AUTOMATIC HEIGHT CONTROL
11	DQ21348	1	Valve	INCL KEYS 12
12	DQ13973	1	Seal Kit	-
13	DQ21119	1	Pressure Relief Valve	INCL KEYS 9
14	DQ13968	1	Pressure Relief Valve	INCL KEYS 12
15	DQ13975	1	Seal Kit	-
16	DQ25076	1	Control Valve	INCL KEYS 17 AUTOMATIC HEIGHT CONTROL, WITH MASTER
17	DQ25077	1	Piston Replacement Kit	-
18	DQ28249	1	Valve	WITHOUT MASTER INCL KEYS 5,11,19
19	DQ20179	1	Seal Kit	-
20	DQ20153	1	Control Valve	INCL, 6,7,21,22 AUTOMATIC HEIGHT CONTROL, WITH MASTER
21	DQ20173	1	Seal Kit	-
22	DQ20170	1	Valve	INCL KEYS 23
23	DQ20182	1	Seal Kit	-
24	DQ20154	1	Control Valve	INCL,6,7,21,22 AUTOMATIC HEIGHT CONTROL, WITH MASTER
25	DQ20155	1	Valve	INCL, 6,22,26 AUTOMATIC HEIGHT CONTROL, WITH MASTER
26	DQ20177	1	Seal Kit	-
27	DQ20156	1	Valve	INCL KEYS 21,22,28 WITH MASTER
28	DQ12773	1	RETAINING VALVE	INCL KEYS 15
29	DQ28304	1	Elec. Connector Housing	WITH MASTER INCL KEYS 6,30
30	DQ20180	1	Seal Kit	-
31	DQ20158	1	Valve	AUTOMATIC HEIGHT CONTROL WITH MASTER
32	S06100	1	Washer	-
-	DQ34624	1	Valve	INCL KEYS 15
-	DQ33216	1	Control Valve	WITH MASTER
-	DQ33233	1	Control Valve	AUTOMATIC HEIGHT CONTROL
-	DQ33230	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ33232	1	Partition	AUTOMATIC HEIGHT CONTROL
-	DQ33225	1	Control Valve	WITH MASTER
-	DQ20191	1	Cylinder	INCL KEYS 21,22-28 AUTOMATIC HEIGHT CONTROL
-	DQ33227	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ33224	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ33226	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ39363	1	Partition	WITH MASTER
-	DQ20190	1	Control Valve	INCL KEYS 5,11,19 AUTOMATIC HEIGHT CONTROL
-	DQ33234	1	Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ33220	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ33219	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
-	DQ33223	1	Control Valve	WITH MASTER AUTOMATIC HEIGHT CONTROL
