Открытый узел

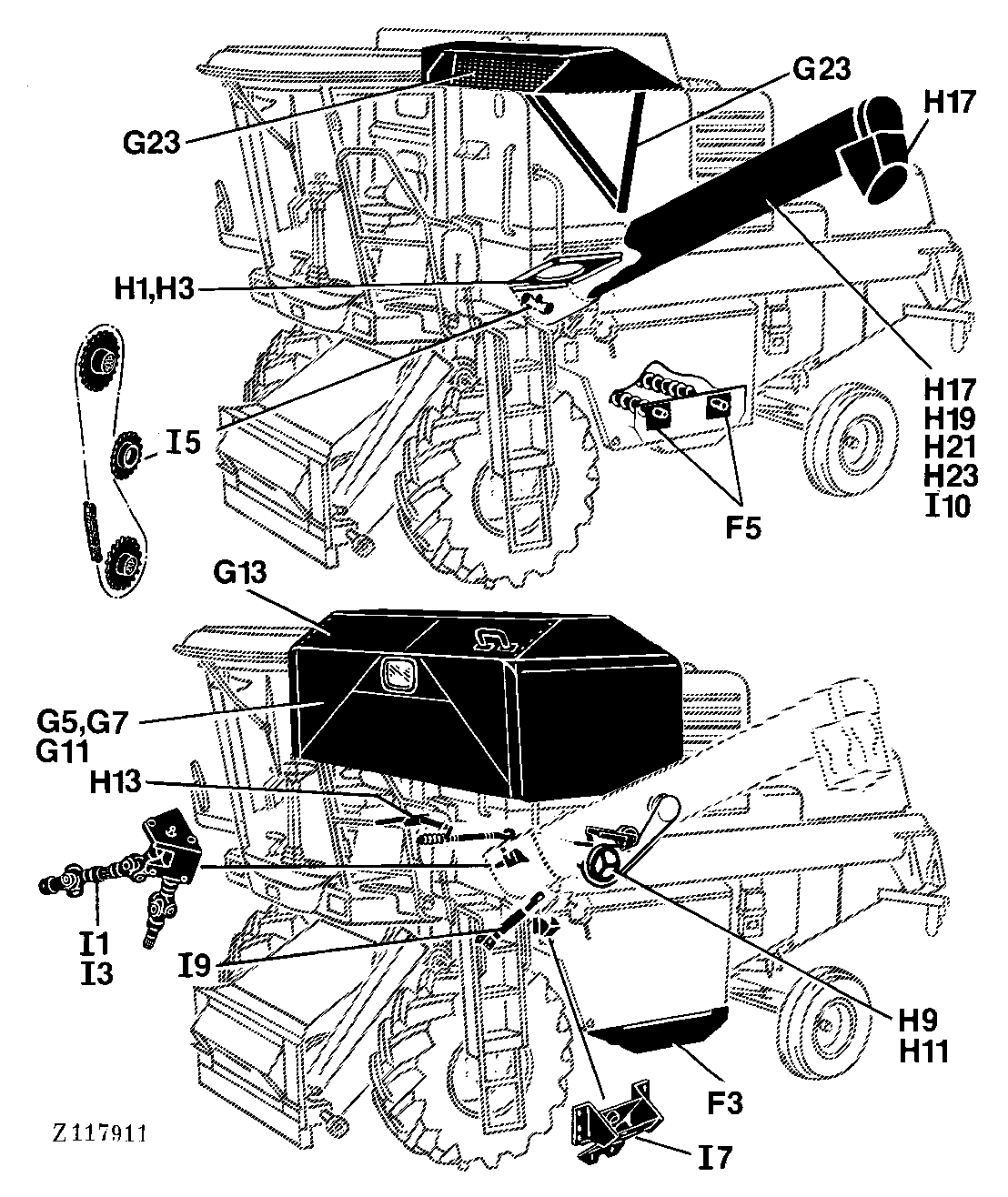

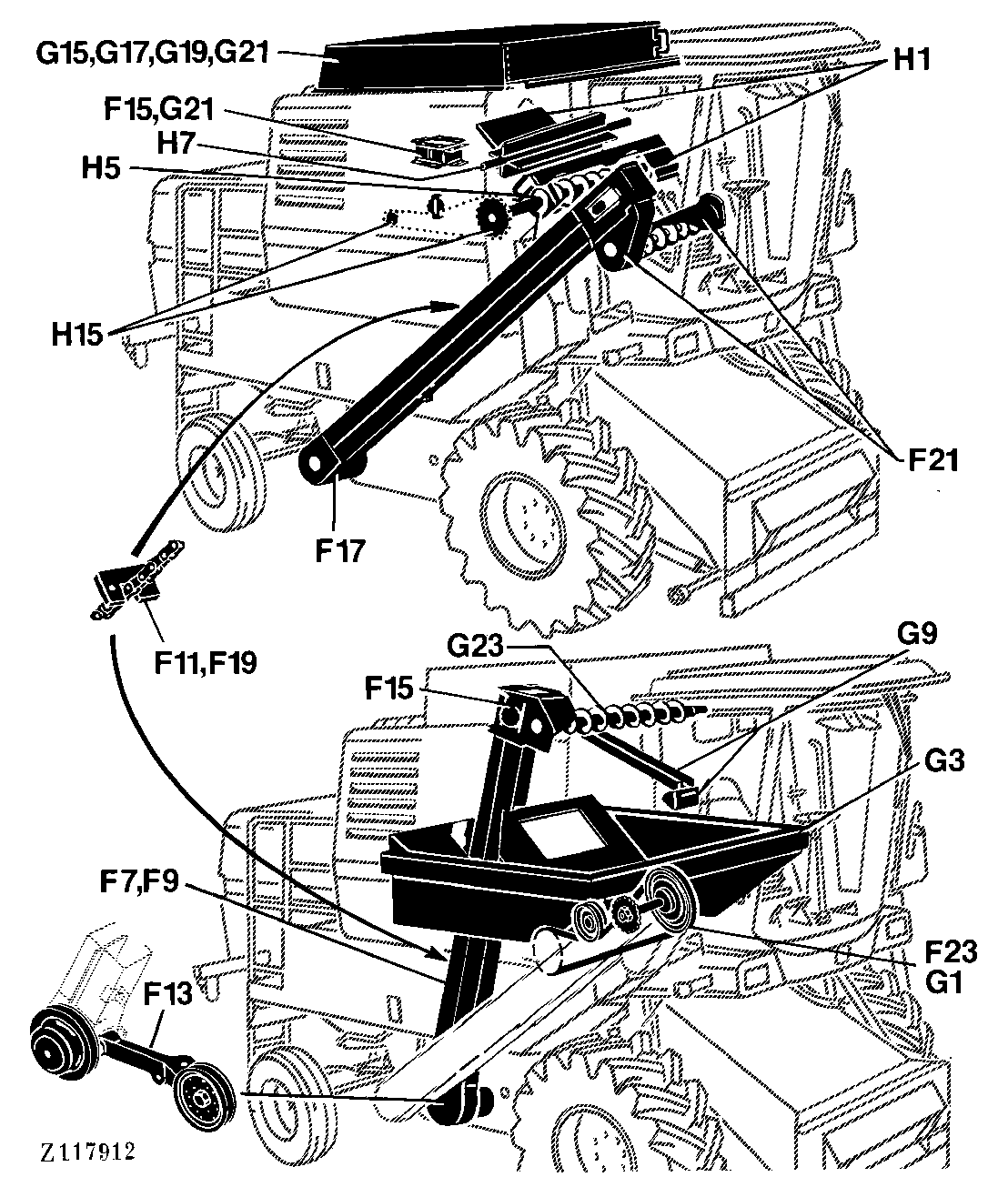

130 ELEVATORS,GRAINTANK AND UNLOADING AUGERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	TAILINGS ELEVATOR [07F17]	-
-	-	1	M E M O R A N D A [07I11]	-
-	-	1	M E M O R A N D A [07I12]	-
-	-	1	M E M O R A N D A [07I13]	-
-	-	1	M E M O R A N D A [07I14]	-
-	-	1	M E M O R A N D A [07I15]	-
-	-	1	M E M O R A N D A [07I16]	-
-	-	1	M E M O R A N D A [07I17]	-
-	-	1	M E M O R A N D A [07I18]	-
-	-	1	PADDLE ROLL-GRAIN TANK [07H07]	-
-	-	1	TAILINGS AND CLEAN GRAIN AUGER [07F05]	-
-	-	1	TAILINGS AND CLEAN GRAIN AUGER HOUSING [07F03]	-
-	-	1	TAILINGS AUGER AND ELEVATOR DRIVE [07G01]	-
-	-	1	GRAIN'TANK EXTENSION I [07G15]	-
-	-	1	TENSIONER FOR TAILINGS AUGER [07F23]	-
-	-	1	TRANSMISSION-UNLOADING AUGER DRIVE [07I01]	-
-	-	1	UNLOADING AUGER (LONG) [07H19]	-
-	-	1	UNLOADING AUGER [07H17]	-
-	-	1	UNLOADING AUGER DRIVE [07I03]	-
-	-	1	UNLOADING AUGER DRIVE(OUTER) [07I05]	-
-	-	1	UNLOADING AUGER HYDRAULIC CYLINDER SUPPORT [07I07]	-
-	-	1	UNLOADING AUGER SUPPORT [07I09]	-
-	-	1	UNLOADING AUGER(LONG) [07H21]	-
-	-	1	UPPER PART OF CLEAN GRAIN ELEVATOR [07F15]	-
-	-	1	UPPER PART OF TAILINGS ELEVATOR [07F21]	-
-	-	1	GRAIN TANK - LOWER PART [07G03]	-
-	-	1	CENTRAL LUBRICATING POINT-UNLOADING AUGER [07H03]	-
-	-	1	CHAIN - TAILINGS ELEVATOR [07F19]	-
-	-	1	CONTROL LINKAGE-UNLOADING AUGER [07H13]	-
-	-	1	CONVEYOR CHAIN-CLEAN GRAIN ELEVATOR [07F11]	-
-	-	1	CYLINDER - GRAIN TANK EXTENSION [07G19]	-
-	-	1	DRIVE-UNLOADING AUGER AND PADDLE ROLL [07H15]	-
-	-	1	GRAIN ELEVATOR [07F07]	-
-	-	1	GRAIN ELEVATOR [07F09]	-
-	-	1	GRAIN ELEVATOR DRIVE [07F13]	-
-	-	1	GRAIN RETAINER-UNLOADING AUGER [07I10]	-
-	-	1	GRAIN TANK - LOADING AUGER [07G23]	-
-	-	1	ADJUSTING DEVICE FOR UNLOADING AUGER DISCHARGE [07H23]	-
-	-	1	GRAIN TANK - UPPER PART [07G05]	-
-	-	1	GRAIN TANK ASSEMBLY PARTS [07G07]	-
-	-	1	GRAIN TANK ASSEMBLY PARTS [07G11]	-
-	-	1	GRAIN TANK ASSEMBLY PARTS [07H01]	-
-	-	1	GRAIN TANK COVER [07G13]	-
-	-	1	GRAIN TANK EXTENSION II [07G21]	-
-	-	1	GRAIN TANK SAMPLE [07G09]	-
-	-	1	GRAIN TANK UNLOADING AUGER [07H05]	-
-	-	1	GRAIN TANK UNLOADING-DRIVE [07H09]	-
-	-	1	GRAIN TANK UNLOADING-DRIVE II [07H11]	-
-	-	1	GRAIN'TANK EXTENSION [07G17]	-

130 ELEVATORS,GRAINTANK AND UNLOADING AUGERS

Нет текстового описания
