Открытый узел

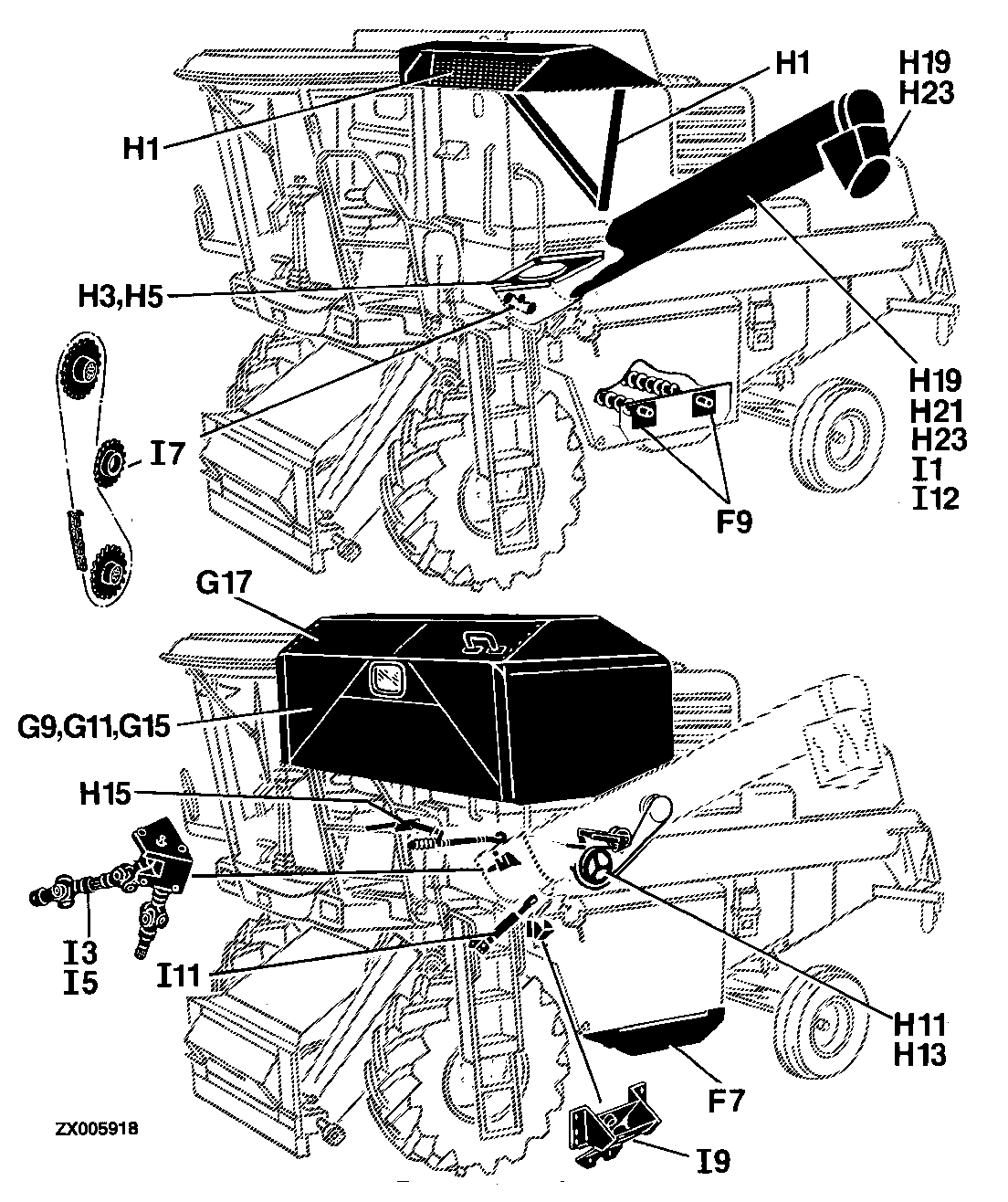

130 ELEVATORS, GRAIN TANK AND UNLOADING AUGER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	TRANSMISSION-UNLOADING AUGER DRIVE [06I03]	-
-	-	1	GRAIN TANK UNLOADING-DRIVE [06H11]	-
-	-	1	GRAIN TANK UNLOADING-DRIVE II [06H13]	-
-	-	1	GRAIN'TANK EXTENSION [06G19]	-
-	-	1	PADDLE ROLL-GRAIN TANK [06H09]	-
-	-	1	TAILINGS AND CLEAN GRAIN AUGER [06F09]	-
-	-	1	TAILINGS AND CLEAN GRAIN AUGER HOUSING [06F07]	-
-	-	1	TAILINGS AUGER AND ELEVATOR DRIVE [06G05]	-
-	-	1	TAILINGS ELEVATOR [06F21]	-
-	-	1	TENSIONER FOR TAILINGS AUGER [06G03]	-
-	-	1	GRAIN TANK UNLOADING AUGER [06H07]	-
-	-	1	UNLOADING AUGER (LONG) [06H21]	-
-	-	1	UNLOADING AUGER [06H19]	-
-	-	1	UNLOADING AUGER DRIVE [06I05]	-
-	-	1	UNLOADING AUGER DRIVE(OUTER) [06I07]	-
-	-	1	UNLOADING AUGER HYDRAULIC CYLINDER SUPPORT [06I09]	-
-	-	1	UNLOADING AUGER SUPPORT [06I11]	-
-	-	1	UNLOADING AUGER(LONG) [06H23]	-
-	-	1	UPPER PART OF CLEAN GRAIN ELEVATOR [06F19]	-
-	-	1	UPPER PART OF TAILINGS ELEVATOR [06G01]	-
-	-	1	GRAIN RETAINER-UNLOADING AUGER [06I12]	-
-	-	1	CENTRAL LUBRICATING POINT-UNLOADING AUGER [06H05]	-
-	-	1	CHAIN - TAILINGS ELEVATOR [06F23]	-
-	-	1	CONTROL LINKAGE-UNLOADING AUGER [06H15]	-
-	-	1	CONVEYOR CHAIN-CLEAN GRAIN ELEVATOR [06F15]	-
-	-	1	CYLINDER - GRAIN TANK EXTENSION [06G21]	-
-	-	1	DRIVE-UNLOADING AUGER AND PADDLE ROLL [06H17]	-
-	-	1	GRAIN ELEVATOR [06F11]	-
-	-	1	GRAIN ELEVATOR [06F13]	-
-	-	1	GRAIN ELEVATOR DRIVE [06F17]	-
-	-	1	ADJUSTING DEVICE FOR UNLOADING AUGER DISCHARGE [06I01]	-
-	-	1	GRAIN TANK - LOADING AUGER [06H01]	-
-	-	1	GRAIN TANK - LOWER PART [06G07]	-
-	-	1	GRAIN TANK - UPPER PART [06G09]	-
-	-	1	GRAIN TANK ASSEMBLY PARTS [06G11]	-
-	-	1	GRAIN TANK ASSEMBLY PARTS [06G15]	-
-	-	1	GRAIN TANK ASSEMBLY PARTS [06H03]	-
-	-	1	GRAIN TANK COVER [06G17]	-
-	-	1	GRAIN TANK EXTENSION II [06G23]	-
-	-	1	GRAIN TANK SAMPLE [06G13]	-

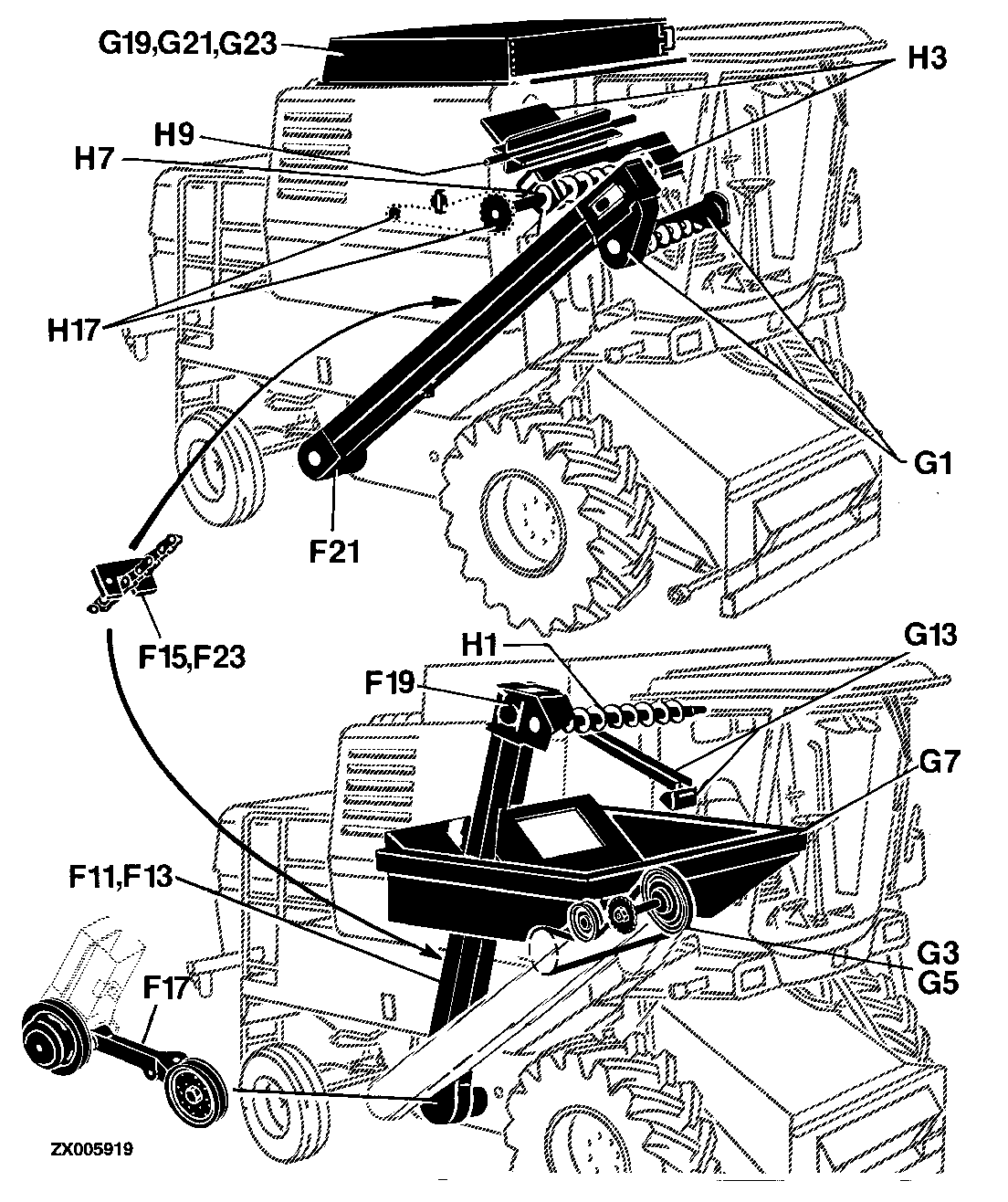

130 ELEVATORS, GRAIN TANK AND UNLOADING AUGER

Нет текстового описания
