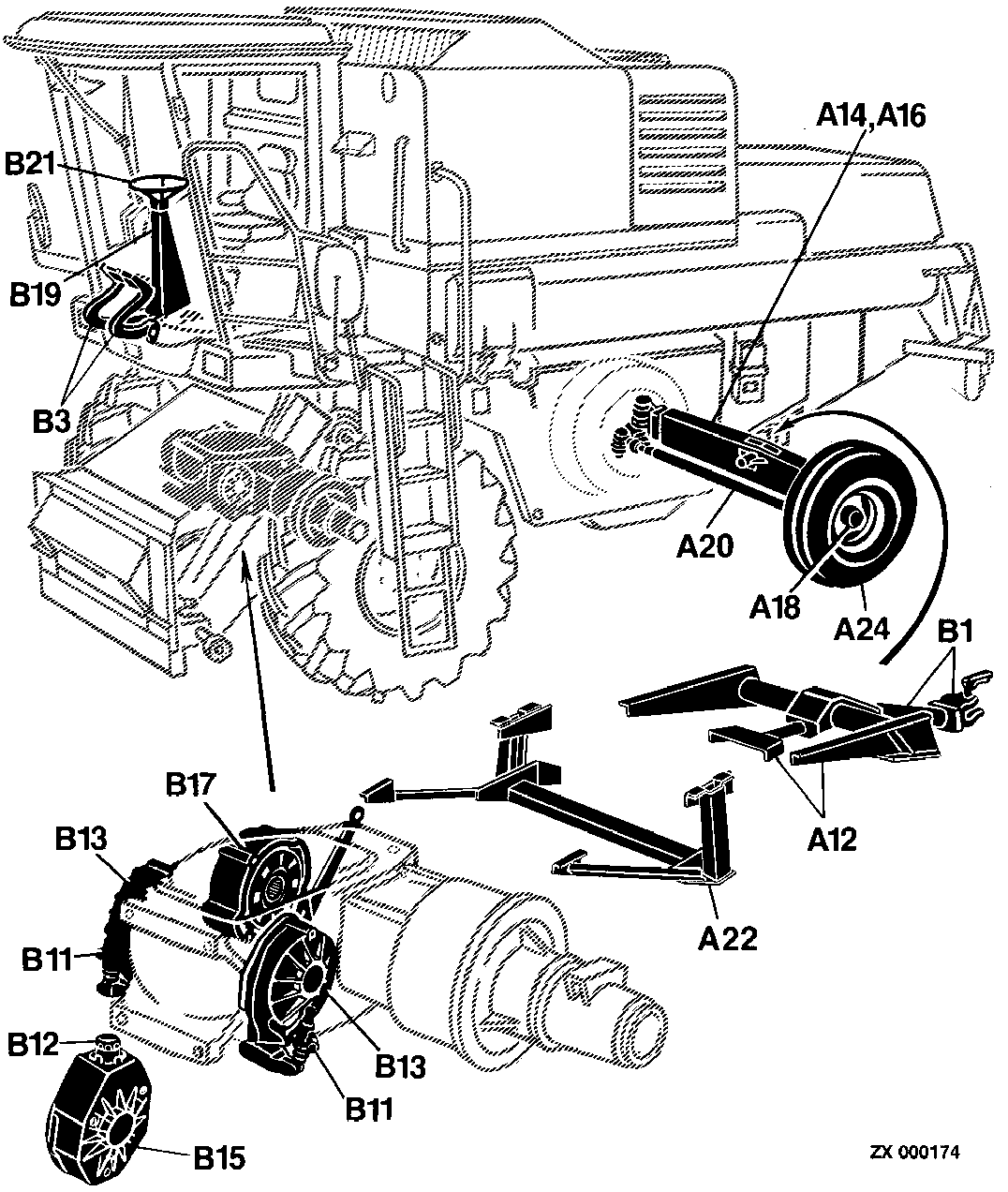

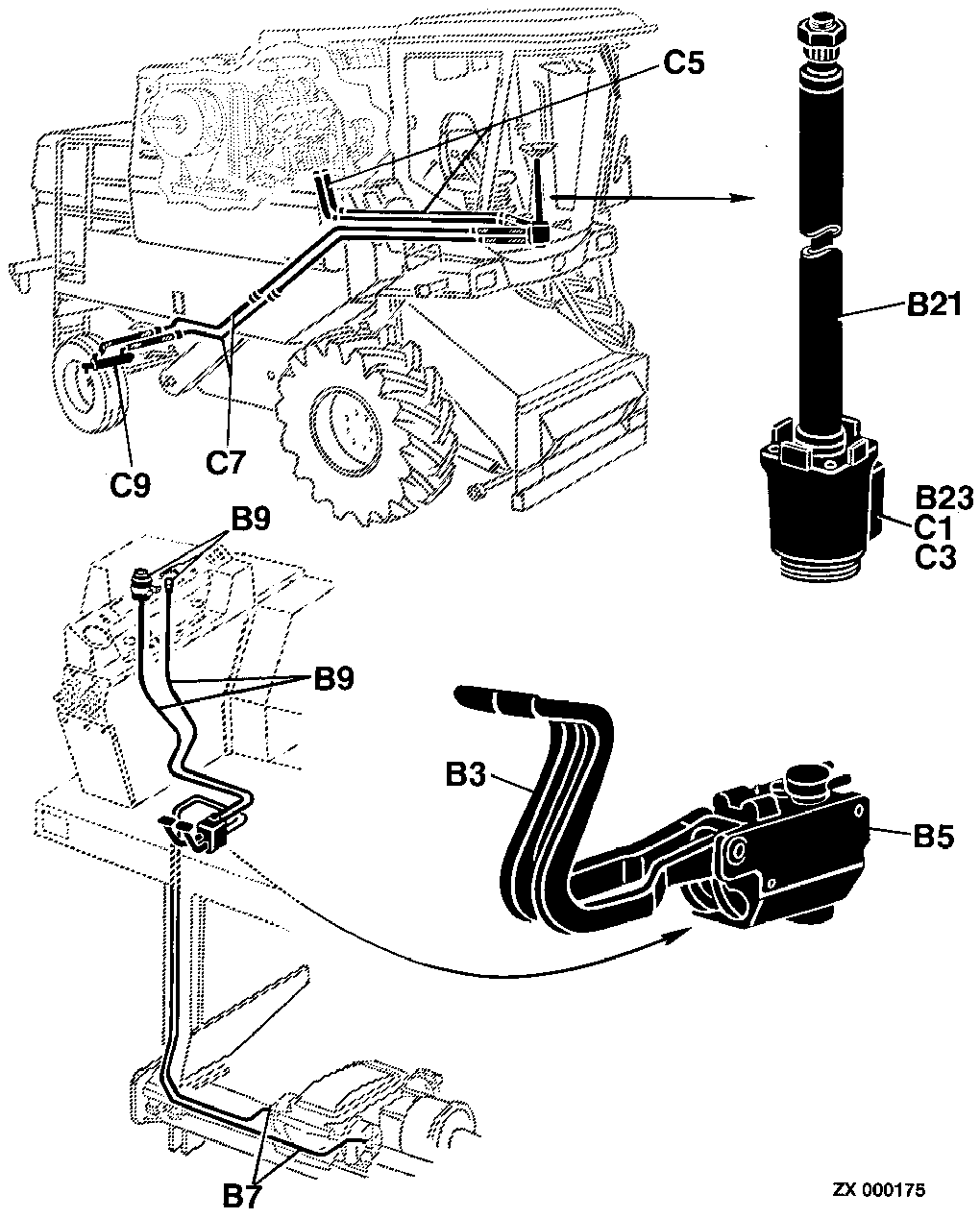

60 STEERING SYSTEMS, BRAKES AND REAR AXLE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	REAR WHEELS [03A24]	-
-	-	1	M E M O R A N D A [03C17]	-
-	-	1	M E M O R A N D A [03C18]	-
-	-	1	M E M O R A N D A [03C19]	-
-	-	1	M E M O R A N D A [03C20]	-
-	-	1	M E M O R A N D A [03C21]	-
-	-	1	M E M O R A N D A [03C22]	-
-	-	1	OIL LINES(BRAKE) [03B09]	-
-	-	1	REAR AXLE [03A16]	-
-	-	1	REAR AXLE SUPPORT BRACKET [03A12]	-
-	-	1	M E M O R A N D A [03C16]	-
-	-	1	SPINDLE KNUCKLE [03A18]	-
-	-	1	STEERING COLUMN [03B19]	-
-	-	1	STEERING COLUMN [03B21]	-
-	-	1	STEERING CYLINDER [03C09]	-
-	-	1	STEERING UNIT-SEAL KIT [03C01]	-
-	-	1	SUPPORT FOR ADJUSTABLE REAR AXLE [03A22]	-
-	-	1	TIE ROD [03A20]	-
-	-	1	TRAILER DRAWBAR [03B01]	-
-	-	1	HYDRAULIC LINES(BRAKE SYSTEM) [03B07]	-
-	-	1	BRAKE CYLINDER [03B11]	-
-	-	1	BRAKE CYLINDER [03B12]	-
-	-	1	BRAKE VALVE [03B05]	-
-	-	1	DISK BRAKES-FOOT BRAKE [03B13]	-
-	-	1	DISK BRAKES-FOOT BRAKE [03B15]	-
-	-	1	DISK BRAKES-HANDBRAKE [03B17]	-
-	-	1	FOOT PEDALS-BRAKE [03B03]	-
-	-	1	HYDRAULIC LINES (STEERING) [03C05]	-
-	-	1	HYDRAULIC LINES (STEERING) [03C07]	-
-	-	1	ADJUSTABLE REAR AXLE [03A14]	-
-	-	1	INDIVIDUAL PARTS FOR STEERING [03B23]	-
-	-	1	INDIVIDUAL PARTS FOR STEERING [03C03]	-
-	-	1	M E M O R A N D A [03B02]	-
-	-	1	M E M O R A N D A [03C11]	-
-	-	1	M E M O R A N D A [03C12]	-
-	-	1	M E M O R A N D A [03C13]	-
-	-	1	M E M O R A N D A [03C14]	-
-	-	1	M E M O R A N D A [03C15]	-

60 STEERING SYSTEMS, BRAKES AND REAR AXLE
