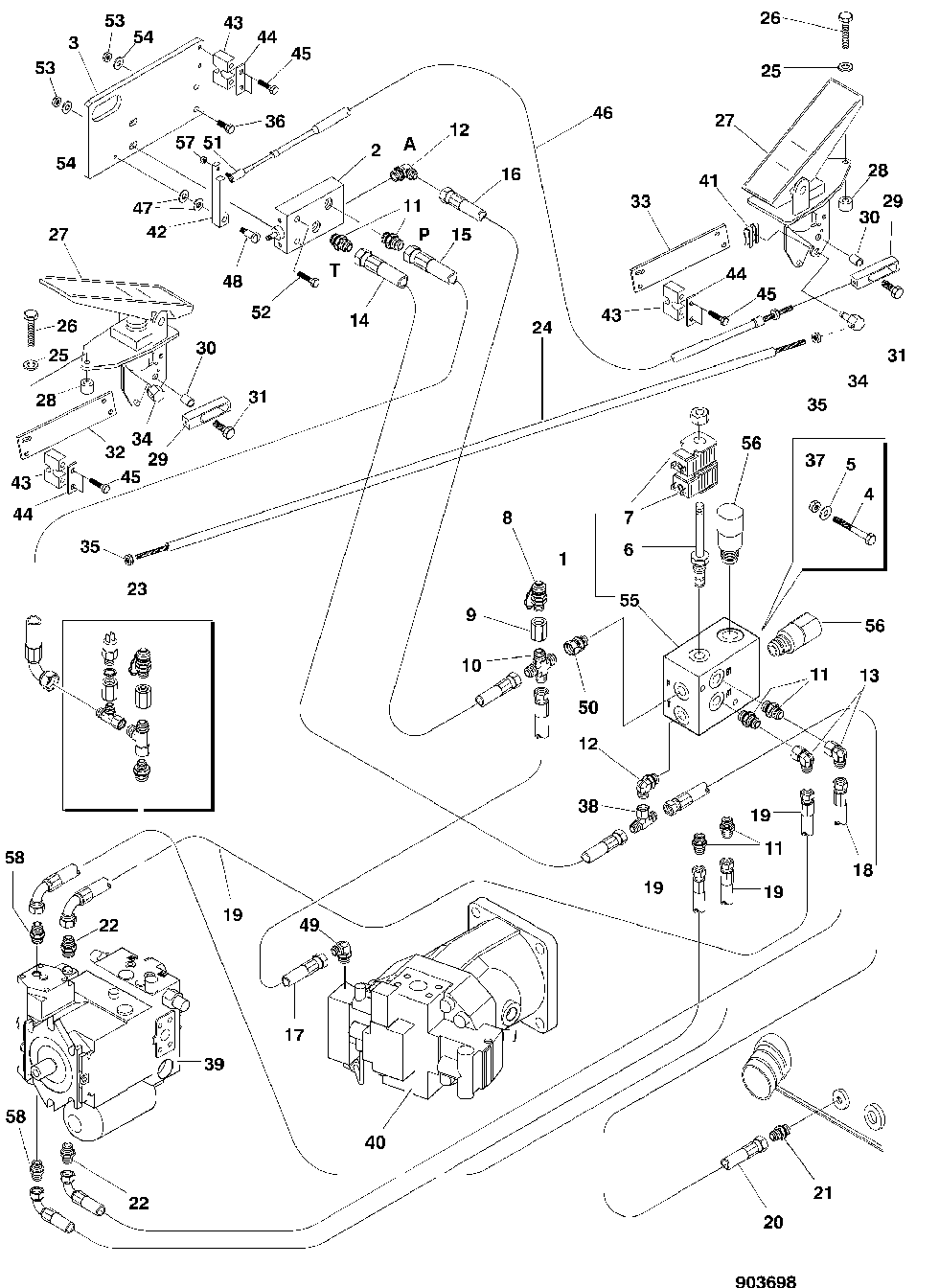

DRIVE SYSTEM PEDAL, HOSES, FITTINGS, AND COMPONENTS [G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F059282	1	VALVE ASSY	-
2	F062310	1	HYDR./PILOT CONTROL VALVE	-
3	F613749	1	BRACKET	-
4	F003472	2	SCREW	-
5	F003337	4	WASHER	-
6	F060198	1	Solenoid Valve	-
6	F060201	1	Seal Kit	-
7	F060200	2	Solenoid Valve Coil	-
8	F023426	1	Fitting	-
9	F024364	1	Fitting	-
10	F024366	1	Fitting	-
11	F005057	6	Fitting	-
12	F024599	2	Elbow Fitting	-
13	F022417	2	Elbow Fitting	-
14	F038346	1	Hydraulic Hose	L= 550
15	F024308	1	HOSE-ASSY	L= 1000
16	F038346	1	Hydraulic Hose	L= 750
17	F024309	1	Hydraulic Hose	L= 1200
18	F023037	1	HOSE-ASSY	L= 450
19	F024306	3	HOSE-ASSY	L= 700
20	F013533	1	Hydraulic Hose	L= 1400
21	F005056	1	Fitting	-
22	F024362	2	NIPPLE	-
23	-	1	Part 24	SEE PAGE 2160-5
24	F612778	1	CABLE	-
25	F003345	6	Spring Washer	-
26	F026218	6	SCREW	-
27	F004627	2	PEDAL	INCL ITEMS 34,41
28	F053445	6	SLEEVE	-
29	F612799	2	ROD	-
30	F612801	2	BUSHING	-
31	F003527	2	SCREW	-
32	F613161	1	PLATE	-
33	F613748	1	PLATE	-
34	F031845	2	HOLDER	-
35	F003562	2	NUT	-
36	F003524	2	SCREW	-
37	F024627	2	NUT	-
38	F026606	1	TEE FITTING	-
39	-	1	Part 40	SEE PAGE 2161-5
40	-	1	Part 41	SEE PAGE 2167-3
41	F031824	2	LOCKING PLATE	-
42	F613762	1	LEVER	-
43	F031840	3	HOLDER	-
44	F031841	3	FLAT PIECE	-
45	F013062	6	SCREW	-
46	F058782	1	CABLE	-
47	F030452	2	WASHER	-
48	F058781	1	SCREW	-
49	F022414	1	Elbow Fitting	-
50	F024875	1	CONNECTION	-
51	F034828	1	BALL JOINT	-
52	F003474	2	SCREW	-
53	F003563	4	NUT	-
54	F003338	4	WASHER	-
55	F060203	1	VALVE STACK	-
56	F060199	1	PRESSURE SWITCH	-
56	F060202	1	SEAL KIT	-
57	F003585	1	LOCK NUT	-
58	F055404	2	Fitting	-
