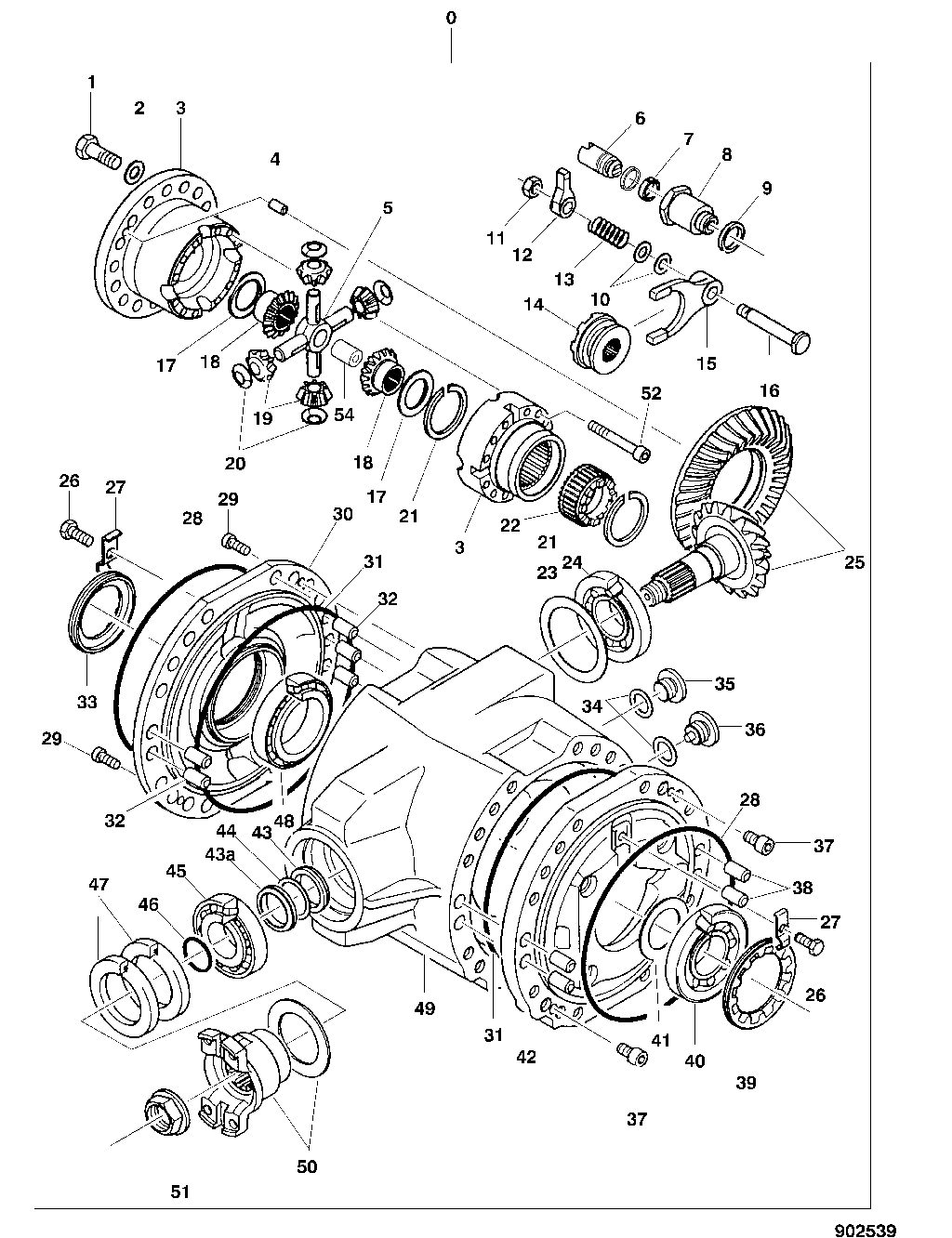

DIFFERENTIAL GEARS, BEARINGS, AND COMPONENTS [A24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F046111	1	DIFFERENTIAL	LOK 99
1	F049368	16	Self-Locking Screw	-
2	F009375	16	Washer	-
3	F049363	1	DIFFERENTIAL HOUSING	-
4	F004738	2	Pin	-
5	F043648	1	Shaft	-
6	F050812	1	Piston	-
7	F009469	1	Seal	-
8	F058934	1	Cylinder	-
9	F009465	1	Sealing Ring	-
10	F045259	1	Shim Kit	S= 1.5/2.0/2.5
11	F023666	1	Nut	-
12	F009403	1	LOCKING PLATE	-
13	F009394	1	Spring	-
14	F004977	1	Snap Ring	-
15	F009430	1	Fork	-
16	F009411	1	PIN	-
17	F045260	1	Shim Kit	S= 1.5/1.7/2.0/2.2
18	F049364	2	Gear	-
19	F049365	4	Gear	-
20	F044145	4	Runner	-
21	F004757	4	Snap Ring	-
22	F049366	2	Sleeve	-
23	F045327	1	Shim Kit	S= 3.0/2.75/2.5/2.25/2.0
24	F035840	1	Tapered Roller Bearing	-
25	F035841	1	CROWN WHEEL & PINION	-
26	F004638	2	Screw	-
27	F004891	2	Lock Washer	-
28	F025234	2	O-Ring	-
29	F004654	2	SCREW	-
30	F035842	1	Flange	-
31	F003308	2	O-Ring	-
32	F004740	5	PIN	-
33	F034624	1	Nut	-
34	F018108	2	Washer	-
35	F025332	1	Plug	-
36	F025228	1	Plug	-
37	F003415	2	SCREW	-
38	F035794	4	Dowel Pin	-
39	F004814	1	Nut	-
40	F004688	1	Tapered Roller Bearing	-
41	F004751	1	Snap Ring	-
42	F043649	1	Flange	-
43	F035843	1	Spacer	-
44	F045262	1	Shim Kit	S= 0.96 - 1.44
45	F009443	1	BEARING	-
46	F011429	1	O-Ring	-
47	F011427	2	Seal	-
48	F035796	1	Tapered Roller Bearing	-
49	F035845	1	HOUSING	-
50	F011442	1	Shaft	-
51	F021149	1	Nut	-
52	F004659	12	Cap Screw	-
53	F050813	1	Seal	-
54	F058119	1	STUD	-
43A	F035844	1	Spacer	-

DIFFERENTIAL GEARS, BEARINGS, AND COMPONENTS [A24]
