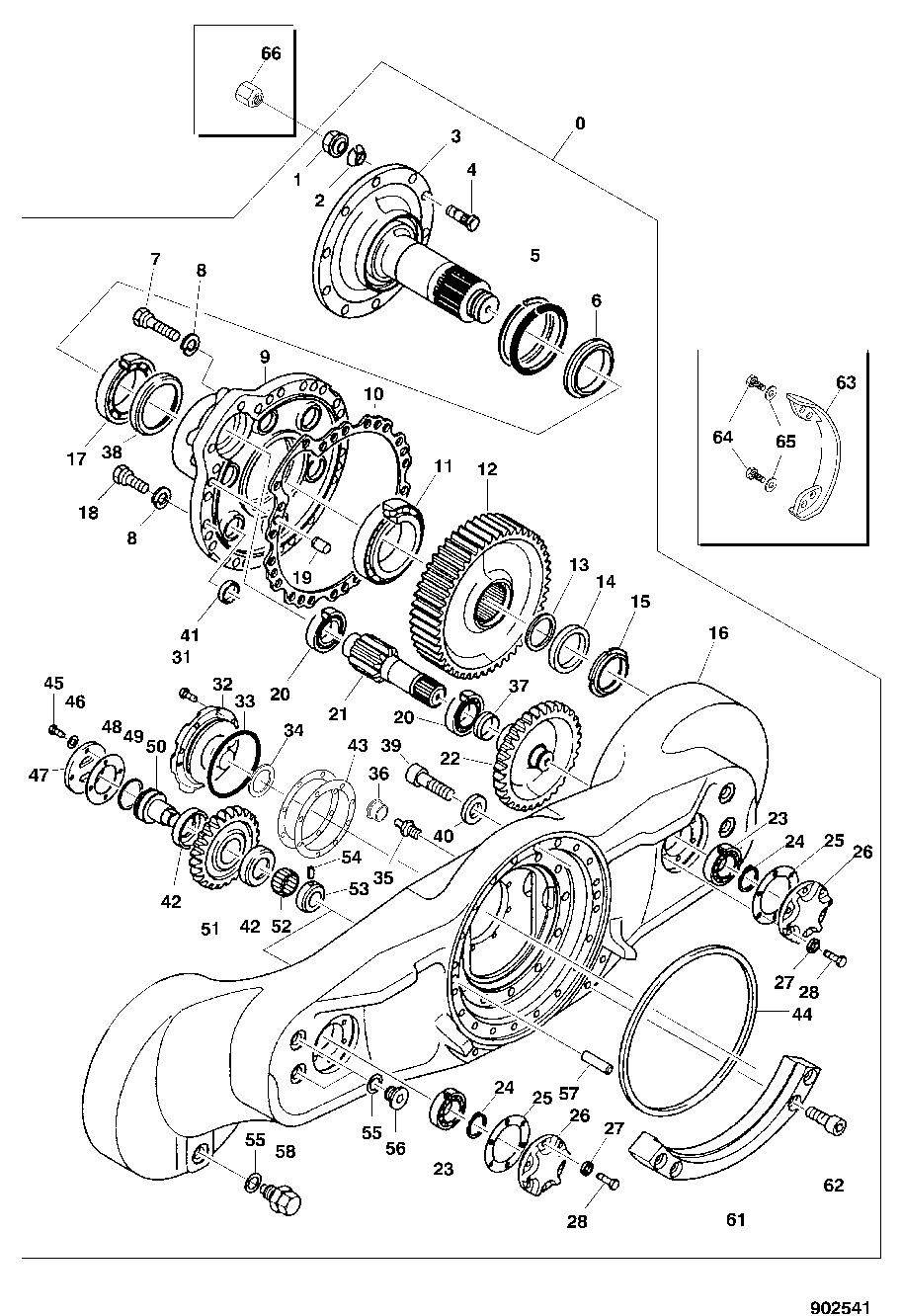

BOGGIE SHAFT AND DRIVE GEAR COMPONENTS [A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F060234	1	HOUSING	LOK 99
1	F004678	40	WHEEL NUT	-
2	F004736	40	Lock Washer	-
3	F035858	4	Hub	-
4	F025179	40	Wheel Bolt	-
5	F004721	4	Seal	-
6	F011078	4	Ring	-
7	F035810	8	SCREW	-
8	F009375	68	Washer	-
9	F045048	4	Housing	-
10	F035860	4	GASKET	-
11	F007920	4	Tapered Roller Bearing	-
12	F035861	4	GEAR	-
13	F045264	1	Shim Kit	S= 1.375 - 2.5
14	F035862	4	Sleeve	-
15	F023092	4	NUT	-
16	F054488	2	BOGIE HOUSING	-
17	F003811	4	Tapered Roller Bearing	-
18	F035864	60	SCREW	-
19	F025340	32	Pin	-
20	F036011	8	Bearing	-
21	F054497	4	SHAFT	-
22	F045044	4	GEAR	-
23	F025175	4	BEARING	-
24	F025176	4	Snap Ring	-
25	F025177	4	Gasket	-
26	F025178	4	Cap	-
27	F004734	24	Retainer	-
28	F003532	24	SCREW	-
31	F025159	16	Self-Locking Screw	-
32	F061938	2	COVER	-
33	F035868	6	O-RING	-
34	F054718	2	Seal	-
35	F003728	6	GREASE NIPPLE	-
36	F047352	6	Plug	-
37	F045335	4	Bushing	-
38	F045336	4	Cap	-
39	F025167	40	SCREW	-
40	F045337	8	WASHER	-
41	F004912	24	Cover	-
42	F045337	16	WASHER	-
43	F058123	1	SHIM KIT	S= 1.0 X 4
44	F035857	2	Seal	-
45	F011421	32	SCREW	-
46	F025363	32	Washer	-
47	F025364	8	CAP	-
48	F025365	8	GASKET	-
49	F025152	8	O-RING	-
50	F045042	8	SHAFT	-
51	F045043	8	GEAR	-
52	F025155	8	BEARING	-
53	F045040	8	SPACER RING	-
54	F025157	8	SPRING PIN	-
55	F009465	12	Sealing Ring	-
56	F009438	8	Plug	-
57	F035794	4	Dowel Pin	-
58	F010163	4	Plug	-
59	F034945	8	SCREW	-
60	F004735	8	SPRING WASHER	-
61	F045339	2	Cover	-
62	F034945	8	SCREW	-
63	F604371	1	WEAR PLATE	-
64	F003544	1	SCREW	-
65	F003170	1	WASHER	-
66	F003735	40	NUT	ALTERNATIVE TO POS 1,2

BOGGIE SHAFT AND DRIVE GEAR COMPONENTS [A20]
