Открытый узел

23 ENGINE 6-CYL./1158

23 ENGINE 6-CYL./1158

23 ENGINE 6-CYL./1158

23 ENGINE 6-CYL./1158

23 ENGINE 6-CYL./1158

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

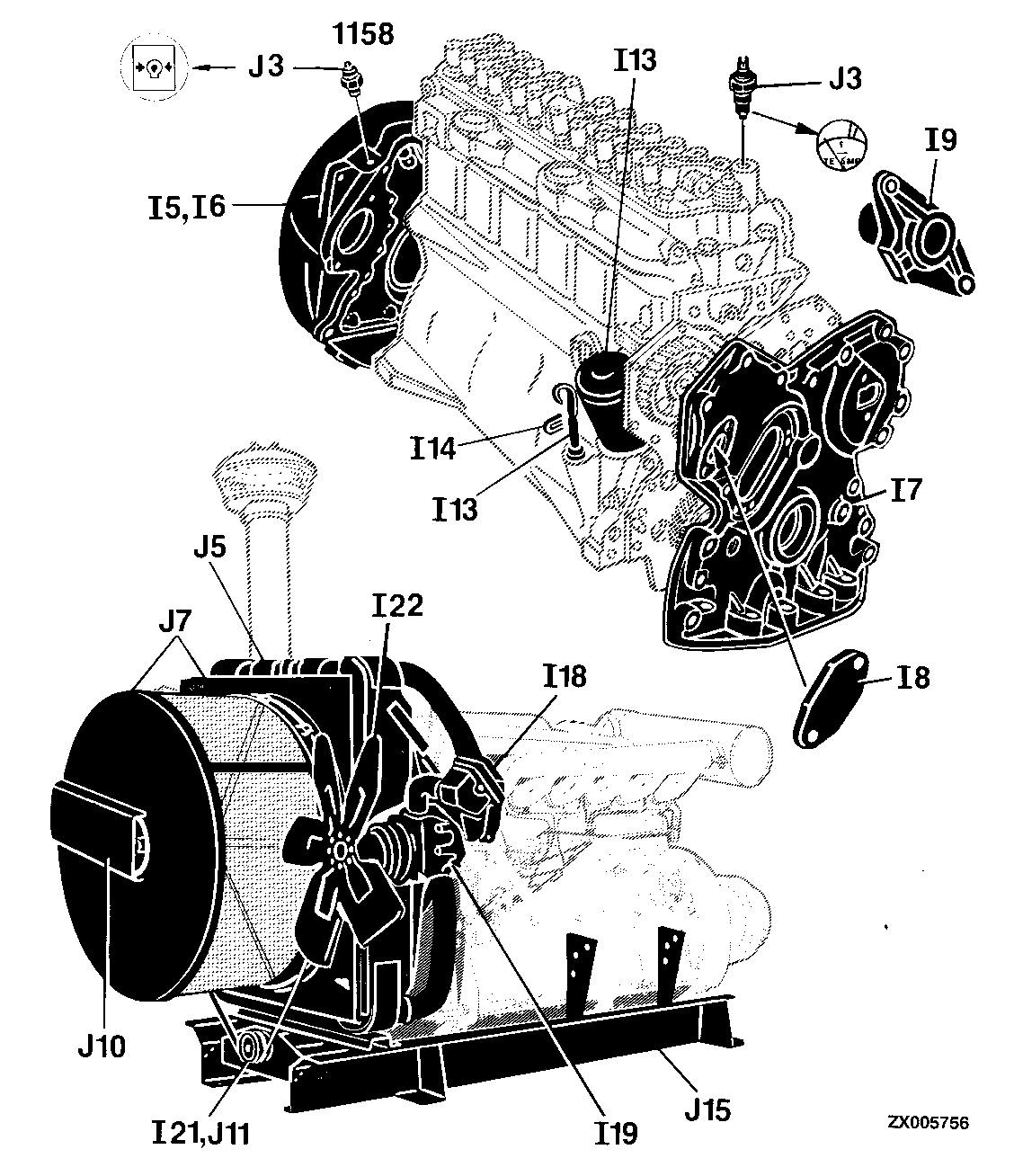

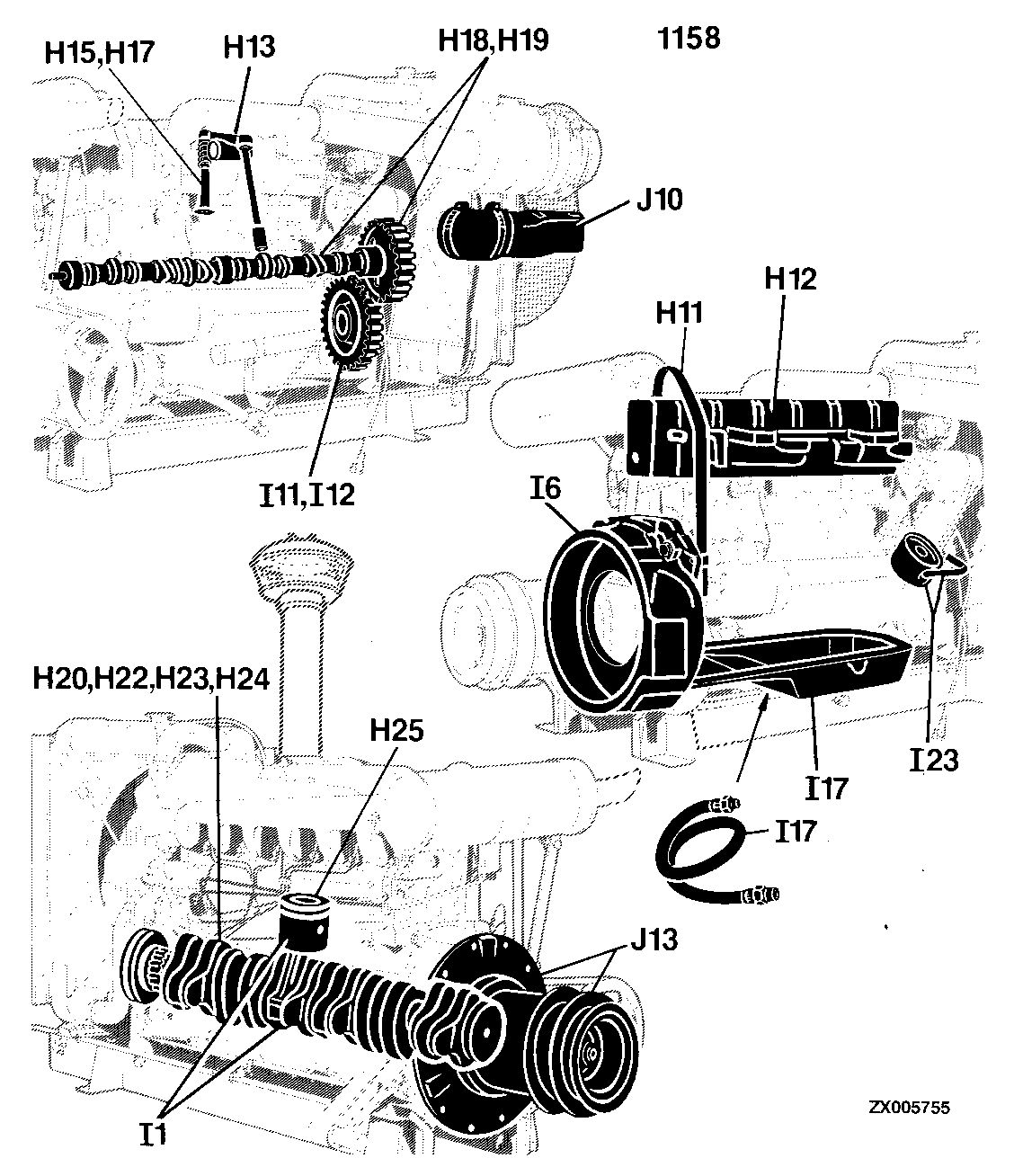

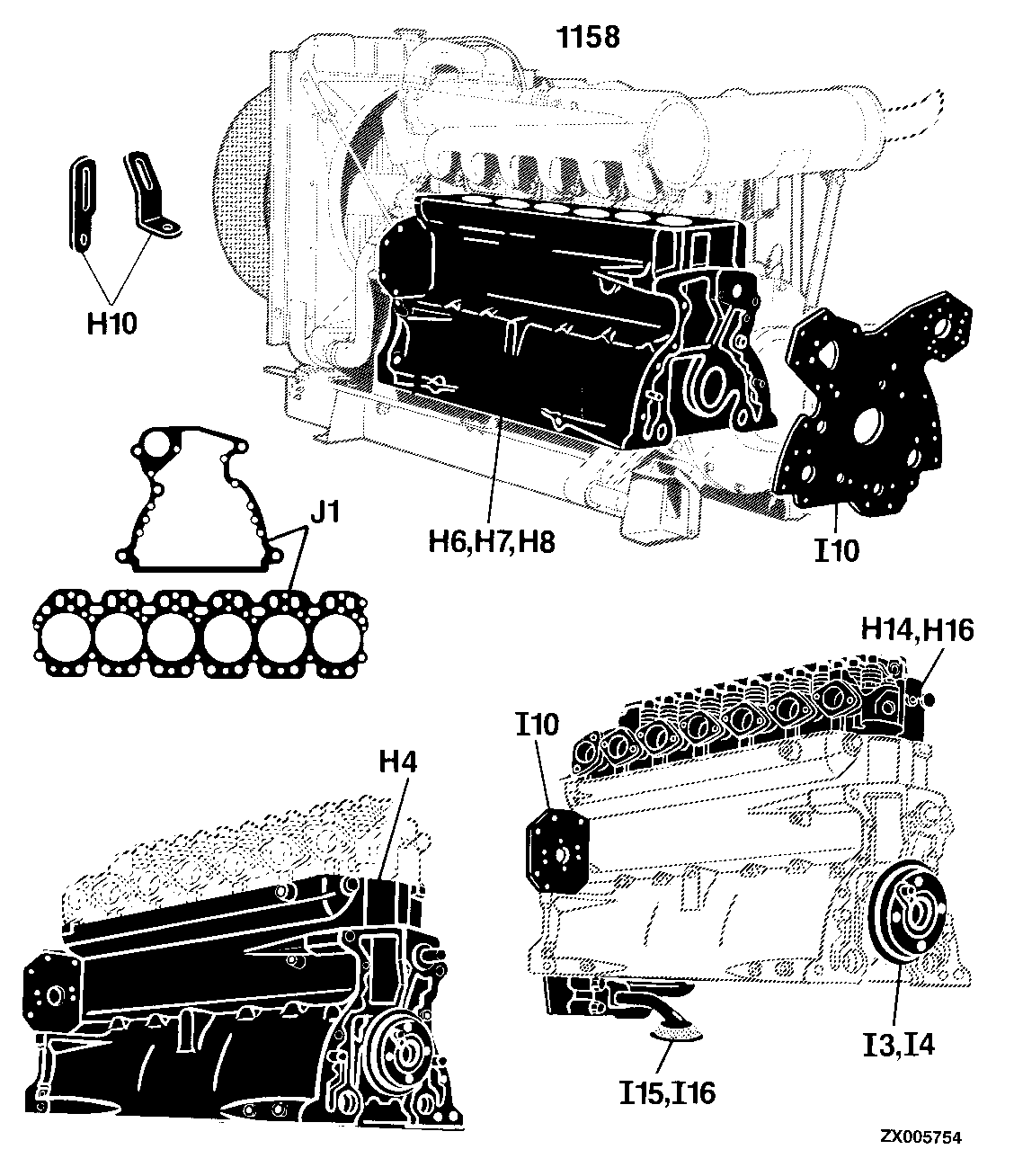

23 ENGINE 6-CYL./1158

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	PISTON/CONNECTING ROD/LINER [01I01]	-
-	-	1	FLYWHEEL [01I05]	-
-	-	1	FLYWHEEL HOUSING [01I06]	-
-	-	1	FRONT PLATE [01I10]	-
-	-	1	IDLE GEARS [01I11]	-
-	-	1	IDLE GEARS [01I12]	-
-	-	1	M E M O R A N D A [01J04]	-
-	-	1	M E M O R A N D A [01J09]	-
-	-	1	MAGNETIC PICK-UP [01I09]	-
-	-	1	OIL FILTER AND DIPSTICK [01I13]	-
-	-	1	OIL PAN [01I17]	-
-	-	1	OIL PUMP [01I15]	-
-	-	1	OIL PUMP, KIT [01I16]	-
-	-	1	FAN BELT [01I21]	-
-	-	1	RADIATOR [01J05]	-
-	-	1	ROCKER ARM COVER (SHEET METAL) [01H12]	-
-	-	1	ROCKER ARM/SHAFT/TAPPET/PUSH ROD [01H13]	-
-	-	1	ROTARY RADIATOR SCREEN [01J07]	-
-	-	1	SHACKLES [01H10]	-
-	-	1	SHORT BLOCK ASSEMBLY [01H04]	-
-	-	1	SUCTION NOZZLE [01J10]	-
-	-	1	TIMING GEAR COVER [01I07]	-
-	-	1	VALVE/VALVE SEAT/SPRING/RETAINER [01H15]	-
-	-	1	VALVE/VALVE SEAT/SPRING/RETAINER [01H17]	-
-	-	1	WATER PUMP [01I19]	-
-	-	1	CYLINDER BLOCK-FRONT R.H. [01H06]	-
-	-	1	BREATHER [01H11]	-
-	-	1	CAMSHAFT [01H18]	-
-	-	1	CAMSHAFT, KIT [01H19]	-
-	-	1	COOLANT MANIFOLD/THERMOSTAT [01I18]	-
-	-	1	COUNTERSHAFT FOR ROTARY RADIATOR SCREEN [01J11]	-
-	-	1	COVER (WITHOUT OIL FILLER NECK) [01I08]	-
-	-	1	CRANKSHAFT PULLEY [01I03]	-
-	-	1	CRANKSHAFT/BEARINGS [01H20]	-
-	-	1	CRANKSHAFT/BEARINGS [01H22]	-
-	-	1	CRANKSHAFT/BEARINGS,UNDERSIZE -0,254MM(-0.010") -KIT [01H24]	-
-	-	1	CRANKSHAFT/BEARINGS-KIT [01H23]	-
-	-	1	CYLINDER BLOCK, KIT [01H08]	-
-	-	1	AUXILIARY PULLEY PARTS [01I04]	-
-	-	1	CYLINDER BLOCK-REAR L.H. [01H07]	-
-	-	1	CYLINDER HEAD [01H14]	-
-	-	1	CYLINDER HEAD [01H16]	-
-	-	1	CYLINDERLINER AND PISTON KIT [01H25]	-
-	-	1	ENGINE GASKET SET [01J01]	-
-	-	1	ENGINE OIL COOLER/8 PLATES/INCREASED COOLING CAPACITY [01I23]	-
-	-	1	ENGINE OIL DIPSTICK FASTENING [01I14]	-
-	-	1	ENGINE PULLEY [01J13]	-
-	-	1	ENGINE SUPPORT [01J15]	-
-	-	1	ENGINE-MOUNTING PARTS [01J03]	-
-	-	1	FAN [01I22]	-
