Открытый узел

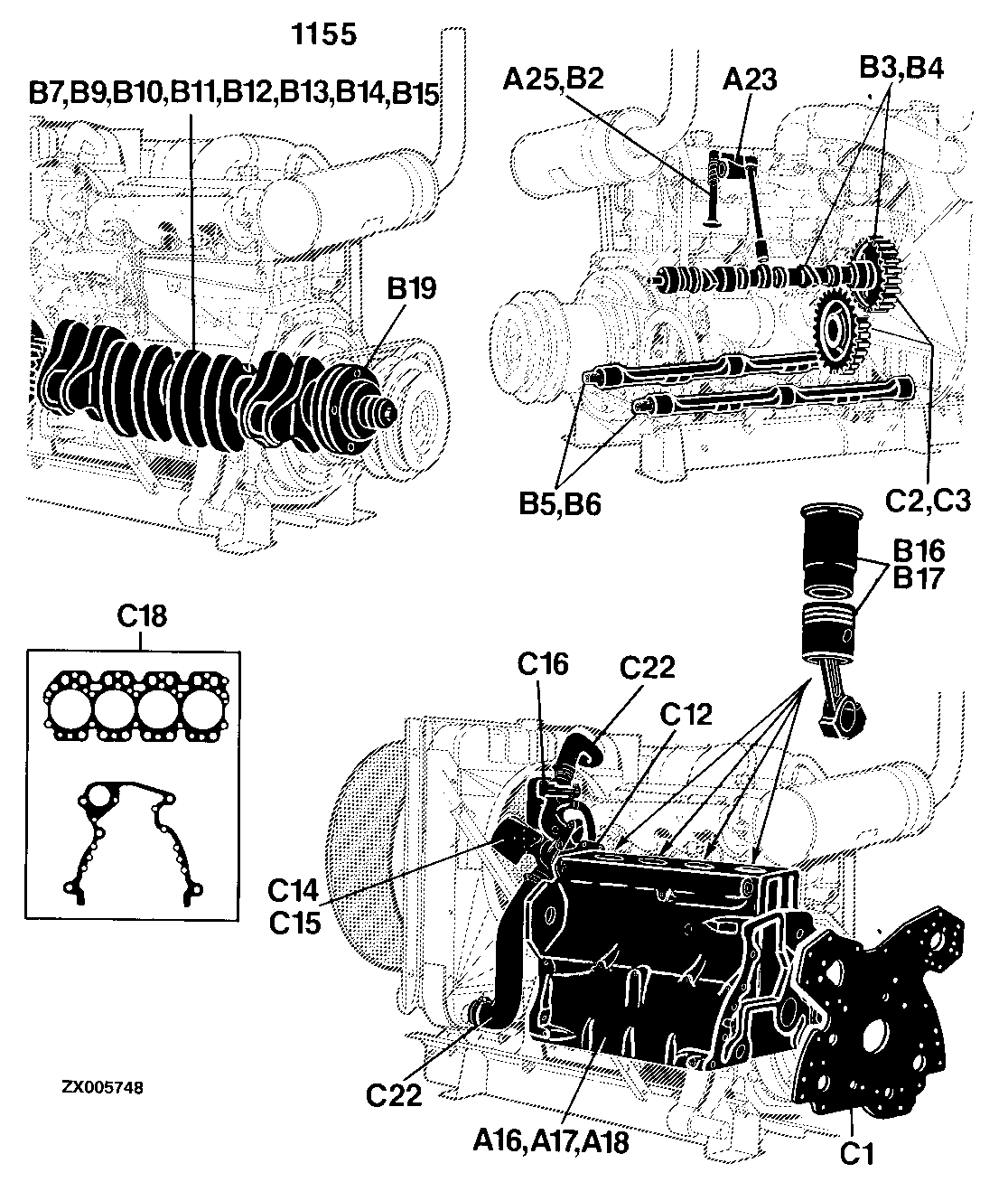

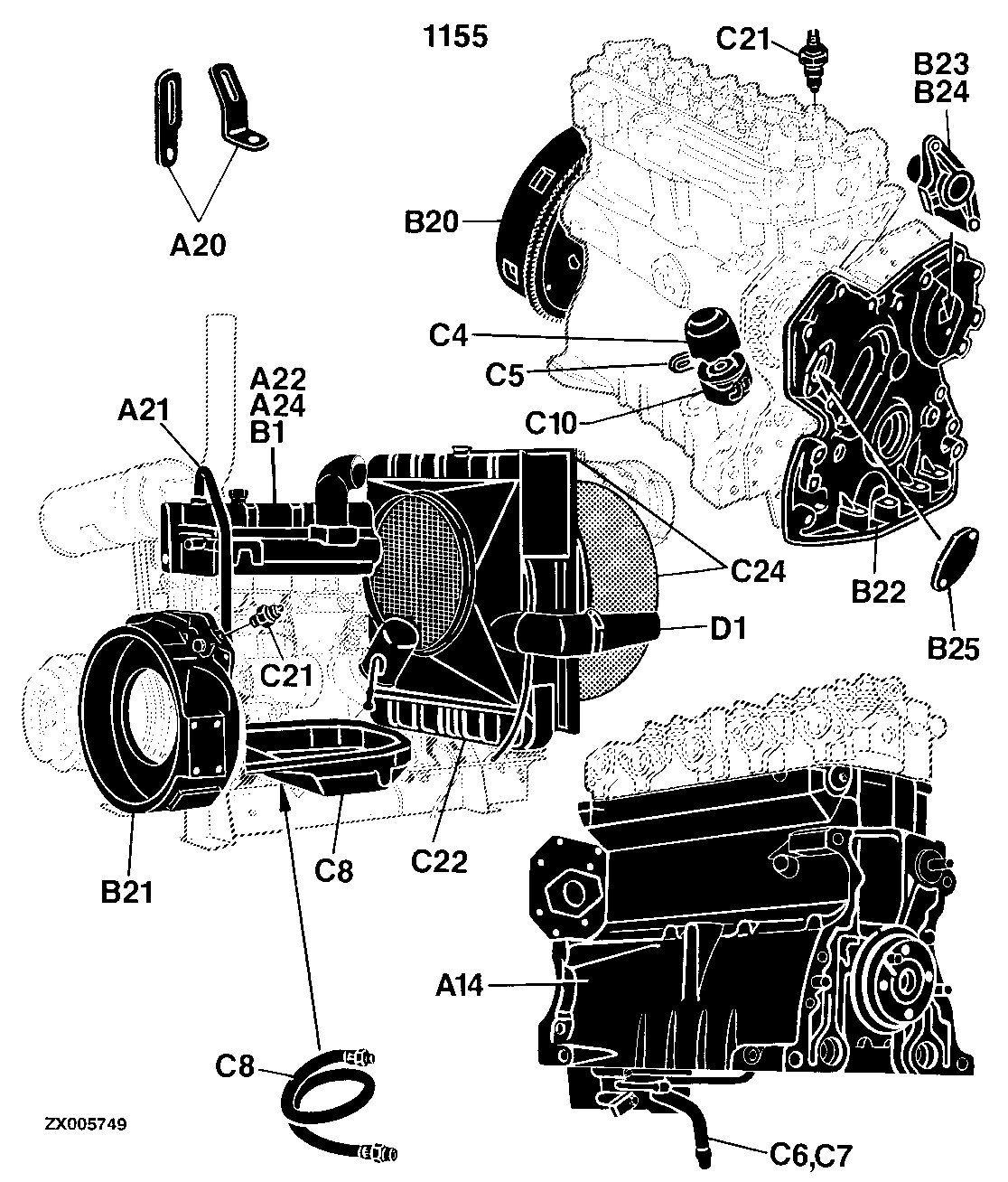

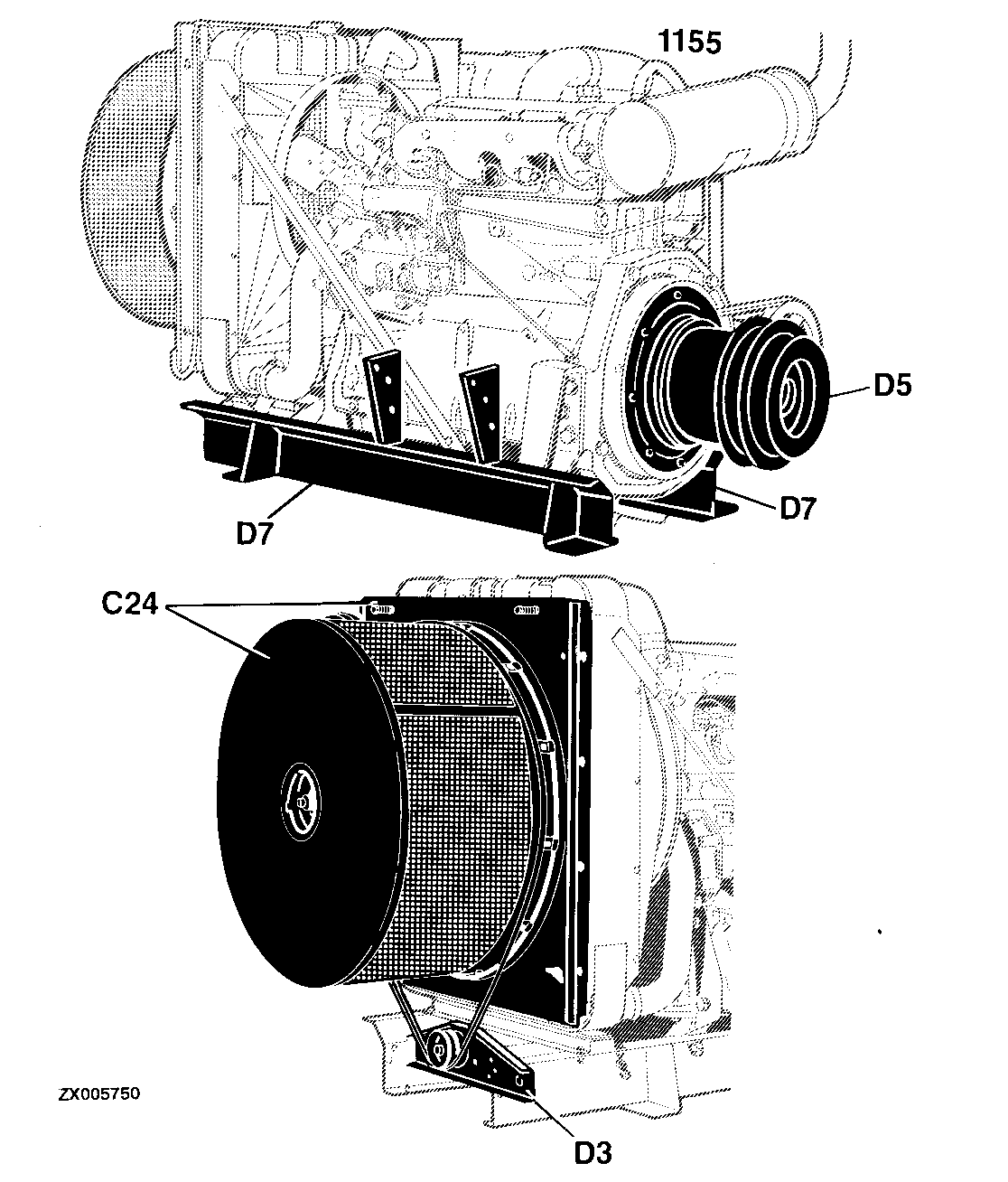

21 ENGINE 4-CYL./1155

21 ENGINE 4-CYL./1155

21 ENGINE 4-CYL./1155

21 ENGINE 4-CYL./1155

21 ENGINE 4-CYL./1155

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

21 ENGINE 4-CYL./1155

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	M E M O R A N D A [01D17]	-
-	-	1	OIL PAN [01C08]	-
-	-	1	OIL FILTER AND DIPSTICK [01C04]	-
-	-	1	MAGNETIC PICK-UP [01B24]	-
-	-	1	M E M O R A N D A [01D23]	-
-	-	1	M E M O R A N D A [01D22]	-
-	-	1	M E M O R A N D A [01D21]	-
-	-	1	M E M O R A N D A [01D20]	-
-	-	1	M E M O R A N D A [01D19]	-
-	-	1	M E M O R A N D A [01D18]	-
-	-	1	OIL PUMP [01C06]	-
-	-	1	M E M O R A N D A [01D16]	-
-	-	1	M E M O R A N D A [01D15]	-
-	-	1	M E M O R A N D A [01D14]	-
-	-	1	M E M O R A N D A [01D13]	-
-	-	1	M E M O R A N D A [01D12]	-
-	-	1	M E M O R A N D A [01D11]	-
-	-	1	M E M O R A N D A [01D10]	-
-	-	1	M E M O R A N D A [01D09]	-
-	-	1	STEEL CRANKSHAFT/BEARINGS [01B07]	-
-	-	1	WATER PUMP [01C12]	-
-	-	1	VALVE/VALVE SEAT/SPRING/RETAINER [01A25]	-
-	-	1	VALVE/ VALVE SEAT/ SPRING/ RETAINER [01B02]	-
-	-	1	TIMING GEAR COVER [01B22]	-
-	-	1	THERMOSTAT/THERMOSTAT HOUSING [01C16]	-
-	-	1	SUCTION NOZZLE [01D01]	-
-	-	1	STEEL-CRANKSHAFT FOR 0,254MM(0.010IN.)UNDERSIZE BEARINGS [01B09]	-
-	-	1	STEEL-CRANKSHAFT FOR 0,254MM(0.010 IN.)UNDERSIZE BEARINGS [01B12]	-
-	-	1	M E M O R A N D A [01D02]	-
-	-	1	SHORT BLOCK ASSEMBLY [01A14]	-
-	-	1	SHACKLES [01A20]	-
-	-	1	ROTARY RADIATOR SCREEN [01C24]	-
-	-	1	ROCKER ARM/SHAFT/TAPPET/PUSH ROD [01A23]	-
-	-	1	ROCKER ARM COVER (COMPOSITE MATERIAL) [01A22]	-
-	-	1	RADIATOR [01C22]	-
-	-	1	PISTON/CONNECTING ROD/LINER [01B17]	-
-	-	1	OIL PUMP, KIT [01C07]	-
-	-	1	COVER (WITHOUT MAGNETIC PICK UP) [01B23]	-
-	-	1	CYLINDER HEAD [01B01]	-
-	-	1	CYLINDER HEAD [01A24]	-
-	-	1	CYLINDER BLOCK-REAR L.H. [01A17]	-
-	-	1	CYLINDER BLOCK-FRONT R.H. [01A16]	-
-	-	1	CYLINDER BLOCK, KIT [01A18]	-
-	-	1	CRANKSHAFT PULLEY [01B19]	-
-	-	1	CRANKSHAFT (STEEL)/ BEARINGS-KIT [01B11]	-
-	-	1	CRANKSHAFT (STEEL)/ BEARINGS [01B10]	-
-	-	1	COVER (WITHOUT OIL FILLER NECK) [01B25]	-
-	-	1	CYLINDERLINER AND PISTON-KIT [01B16]	-
-	-	1	COUNTERSHAFT FOR ROTARY RADIATOR SCREEN [01D03]	-
-	-	1	CAST IRON CRANKSHAFT/BEARINGS-KIT [01B14]	-
-	-	1	CAST IRON CRANKSHAFT/BEARINGS [01B13]	-
-	-	1	CAST IRON CRANKSHAFT/BEARING, UNDERSIZED -0.254MM(-0.01")-KIT [01B15]	-
-	-	1	CAMSHAFT, KIT [01B04]	-
-	-	1	CAMSHAFT [01B03]	-
-	-	1	BREATHER [01A21]	-
-	-	1	BALANCER SHAFT, KIT [01B06]	-
-	-	1	FLYWHEEL [01B20]	-
-	-	1	M E M O R A N D A [01C20]	-
-	-	1	M E M O R A N D A [01C17]	-
-	-	1	M E M O R A N D A [01C09]	-
-	-	1	M E M O R A N D A [01A13]	-
-	-	1	IDLE GEARS [01C03]	-
-	-	1	IDLE GEARS [01C02]	-
-	-	1	FRONT PLATE [01C01]	-
-	-	1	FLYWHEEL HOUSING [01B21]	-
-	-	1	BALANCER SHAFT [01B05]	-
-	-	1	FAN BELT [01C14]	-
-	-	1	FAN [01C15]	-
-	-	1	ENGINE-MOUNTING PARTS [01C21]	-
-	-	1	ENGINE SUPPORT [01D07]	-
-	-	1	ENGINE PULLEY [01D05]	-
-	-	1	ENGINE OIL DIPSTICK FASTENING [01C05]	-
-	-	1	ENGINE OIL COOLER/6 PLATES/INCREASED COOLING CAPACITY [01C10]	-
-	-	1	ENGINE GASKET SET [01C18]	-
