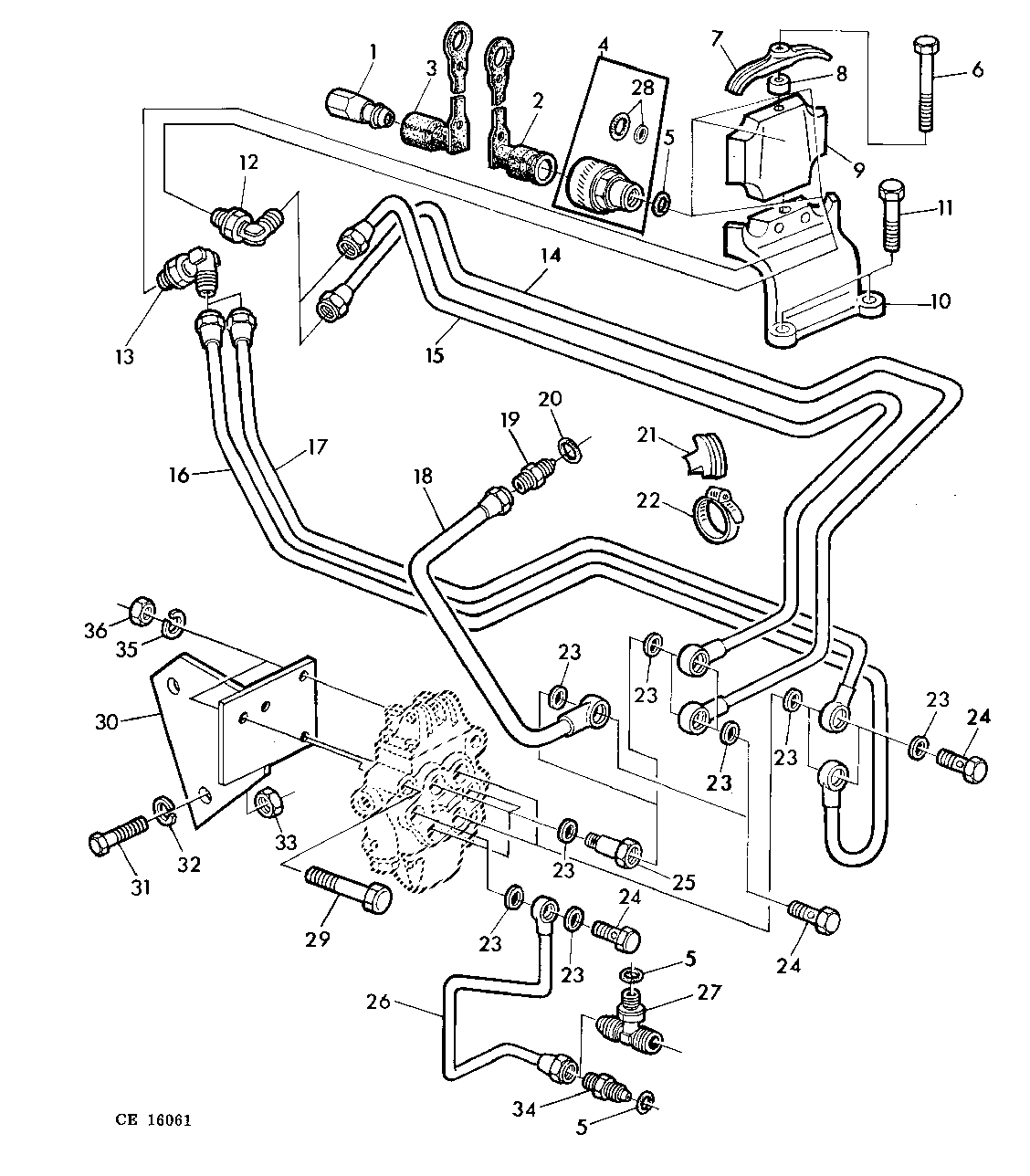

ELEMENTS FOR QUICK COUPLER,SELECTIVE CONTROL VALVE [02D08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DE12890	1	HYD. QUICK-CONNECT COUPLER	-
2	CE13533	1	PLUG	-
3	CE13534	1	PLUG	-
4	DE12889	1	EXTERNAL HALF COUPLER	-
5	R26375	1	O-Ring	-
6	19M7295	1	Cap Screw	8X45MM
6	19M2860	1	CAP SCREW	(A) 8X95MM
7	CE13876	1	FLANGE	-
8	R60745	1	SPACER	-
9	CE13877	1	SPACER	(A)
10	CE13875	1	BRACKET	-
11	19H1805	2	CAP SCREW	1/2"X2-1/4"
12	AR26745	1	ELBOW FITTING	-
13	AR26763	1	ELBOW FITTING	-
14	DE13845	1	TUBE	(A)
15	DE13844	1	OIL LINE	(A)
16	DE14854	1	OIL LINE	(SUB FOR DE14642)
17	DE14855	1	OIL LINE	(SUB FOR DE14644)
18	DE14641	1	OIL LINE	-
19	R31665	1	Fitting	-
20	R26906	1	O-Ring	-
21	T31431	1	SPACER	(A)
22	AT18904	1	Clamp	(A) (SUB FOR DE14850)
23	CE13532	1	GASKET	-
24	CE13531	1	ELBOW FITTING	-
25	CE13705	1	SHIM	-
26	DE14647	1	OIL LINE	-
26	DE13853	1	OIL LINE	(A)
26	DE13851	1	OIL LINE	(A) (B)
26	DE14649	1	OIL LINE	(B)
27	AL30020	1	TEE FITTING	(B)
28	DE16041	1	KIT	-
28	DE14298	1	KIT	(C)
29	19M7270	1	Cap Screw	8X65MM
30	DE14643	1	BRACKET	-
31	19H1974	2	Cap Screw	1/2"X2-3/4"
32	12H304	2	Lock Washer	3/8"
33	14H812	2	NUT	3/8"
34	R27237	1	Fitting	-
35	12M1625	1	LOCK WASHER	8MM
36	14M3244	1	NUT	8MM
